Max Light Bellatrix H0112 Black Dimmable LED Module 9 W 3000 K

Bellatrix H0112 LED module for recessed fittings

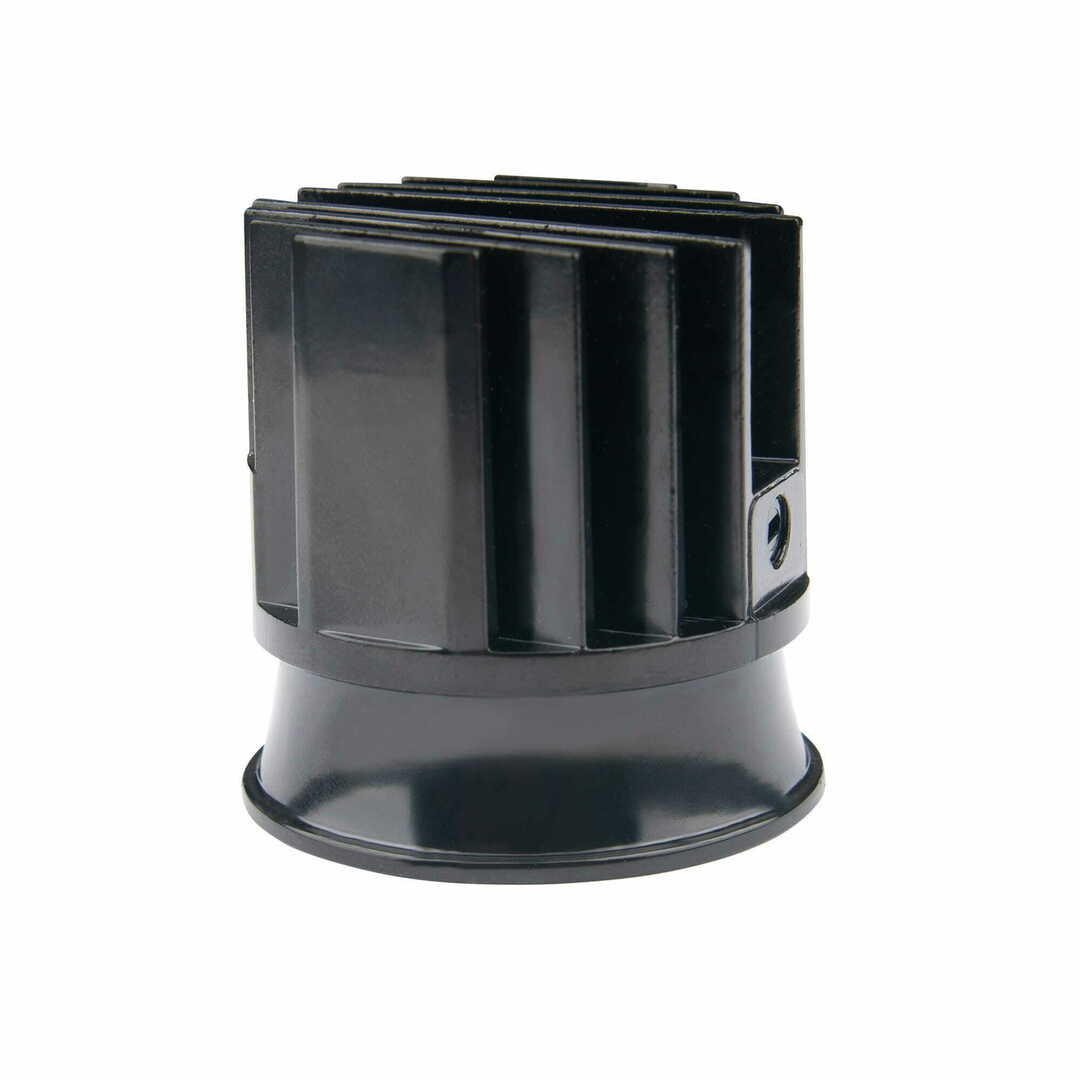

Max Light Bellatrix H0112 is a black LED light module made for the Bellatrix recessed-fitting system. It is not a complete ceiling fitting on its own: a compatible housing is required for installation. The manufacturer lists H0113, H0114, H0115, H0116, H0117 and H0118 as fittings used with this module. This distinction matters when planning a set, because H0112 provides the light while the chosen fitting determines the visible finish and the way it is set into the ceiling.

Light output and control

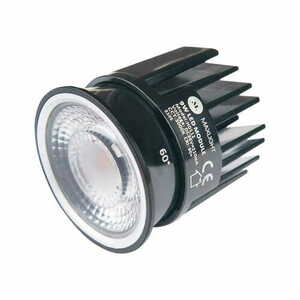

The integrated 9 W LED delivers 850 lm of warm 3000 K light. A CRI rating of 90+ supports faithful rendering of colours in furnishings and finishes, while the included 60° lens forms a defined, practical beam. The module is supplied with an LED driver and is described by the manufacturer as TRIAC dimmable. A wall dimmer is not included with the product, so it should be considered separately when planning the installation.

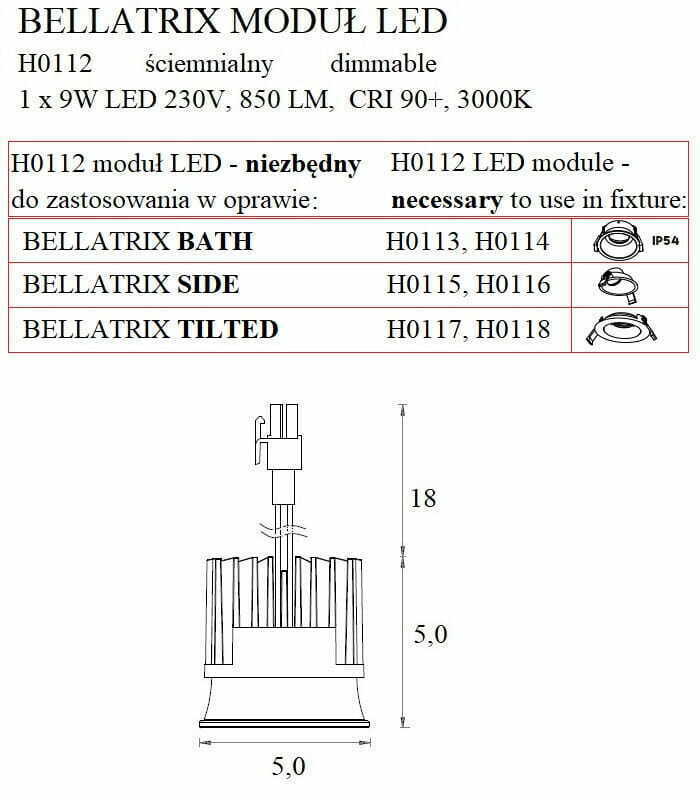

Technical details

• diameter: 5 cm;
• height: 5 cm;
• finish: black;
• material: metal;
• supply: 230 V;
• protection rating: IP20.

Completing the Bellatrix set

H0112 is a sensible choice where a compact recessed-light solution is needed and the housing is selected separately to suit the ceiling design. Before ordering, pair it with one of the compatible Bellatrix fittings and arrange installation by a qualified person. The recessed fitting itself and a wall dimmer are not supplied in the box, so include them separately if they are part of the intended project.
