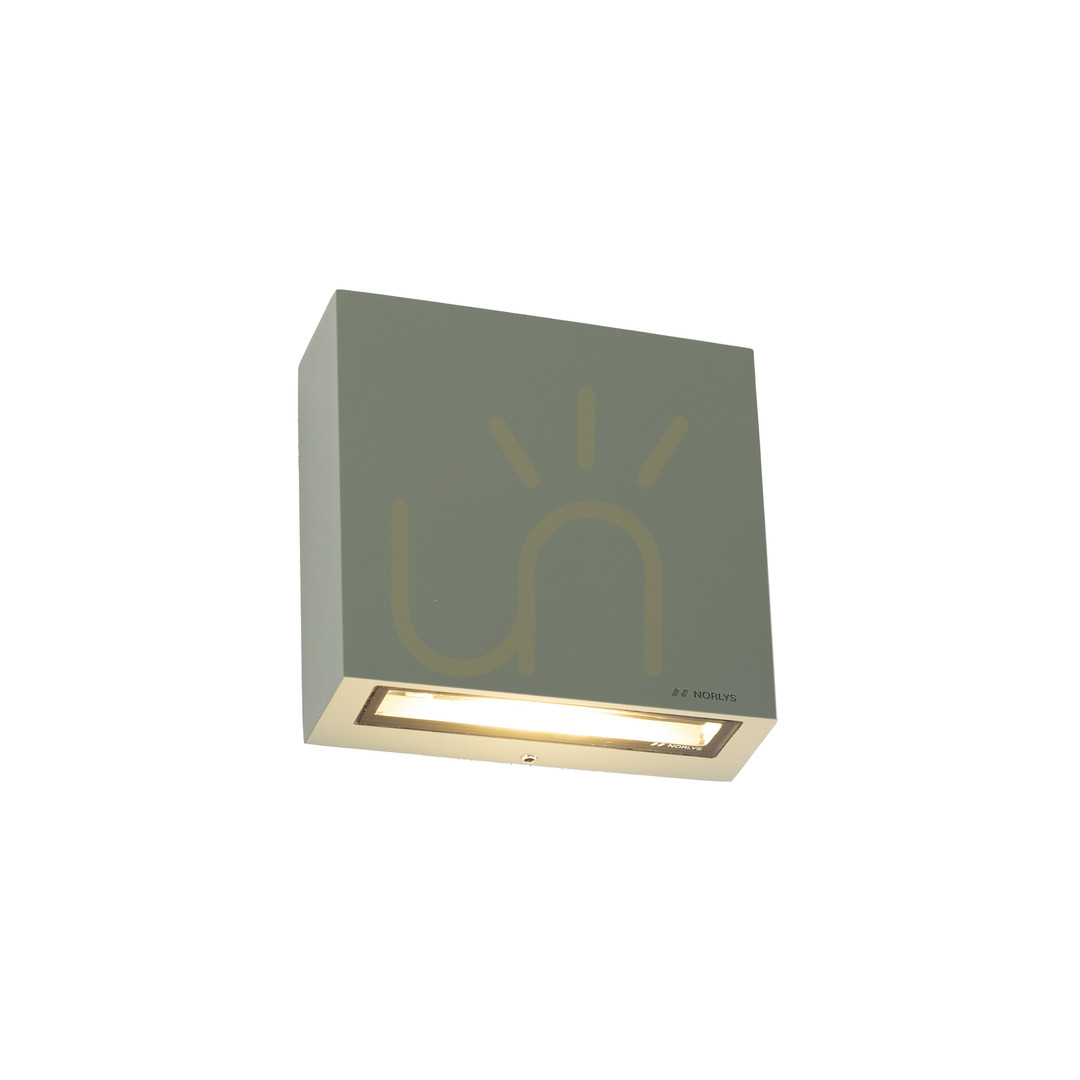

NORLYS Nora 2467CG is a square outdoor wall light combining satin safety glass with a powder-coated aluminium body. The CG version is cement grey RAL 7033, not a patinated finish. Its front measures 13 × 13 cm and the body is 5 cm deep, giving you clear dimensions to compare with the intended wall position before installation.
Diffused light above and below
Two LED modules emit upwards and downwards through the satin glass. This arrangement is intended for illuminating wall surfaces and façades rather than producing a narrow, adjustable spotlight beam. The shallow geometric body, without decorative framing, supports modern, minimalist and Scandinavian architectural schemes.
The 3000 K colour temperature gives warm-white light. Total luminaire output is 475 lm, with a power consumption of 10.3 W. When planning the spacing between fittings, account for the two-way distribution instead of treating the entire output as light directed only towards the ground. Manufacturer photometric files are available for a more detailed lighting calculation.
DALI2/TD control and serviceable components
The LED sources and electronic driver are included within the fitting. Control uses DALI2/TD, so the control arrangement needs to match the electrical installation; compatibility with an arbitrary conventional wall dimmer should not be assumed. Both the LED modules and control gear can be replaced by a professional service technician, rather than through a normal screw-in bulb change.
Installing on an exterior wall
An IP65 rating and an operating range of −20 to +45°C support use on façades and terrace or balcony walls. Mounting requires two 5 mm holes with a spacing of 63 × 112 mm. The instructions specify a cable with an outside diameter of 7–10.5 mm and correct passage through the gasket. Fixing plugs are not included. Connection to the 220–240 V supply and subsequent maintenance must be undertaken by an appropriately qualified person.
