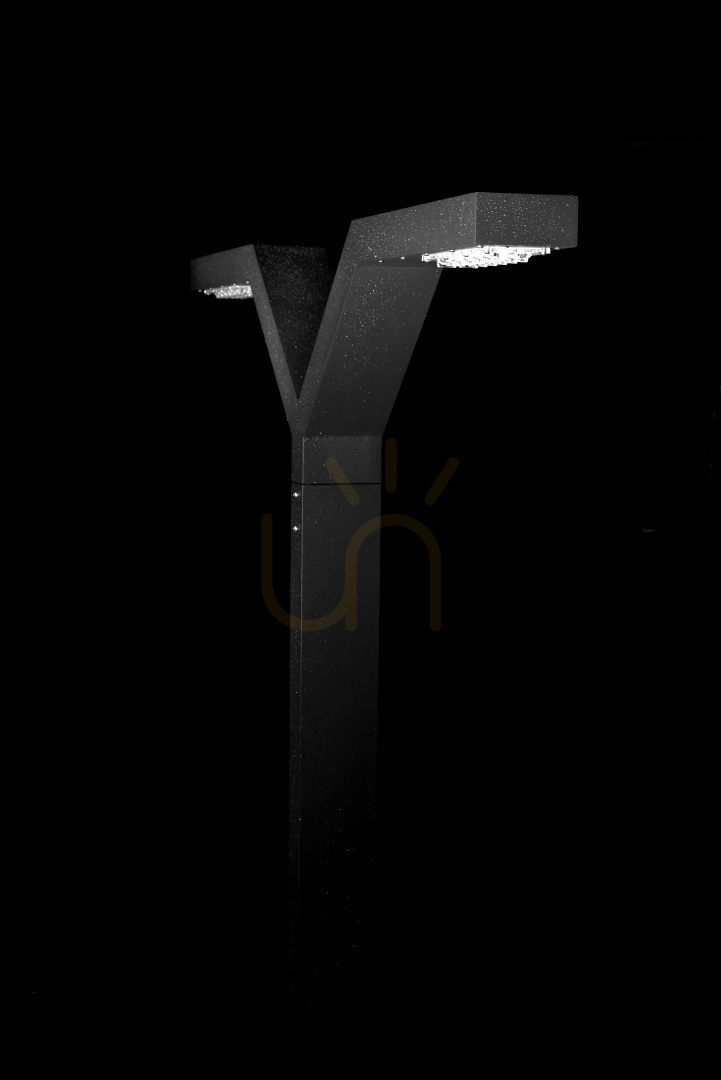

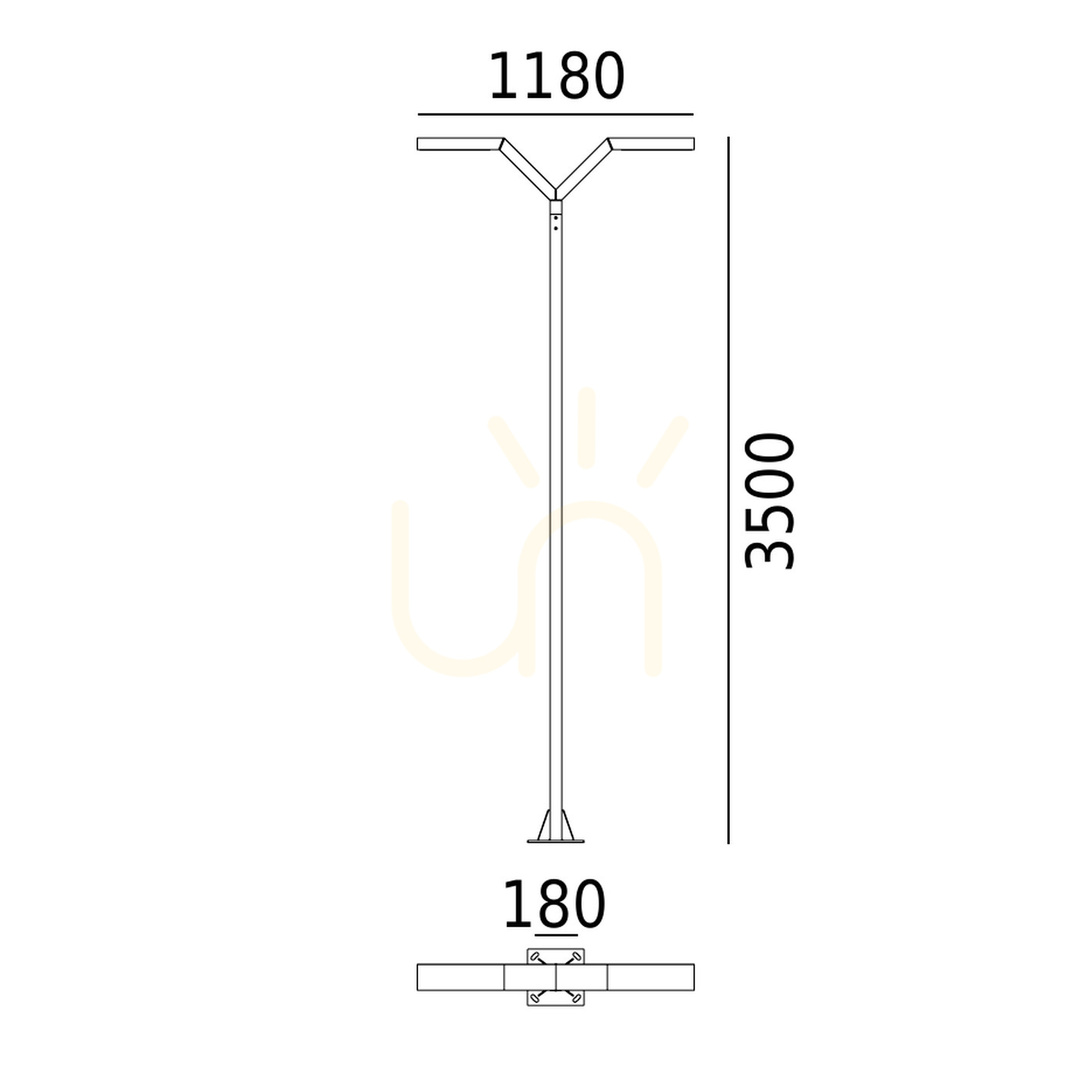

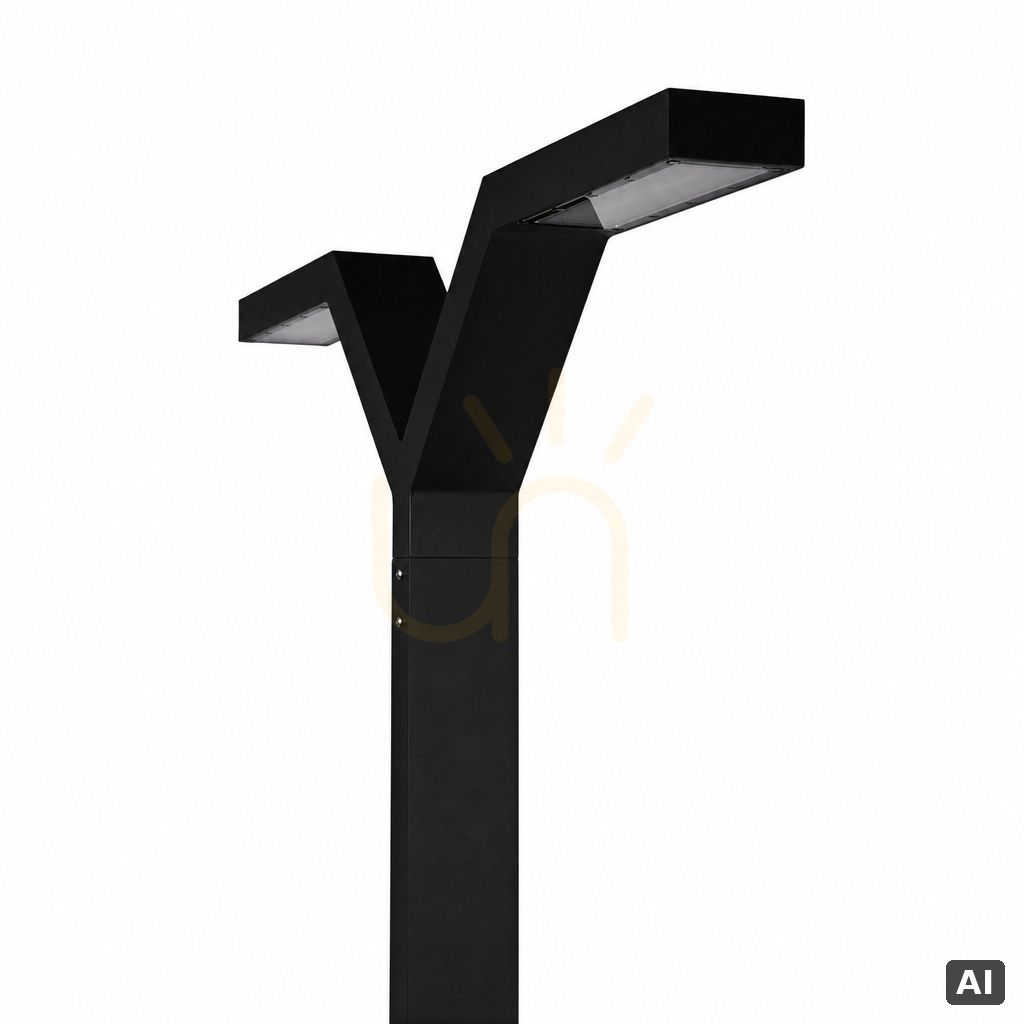

NORLYS Trysil 1027BL is a tall black pole luminaire for exterior lighting. It measures 350 cm high, 118 cm long and 24 cm wide, so its dimensions should be compared with the intended installation zone before purchase. The slim profile divides into two arms at the top, while the light is diffuse and directed downward in a hemispherical distribution.
Light and control
The fitting has four LED modules with a 4000 K colour temperature and a luminaire luminous flux of 4145 lm. Luminaire wattage is 40 W and light-source wattage is 34.8 W. Its electronic DALI power supply permits control in a DALI system, which should be considered when planning the controls. NORLYS specifies CRI 80 and SDCM3 colour consistency. The LED source and control gear are replaceable by a qualified professional.
Exterior construction
The body is an extruded aluminium profile, powder coated black RAL 9005. Its transparent structured polycarbonate diffuser is UV stabilised, and a silicone gasket forms part of the construction. IP65 protection and IK10 impact resistance support its use in a garden, park, terrace or driveway. The stated ambient operating range is −20 to +45°C.
Installation and scale

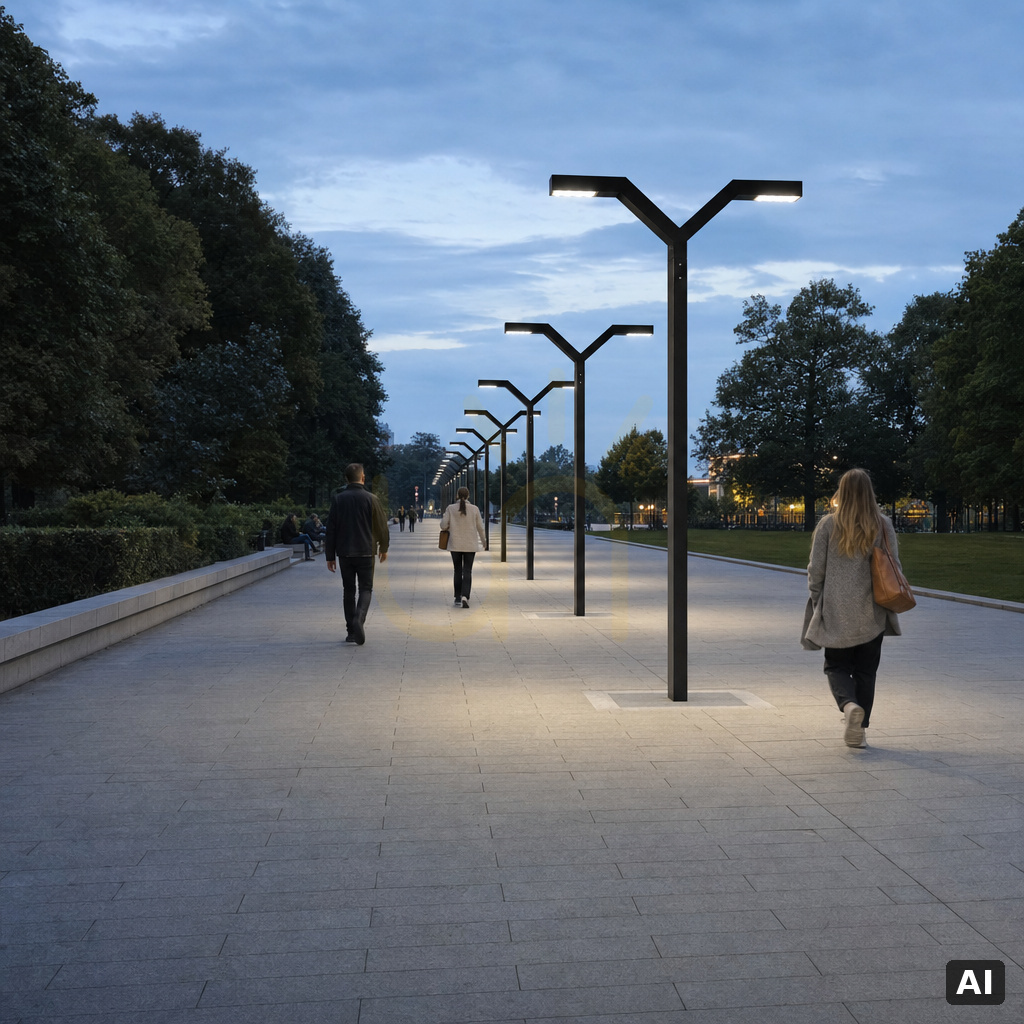

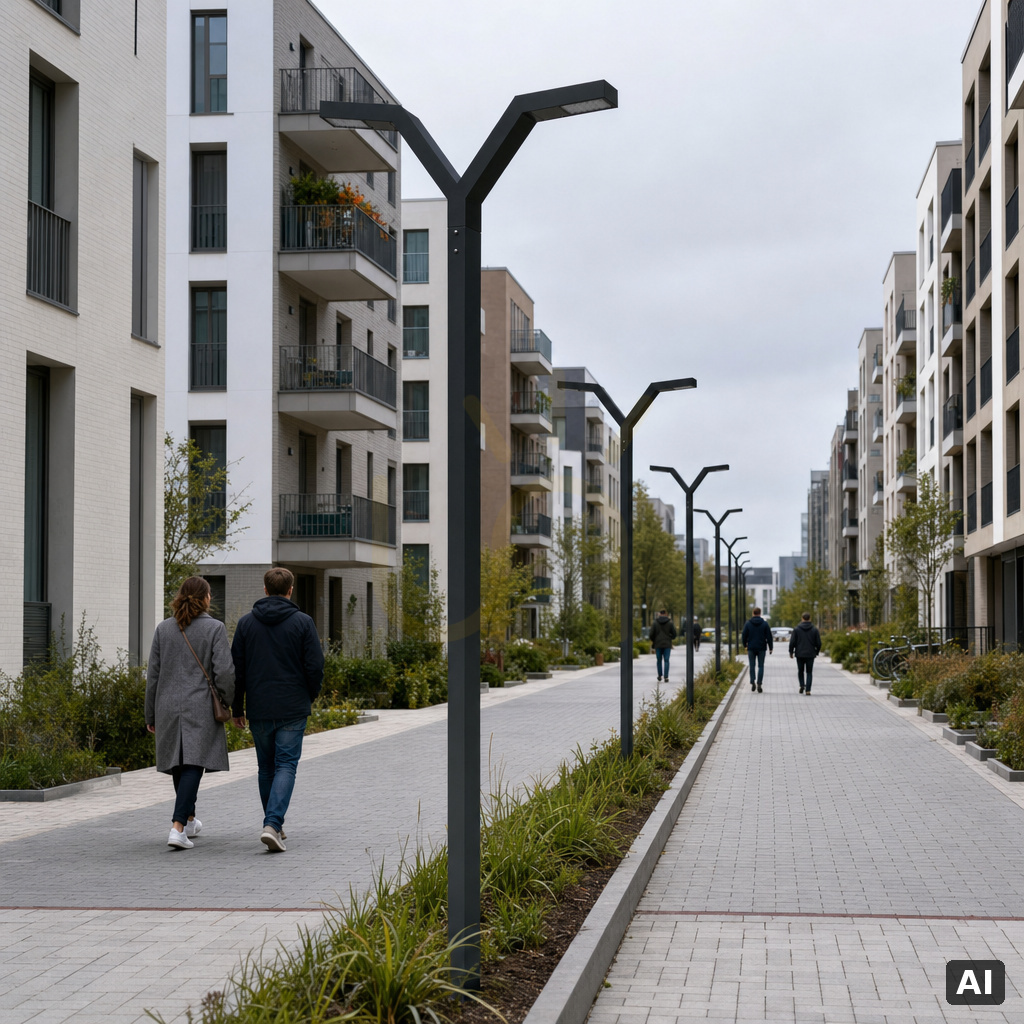

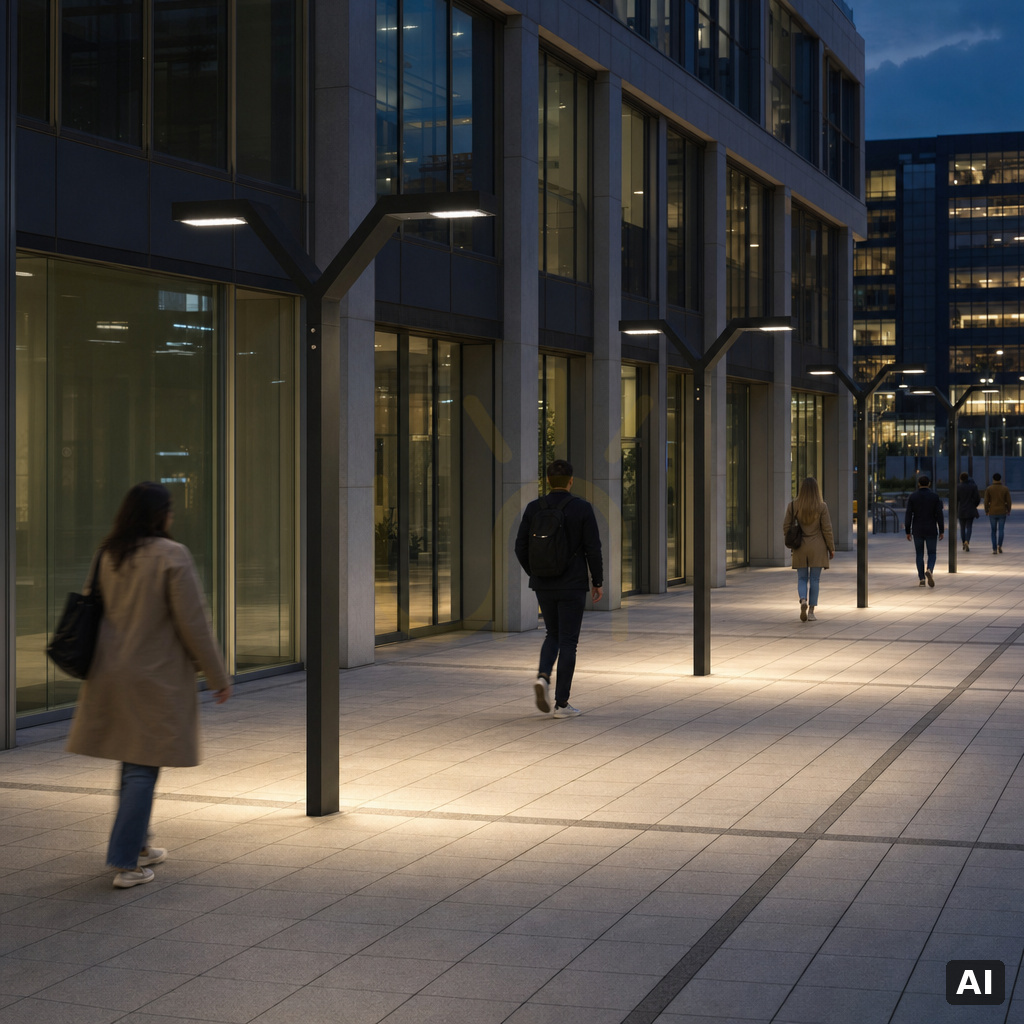

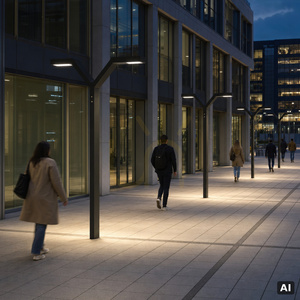

NORLYS specifies installation in accordance with the supplied instructions; installation and service work should be undertaken by an appropriately qualified person. Net weight is 25.7 kg and gross weight is 28.3 kg. Other accessories must be purchased separately. Trysil 1027BL is intended where a tall exterior fitting is needed for pedestrian routes or open architectural areas.
