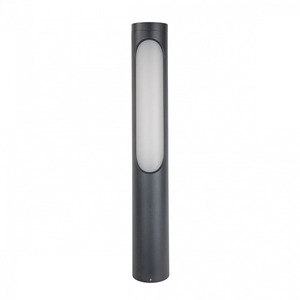

The Kisa 5182AL is an 85 cm NORLYS bollard: a 12 cm diameter cylinder of cast aluminium, powder-coated light grey (RAL 9006). A tall, rounded window of satin PMMA runs down one side of the body, with three LED strips behind it, so the bollard gives diffuse light in one direction.
How much light it gives
The luminaire draws 14.1 W and delivers 1185 lm, or 84 lm/W. 3000 K is a warm white, CRI 80 renders the colours of plants and paving correctly, and SDCM3 keeps several bollards in one row in the same shade.
The window shines sideways rather than down, which is why ULOR is 50% and the BUG rating is B1-U3-G1: half the output travels above the horizontal plane. The light source has energy efficiency class D.
DALI2 control and servicing
The bollard runs on an outdoor DALI driver programmed to maximum current. Dimming and light scenes need a DALI controller in the installation, and Norlys programmes the NightDim function and the other driver parameters by arrangement with its sales department.
The driver is rated for 100,000 h, and the modules keep 80% of their output for over 72,000 h (L80B20) and 90% for over 64,000 h (L90B10). LED modules and control gear are replaced by a professional service using repair kit ZS5182zx0009.
Installation and durability
The bollard weighs 5.81 kg and is bolted down through three ø9 mm holes set 120° apart on a ø65 mm circle. The fixing parts are bought separately: concrete-in anchor 205ZX0010, ground anchor 206GA0010, concrete foundation adapter 206GA0S10, or mounting adapters 3080GA0009 and 3086GA0009. The terminals take conductors up to 5 × 4 mm², and looping through with up to 5 × 2.5 mm² lets further bollards run from one supply line on cable 8–12.5 mm in diameter. Protection class I requires the protective earth to be connected.
IP55 protects the luminaire against dust and water jets, and IK08 against knocks, which happen more often beside a path than on a wall. The bollard works from −20 to +45 °C. Norlys designed Kisa for gardens, private grounds and public areas, for example in front of a hotel or restaurant; the smooth, unornamented body is modern and minimalist. Made to order, it is also available as a phase-dimmable version, in 2700 K, with a different output or in another RAL colour.
