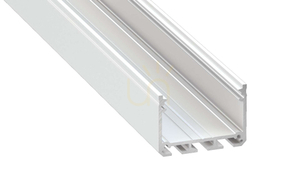

LED profile LUMINES type ILEDO white lacquered 1 m

Architectural profile LUMINES type iLEDO for use on the surface and as an element of pendant lighting.Thanks to its compatibility with the MODI mounting profile, it provides the opportunity to aesthetically install the power supply.

<iframe frameborder="0" height="500" src="https://www.youtube.com/embed/LwTbMTe67po" title="Installation of LED strip in aluminum profile "iLEDO"". LED profile installation. Lumines LED Lighting." width="100%">

Color varieties:
- silver anodized profile,
- white lacquered profile (RAL9016),
- black lacquered profile (RAL9005 matte).

Mounting method:
- double-sided tape,
- fixing springs,

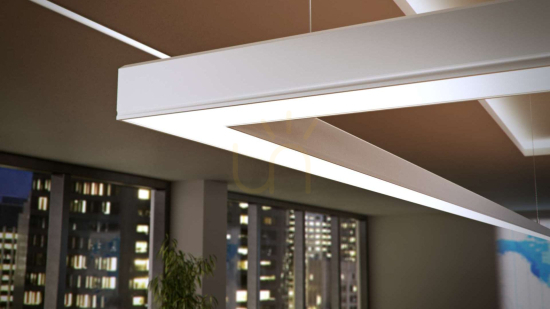

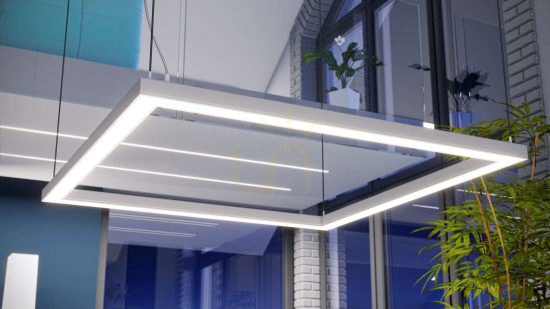

- slings (as pendant lighting),
- mounting brackets

GLASSES (shutters):
- WIDE
* transparent (PVC/PMMA/PC),
* frosted (PVC/PMMA/PC),
* frosted milky (PVC/PMMA/PC),
* frosted milky (PMMA).
- PRISMATIC PC
* transparent (PC)
Press-mounted from the top of the profile.
- diffuser LUMINES raster WIDE

CAPS:
- aluminum or plastic, with or without hole in 4 color versions (white, silver, gray, black)

ADDITIONAL ACCESSORIES:
- straight connector,
- 90° angle connector,
- cross angle connector,
- 120° angle connector,
- MODI mounting profile,
- mounting springs,
- slings,
- ILEDO metal bracket

Profiles available in sections: 1000 mm, 2020 mm, 3000 mm.
Possibility to purchase longer sections after contacting the service office.

Installation instructions for ILEDO profile with WIDE diffuser using mounting screw.

The final result of the installation of ILEDO profile with WIDE lampshade with a mounting screw

Joining ILEDO profile in vertical plane at 90° angle

Joining ILEDO profiles in a horizontal plane at a 90° angle

Possibility of hiding the power supply in the ILEDO profile using the MODI mounting profile

Schematic diagram of assembling lighting system components using ILEDO profile and (1) WIDE diffuser, (2) three LED strips, (3) cap without hole, (3a) cap with hole, (4) mounting screw, (5) cap mounting screws
