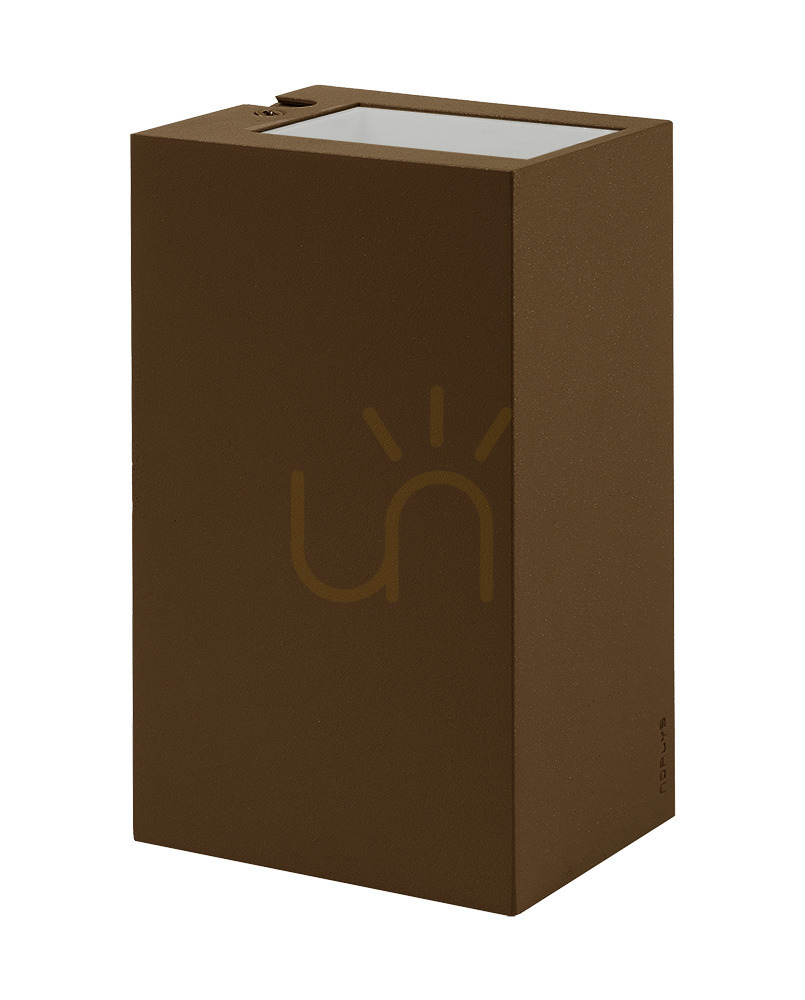

NORLYS Lillehammer DC2296CS is an outdoor LED wall light with a rectangular body, a closed front and upward-only light emission. The CS finish is a corten-steel colour, approximately RAL 8011, applied to a powder-coated aluminium housing. The distinction matters when coordinating exterior materials: this is a corten-coloured finish, not a body made from weathering steel.
An upward beam for the façade
This DC2296 version sends its light upwards through a 60° beam. It can highlight a wall surface or a section of façade, including a wall beside a terrace or balcony. It is not an up-and-down light, so a lighting plan that also needs illumination below the fitting must provide that separately.
The 3.6 W LED module produces warm-white light at 2700 K. Output from the complete luminaire is 109 lm, which should not be confused with the LED source's own luminous flux. Clear safety glass covers the light opening. Straight edges and the absence of ornamental arms make the compact body appropriate for modern, minimalist and Scandinavian architectural settings.
Plan for a 24 V DC power supply
The light requires an external constant-voltage 24 V DC power supply. It must not be connected directly to a 230 V mains circuit. Its LED module supports dimming; the control arrangement needs to suit the low-voltage installation. The light source is replaceable by a professional service technician rather than by changing a conventional user-replaceable bulb.
Check the wall space before installation
The housing measures 18.5 cm high, 8 cm wide and 11 cm deep. Compare these dimensions with the available wall area and leave the upward lighting direction in mind when positioning it. Mounting uses two 5 mm holes with a 45 × 130 mm spacing. The fitting has IP65 ingress protection, IK08 impact resistance and electrical protection class III. Installation and light-source replacement should be carried out by a suitably qualified person following the manufacturer's instructions.
