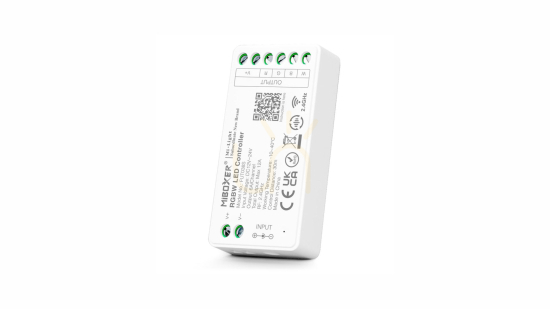

MiBoxer CONTROLLER 12-24V 12A RF RGB+W V2.1 FUT038S-V2.1

The MiBOXER receiver in combination with the MiBOXER remote control are products with an interesting and remarkable mode of operation. The connection between the receiver and the remote control is made by means of radio waves with a frequency of 2.4GHz. The receiver can be installed at any stage of LED strip installation, as it is mounted between the power supply and the strip.

Diagram of the connection of the LED power supply, driver and LED tape

Receiver for RGBW strips. The receiver can be paired with a MiBOXER series remote control or, when paired with a Wi-Fi gateway, expand the receiver's capabilities to include app-based or voice control.

The receiver allows control using apps and voice assistants. This requires pairing with a Wi-Fi gateway (sold separately). Use the app to adjust the lighting to the rhythm of your day. Reducing the brightness of the light at night or turning on the lights in a room in the morning - many possibilities from a single application.

Different receiver models can work together synchronously. They must be controlled from the same device, in the same dynamic mode and from a distance of no more than 30m. The devices are characterized by the ability to transmit the signal from the receiver to the next device, increasing the range of the. Signal transmission is possible when the distance between consecutive devices is less than 30m. The model incorporates an improved transmission method that speeds up the transmission of the signal to subsequent receivers.

The ability to transmit and synchronize the signal

"Do not disturb" function
The "do not disturb" function prevents the controller from automatically turning on after power is restored in the event of a temporary power outage. The function can be activated and deactivated with the remote control.

Extended frequency range
The high and low frequency range has been extended to 16k-250Hz. This reduces the flickering effect which allows for a smoother transition effect when dimming the light.

Push-dimm key lighting control option.

Pairing the remote control with the receiver is extremely easy. Perform the action of disconnecting the main power supply from the receiver (1), and then reconnect the power supply, where in the first 3 seconds briefly hold the previously selected channel on the remote control (2) respectively. The result of the correct pairing of the devices will be the blinking of the LED strip (3) three times.

Diagram of pairing the receiver with the remote control

Dimensions 36x17x74.5mm Voltage DC12~24V Working range 30m Frequency 2.4GHz Working temperature -10~40°C
