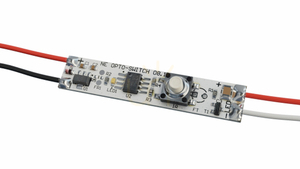

SWITCH 14-7065-00 is a push-button switch and PWM dimmer for single-colour LED strips, designed to fit inside a LUMINES profile. Its narrow circuit board carries the button and connecting wires, placing the control within the lighting line rather than on a separate wall plate.
One button, two different actions
A short press switches the lighting on or off. Holding the button for more than two seconds enters the brightness-adjustment mode, indicated by a flashing LED. The distinction matters in everyday use: a brief press operates the switch, while the longer hold accesses dimming.

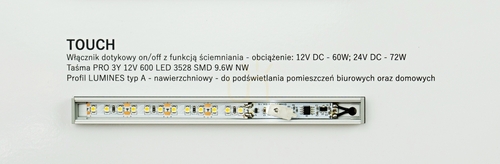

A single indicator LED marks the control location. SWITCH is intended for MONO strips, meaning single-colour lighting; it switches and dims that strip rather than selecting RGB colours. The manufacturer identifies lighting above a kitchen worktop as an application and illustrates the controller in a profile used for lighting home and office interiors.
Check the space inside the profile
The module measures 50 × 10 mm. Installation requires a LUMINES aluminium profile with an internal dimension greater than 10 mm. The official installation example uses the type A profile. Compare the module with the available internal space before choosing a profile: the outside width alone does not establish whether it will fit.
The switch can sit behind the profile diffuser, but the diffuser needs a mounting hole at the button position. Plan that opening before finishing the LED line, as the button must remain accessible. This is an electronic component rather than a decorative luminaire; once installed, the selected profile and diffuser determine the visible appearance of the assembly.
Match the load to the operating voltage
At 12 V DC, the maximum load is 60 W and 5 A. At 24 V DC, it is 72 W and 3 A. Choose the LED-strip load using the limits for its actual voltage, not those of the other supply configuration. SWITCH operates in a low-voltage DC installation and must not be connected directly to a 230 V mains supply.
