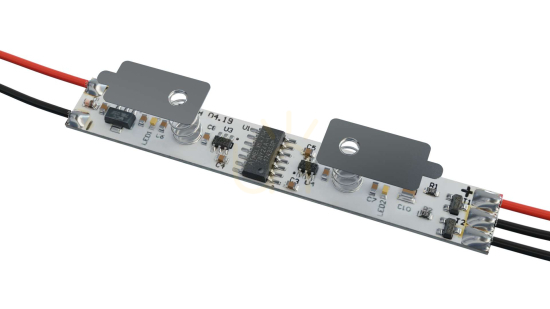

Switch for LED TOUCH Dual Color DIMM PWM 60W/12V 72W/24V strips.

TOUCH Dual Color switch with dimmer, is designed to switch on and off and dim dual color (warm/cold) LED strips placed in the aluminum profile. The switch can be mounted in a profile with a lampshade. The place where the sensor is located is illuminated by an LED. It is used in the lighting of kitchen worktops and work surfaces, furniture lighting. It is equipped with an adhesive tape that allows stable installation in the profile.

Instructions for use

Button 1 turns off the lighting, in addition, longer holding causes smooth dimming of LED lighting. By briefly pressing button 2, you turn on the lighting and incrementally select a cold, warm, or neutral white color. In addition, holding down the button for a longer time causes a smooth transition from warm through neutral to cold color.

NOTE: If the switch does not respond to movement, disconnect the power, wait 30 sec.. and turn the power back on.

Installation of the Dual Touch controller in the LUMINES A profile.

Version touch Voltage 12V / 24V Max. Output current5A / 3A Power 60W / 72W Dimming function Yes Waterproof IP20 Dimensions 70x10mm
