MiBoxer PILOT RF 4 STREF MONO/CCT C1

MiBOXER C1 remote control allows remote control of brightness and color temperature of LED lighting. It operates based on 2.4 GHz wireless RF technology, providing a stable connection to MiBoxer/Mi-Light series receivers and luminaires within a range of up to 30 meters.

C1 supports four zones to which any number of receivers (sold separately) can be assigned. In addition, the device allows you to save one favorite scene (for products version V2.0 or later). Thanks to the magnetic base, the remote control can be easily placed in a convenient place, always within reach.

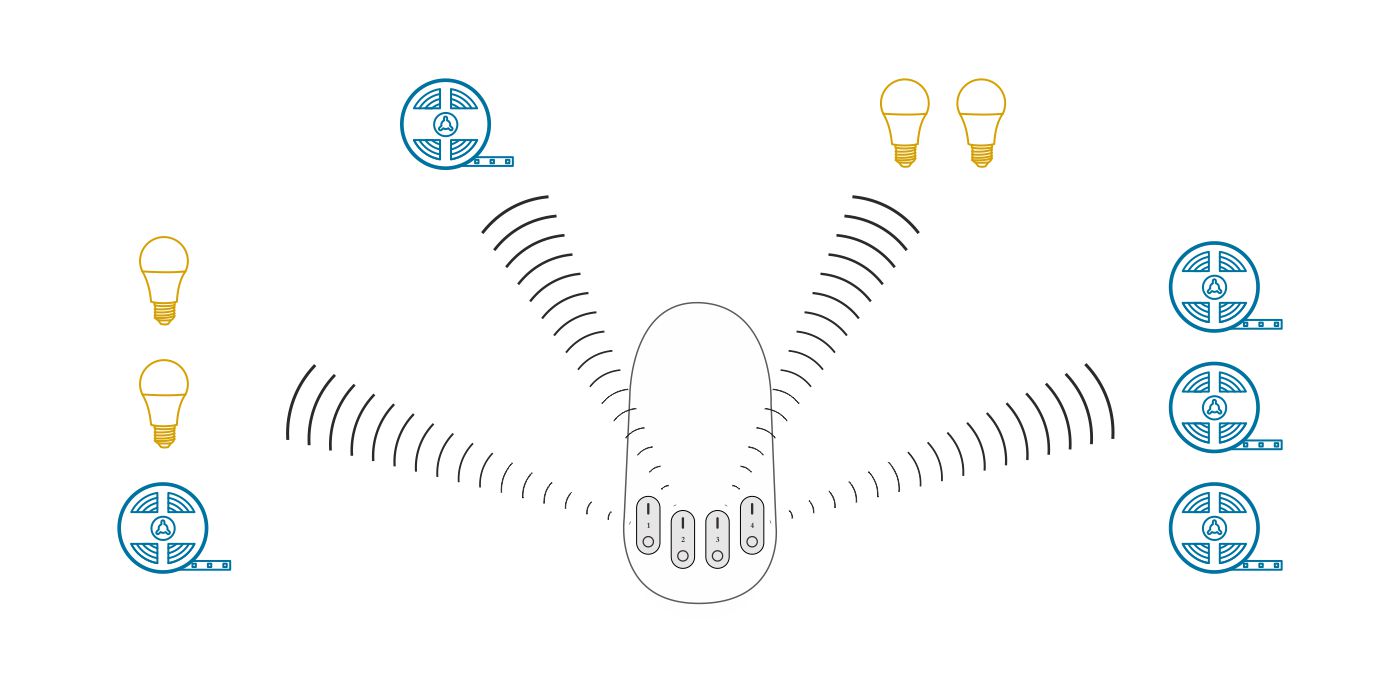

Control 4 zones with one remote control

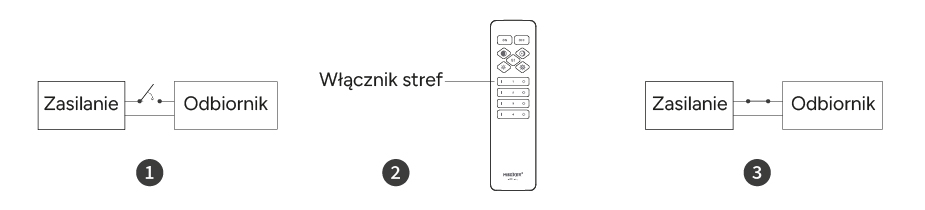

Pairing the remote control with the receiver is extremely easy. Perform the action of disconnecting the main power supply from the receiver (1), and then reconnect the power supply, where in the first 3 seconds briefly hold the previously selected channel on the remote control (2) respectively. The result of the correct pairing of the devices will be the blinking of the LED strip (3) three times.

Diagram of pairing the receiver with the remote control

Power supply 2xAAA (3V) Dimensions 37.5 x 15 x 140 mm Working range 30 m Power consumption in standby mode 5μA Frequency 2.4 GHz (2400-2483.5 MHz) Number of zones 4 Operating temperature -10~40℃
