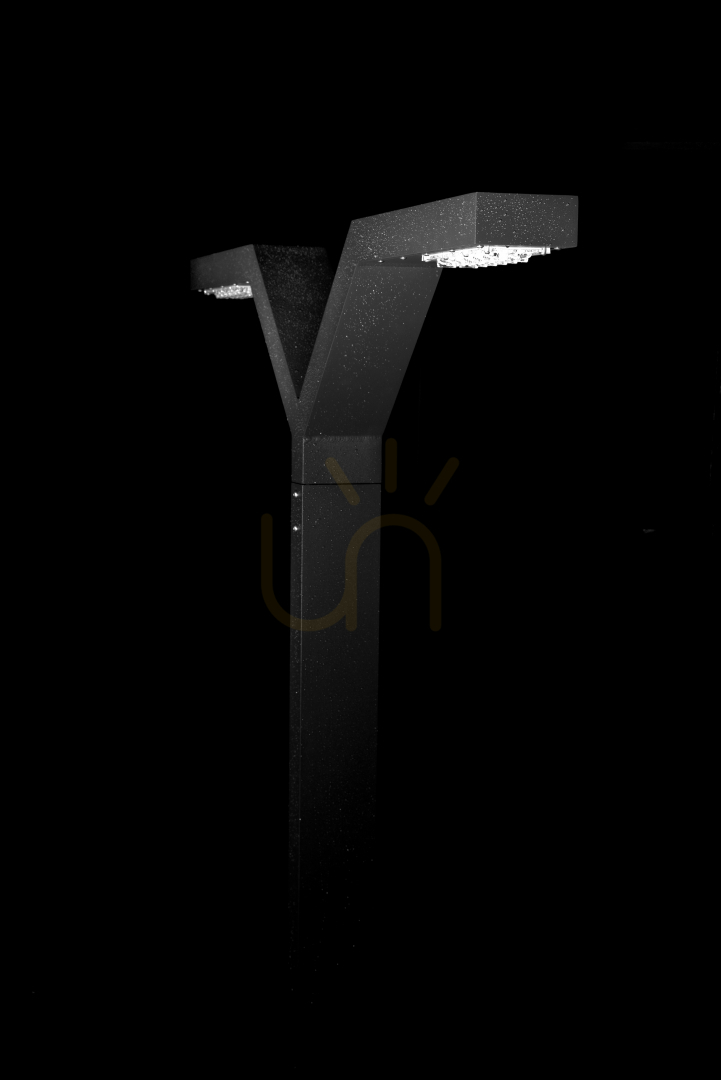

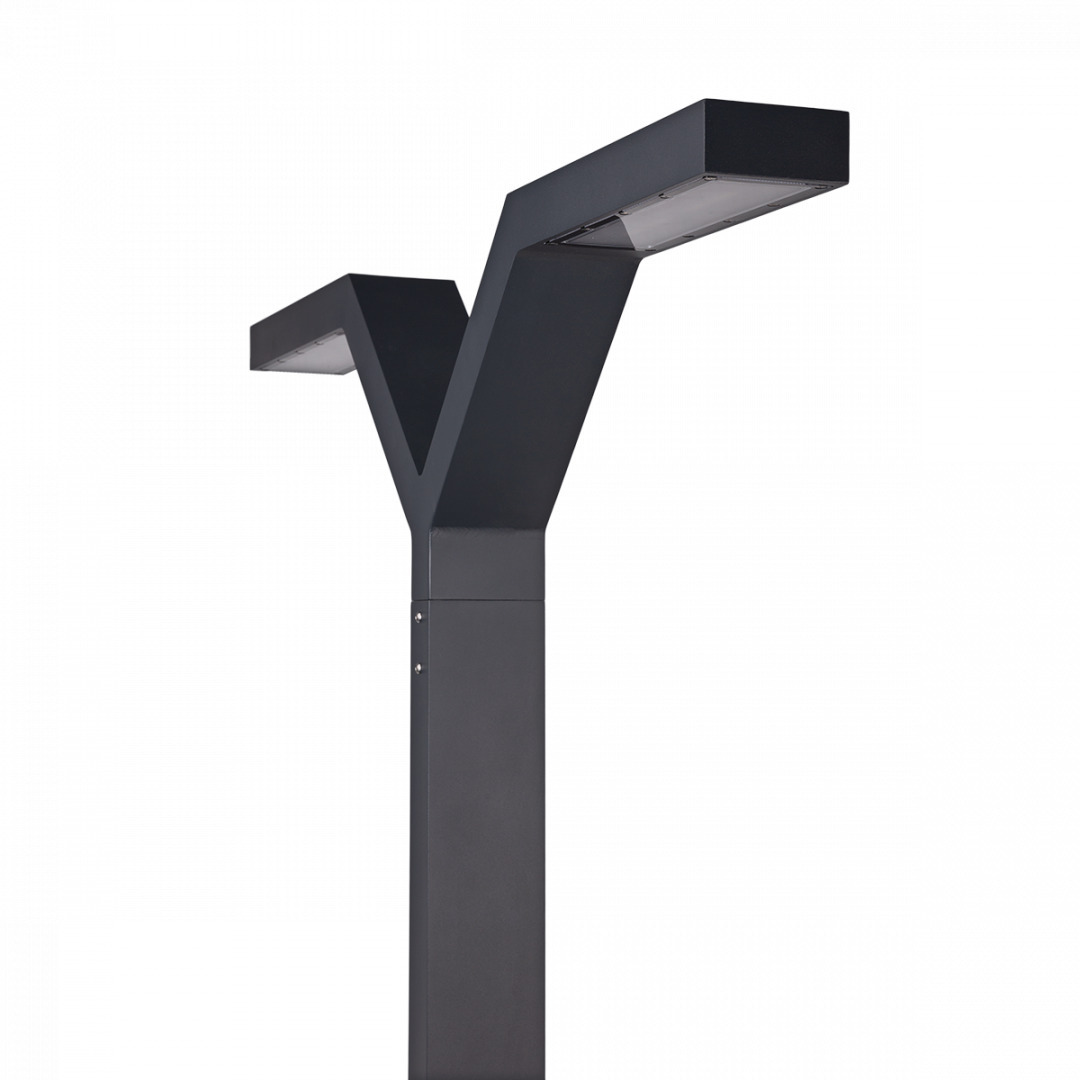

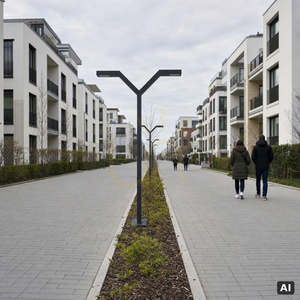

NORLYS Trysil 1003GR is a tall integrated LED luminaire for outdoor lighting. It is 263 cm high, 118 cm long and 24 cm wide, so its dimensions should be checked against the intended installation position before purchase. The graphite RAL 7016 finish and aluminium construction give the fitting a consistent architectural appearance. Its transparent textured polycarbonate diffuser is UV-stabilised.
Light and control
The luminaire has an integrated LED source. Rated power is 40 W and luminaire luminous flux is 4145 lm. The specified 4000 K neutral colour temperature is a practical point to coordinate with the surrounding lighting scheme. DALI2 control must be considered when the installation is designed; the product information does not state that control equipment is supplied.
Outdoor project use

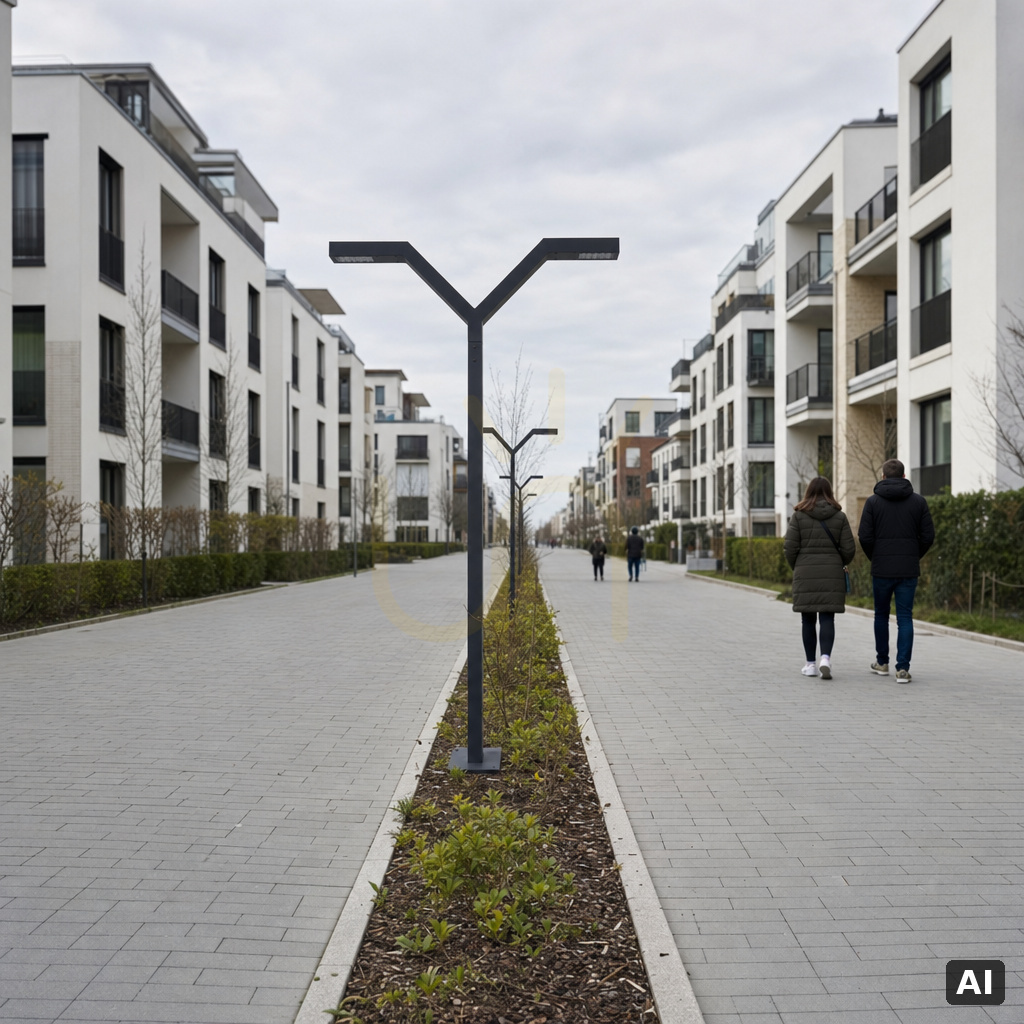

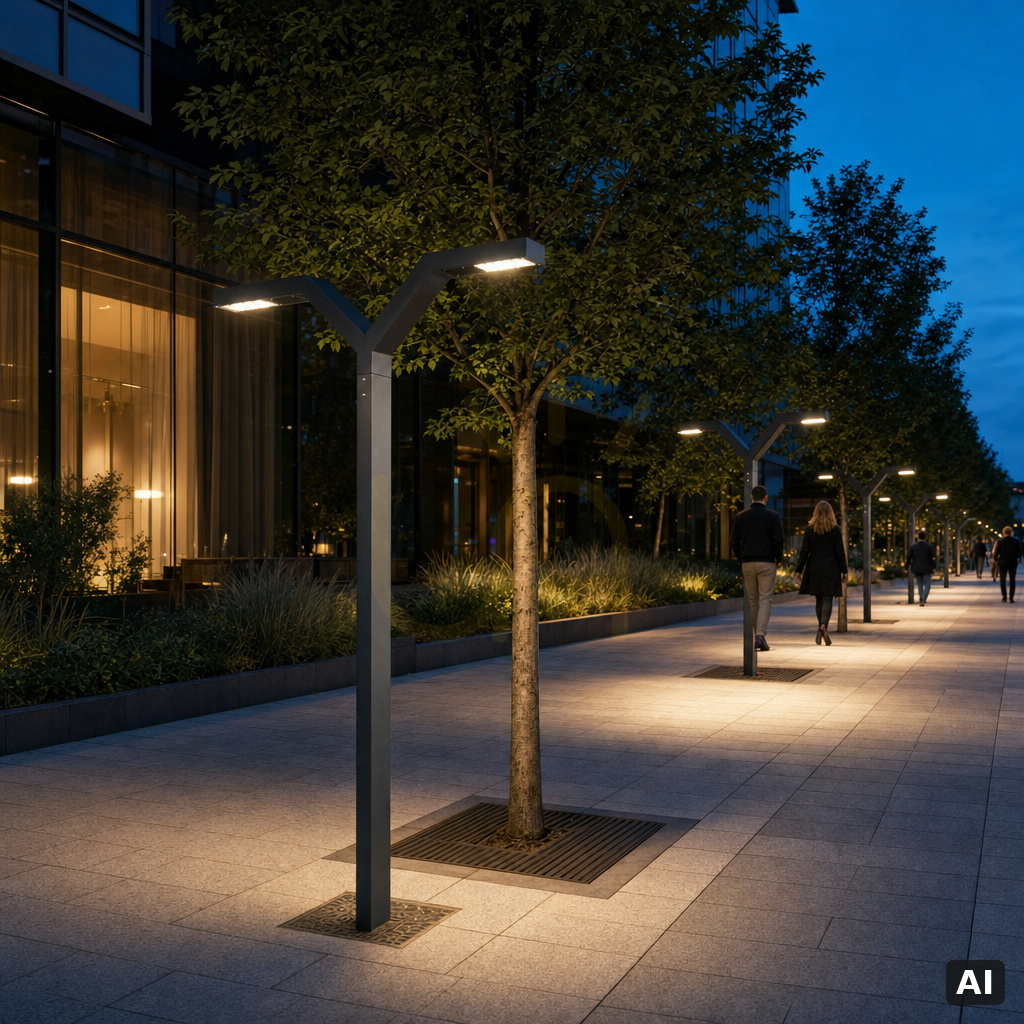

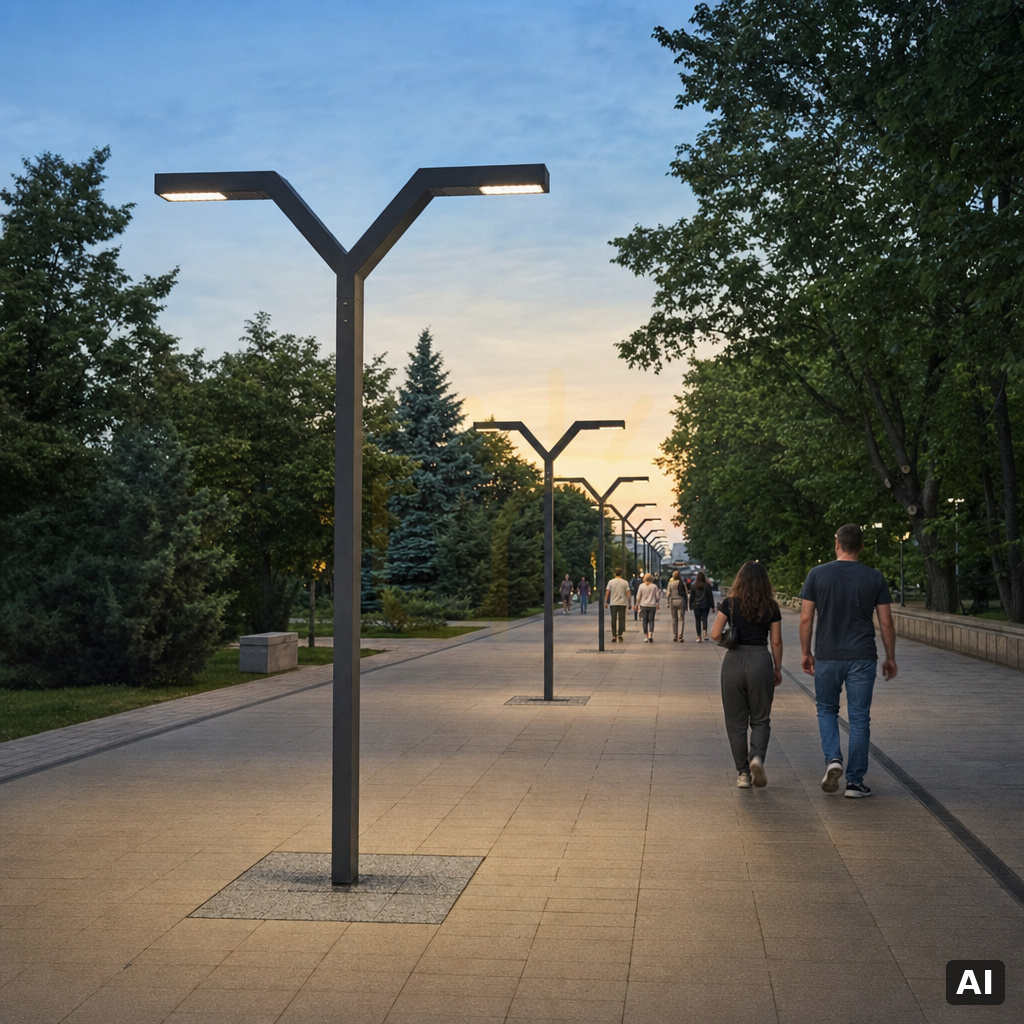

IP65 ingress protection and IK10 impact resistance are confirmed by the product card. The model is classified for outdoor, garden, park, hotel and restaurant use. This does not make it a universal fit: its 263 cm height and 118 cm length need to be compared with the available site and planned layout.
Installation details
Trysil 1003GR operates at 220–240 V and has protection class I. Connection terminals accept up to 5 × 4 mm² conductors, with through-wiring possible up to 5 × 2.5 mm²; the stated maximum cable diameter is ø13.6 mm. Installation must follow the supplied manual. Other accessories are to be purchased separately. Confirmed net weight is 21.30 kg and gross weight is 23.70 kg.
