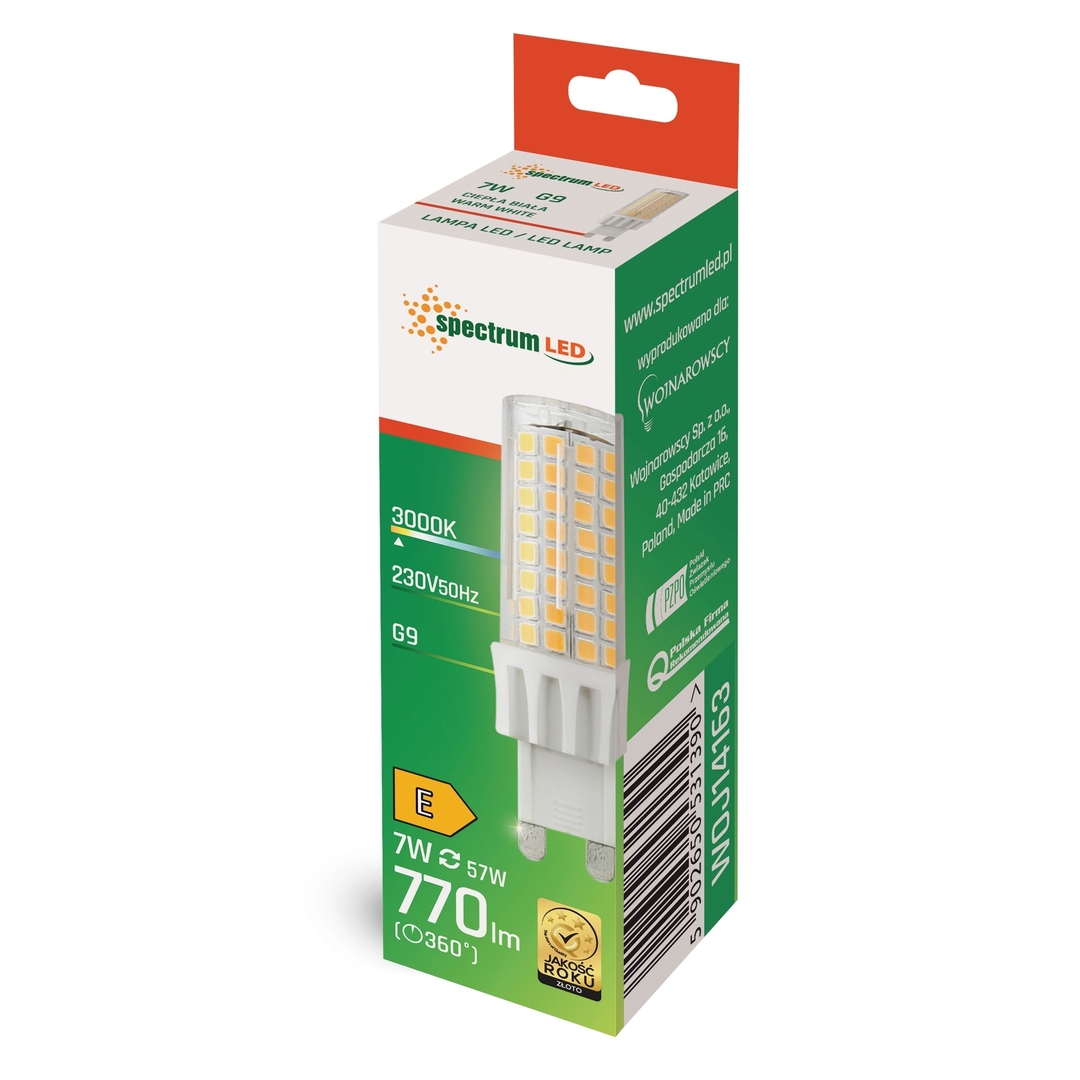

Led G9 230 V 7 W Ww Smd Spectrum

LED G9 230V 7W WW SMD Spectrum – WOJ+14163

LED source LED G9 7 W. It is perfect for use in households, hotels, shops, or restaurants as decorative or accent lighting, and can be installed in decorative luminaires, furniture fittings, and wall sconces equipped with a G9 base.. It is characterised by a high light efficacy 110 lm/W. It shines with a warm light (3000K), which promotes relaxation and rest, making the illuminated room cosier. Wide beam angle 270° ensures even illumination of the room.

Key specifications

• Power: 7 W
• Voltage: 230 V
• Nominal current: 45 mA
• Luminous flux: 770 lm
• Lamp efficacy: 110 lm/W*
• Light color: WW
• Colour temperature: 3000 K
• Beam angle: 270 °
• Dimension: 21x71 [mm]
• Warranty: 2-years
• Ra: 80
• Energy efficiency classe: E
• Dimmable: no
• Socket: G9

Selection and installation

Before installation, check the supply voltage, dimensions, mounting method and required IP rating. Select accessories and light sources according to this model’s technical documentation.
