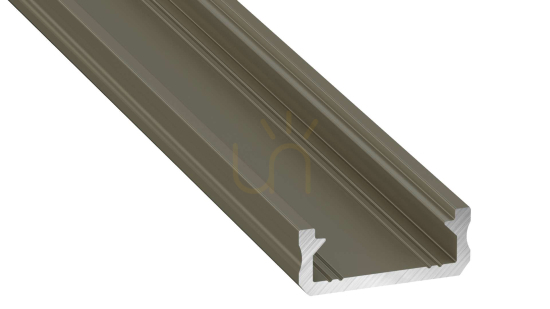

LED profile LUMINES type D inox anodized 1 m

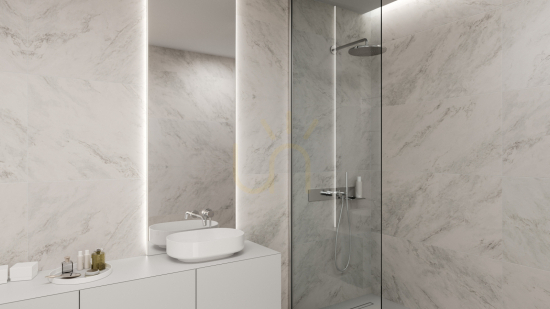

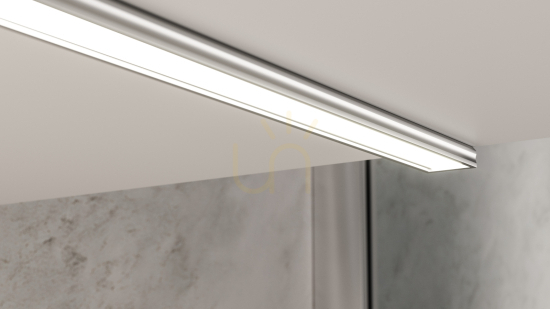

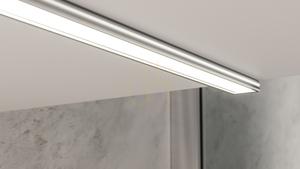

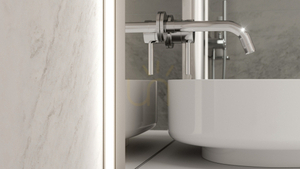

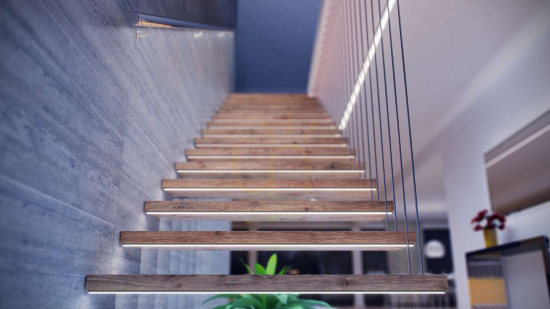

LUMINES D aluminum profile for surface use - designed for mounting LED strips in hard-to-reach places. Due to its dimensions, it provides the basis for maximum light with minimum profile size. It is ideal for use as an element of decorative illumination in furniture and interior finishes

<iframe frameborder="0" height="500" src="https://www.youtube.com/embed/XPgyqcUS-60" title="Installation of LED strip in aluminum profile "D"". LED profile installation. Lumines LED Lighting." width="100%">

Color varieties:
- raw,
- anodized silver,
- anodized black,
- anodized inox,
- lacquered white (RAL9016)

Mounting method:
- double-sided tape
- mounting brackets

Accessories:
- BASIC diffuser made of PVC plastic - milky, frosted, transparent
- PMMA plastic Basic diffuser - transparent, frosted, milky, frosted milky, lens 15, lens 30, black
- Plastic diffuser Basic PC - transparent, frosted, milky
- HIGH lampshade made of PVC plastic - transparent, frosted, milky
- PMMA HIGH plastic diffuser - transparent, frosted, milky, frosted milky, black
(top-mounted press-on)

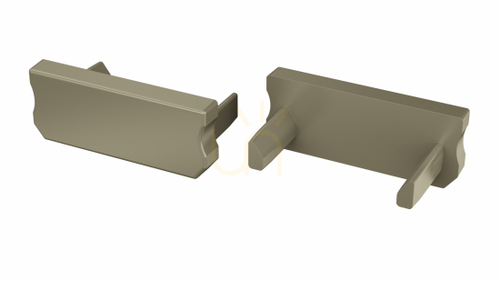

- dedicated aluminum end caps for profiles with BASIC diffuser in 3 color varieties (with hole, without hole)
- dedicated aluminum end caps for profiles with HIGH diffuser in 3 color variants (with hole, without hole)
- Dedicated ABS plastic end caps for profiles with BASIC diffuser in 5 color variations (with hole, without hole)
- dedicated ABS plastic end caps for profiles with HIGH lampshade in 5 color variants (with hole, without hole)
- mounting brackets for profiles with BASIC lampshade and with HIGH lampshade in 3 color varieties - transparent, white, black
- hinge.

Profiles available in sections: 1000 mm, 2020 mm, 3000 mm.
Possibility to purchase longer sections after contacting the service office.

Installation instructions for profile D with BASIC diffuser using (1) double-sided tape, (2) mounting bracket D MINI, (3) metal mounting bracket D

Final result of mounting of profile D with BASIC lampshade using (1) double-sided tape, (2) mounting bracket D MINI, (3) metal mounting bracket D

Installation instructions for profile D with HIGH diffuser using (1) double-sided tape, (2) mounting bracket D HIGH

End result of mounting of profile D with HIGH lampshade using (1) double-sided tape, (2) mounting bracket D HIGH

Joining of profile D with HIGH lampshade at 90° angle

Assembling profile D with BASIC lampshade with D MINI holders

Schematic diagram of assembling lighting system components using Profile D and (1) BASIC diffuser, (2) LED strip, (3) cap with hole, (3a) cap without hole, (4) mounting screw, (5) D MINI mounting bracket

Schematic diagram of assembling lighting system components using D profile and (1) HIGH diffuser, (2) LED strip, (3) blanking plug with hole, (3a) blanking plug without hole, (4) mounting screw, (5) D HIGH mounting bracket
