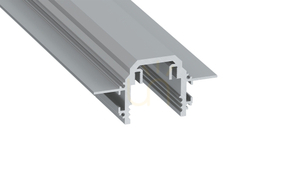

LED profile LUMINES type DURO silver anodized 3 m

The DURO LED system is designed for installation in concrete by pouring and suitable for mechanical anchoring in the formwork.

It provides high stability, load resistance and precise finishing of the light line in ceilings, walls and other concrete surfaces.

The system is designed to use a single LED strip. Thanks to the specially developed LIFT ONE shade, it is possible to precisely flush the surface of the shade with layers of plaster of different thicknesses, and its design facilitates service access to the light source.

Color varieties:

• silver anodized

Shade:

• LIFT ONE - opal

End caps:

• aluminum with hole: silver anodized
• aluminum without hole: silver anodized

Installation instructions for DURO LED profile in the formwork using screws.

Effect of installation of LED profile DURO in the formwork using screws after reinforcement and pouring concrete.

Installation instructions of DURO M1 mounting profile with LIFT ONE shade using screws.

Installation effect of DURO M1 mounting profile with LIFT ONE diffuser using screws after plaster finish.

Diagram of assembling the elements of the lighting system using DURO profile and (1) LIFT ONE lampshade, (2) LED strip, (3) DURO M1 mounting profile, (4) DURO cap without hole, (4a) DURO cap with hole.
