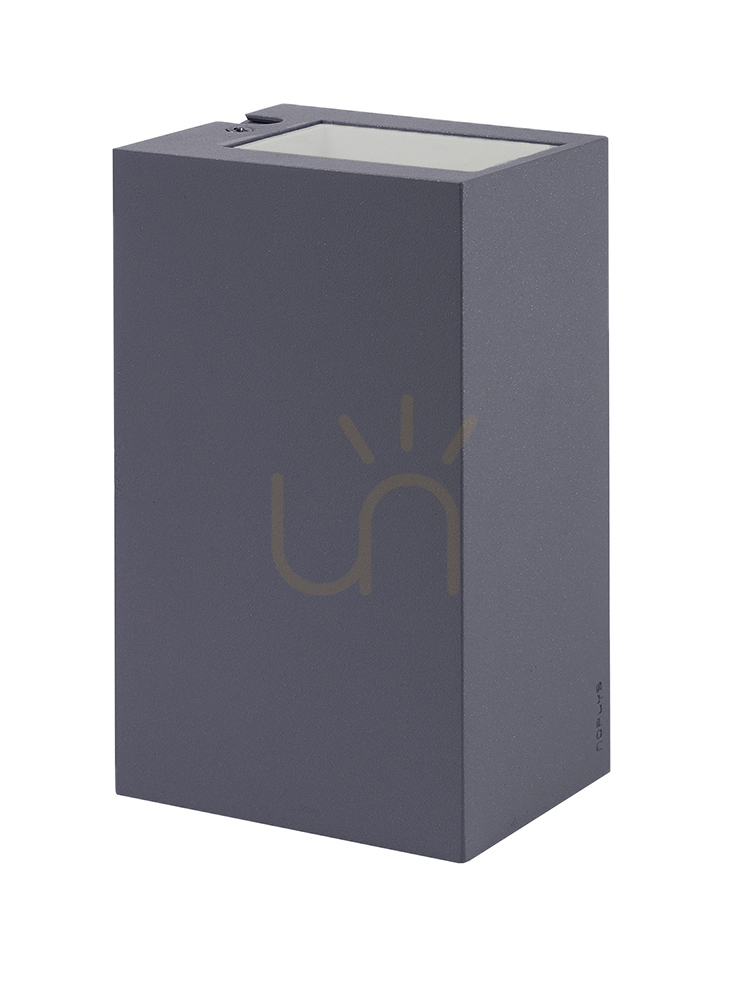

Norlys Lillehammer 2270GR is a graphite outdoor wall light from the Lillehammer series. It has a powder-coated cast-aluminium body and a clear safety-glass lens. The compact fitting measures 18.5 × 11 × 8 cm, so these dimensions should be compared with the available facade space before purchase.
An asymmetric wall-light effect
The integrated LED module gives the fitting a 7.3 W power rating and a warm 3000 K light colour. Luminaire output is 127 lm. It distributes light in two directions: a 4° beam can face upward with a 60° beam downward, or the orientation can be reversed. This arrangement is intended for lighting walls, facades and other architectural elements; fitting orientation selects the direction of the narrow beam.
Construction and mounting
The fitting has IP65 protection, a silicone gasket and an EPDM cable gland. The manufacturer specifies installation through two Ø5 mm holes spaced 45 × 130 mm apart, following the supplied installation instructions. Terminals accept conductors up to 5 × 1.5 mm² and also permit through-wiring.
Light source and control
The LED module and driver are part of the fitting. Light control operates through DALI, while replacement of the LED source or control gear is intended for a qualified professional. Net weight is 1.6 kg and gross weight is 1.75 kg. The graphite 2270GR variant corresponds to RAL 7016.
