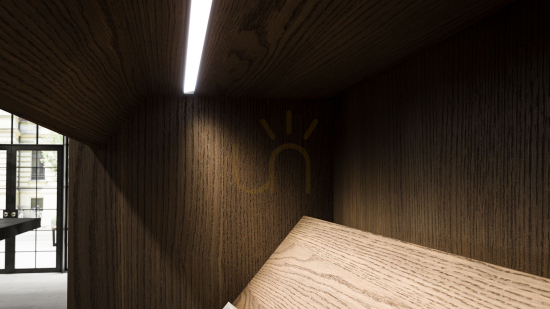

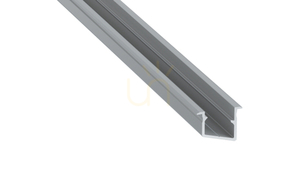

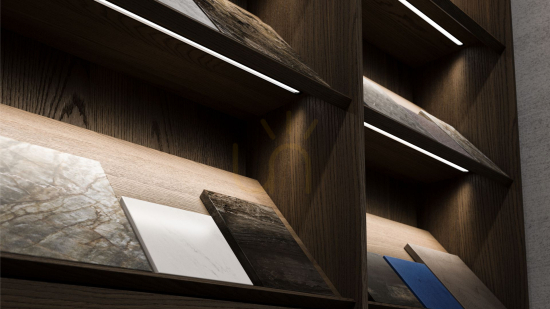

The LUMINES V LED profile in silver anodised finish is 1 m long and made for recessed installation. Its triangular cross-section directs light at a 15° angle, making it suited to lighting shelves and furniture details.
Installation in a 16 mm groove
The manufacturer specifies press-fit installation in a prepared 16 mm wide routed groove. The profile is not designed to be joined into a longer run. Before routing, compare the groove width with the manufacturer’s stated dimension.
A component of the V system
This is a profile, not a complete luminaire. The power supply remains outside the profile, while the LED strip, cover and end caps are selected separately within the V system. The manufacturer lists BASIC covers as compatible; when recessed, the cover arrangement limits glare at a basic UGR level.
The silver anodised aluminium forms a visible recessed edge without a painted coating. The profile is listed as non-sealable and IP20, so the conditions at the intended installation location need to be considered during planning.
