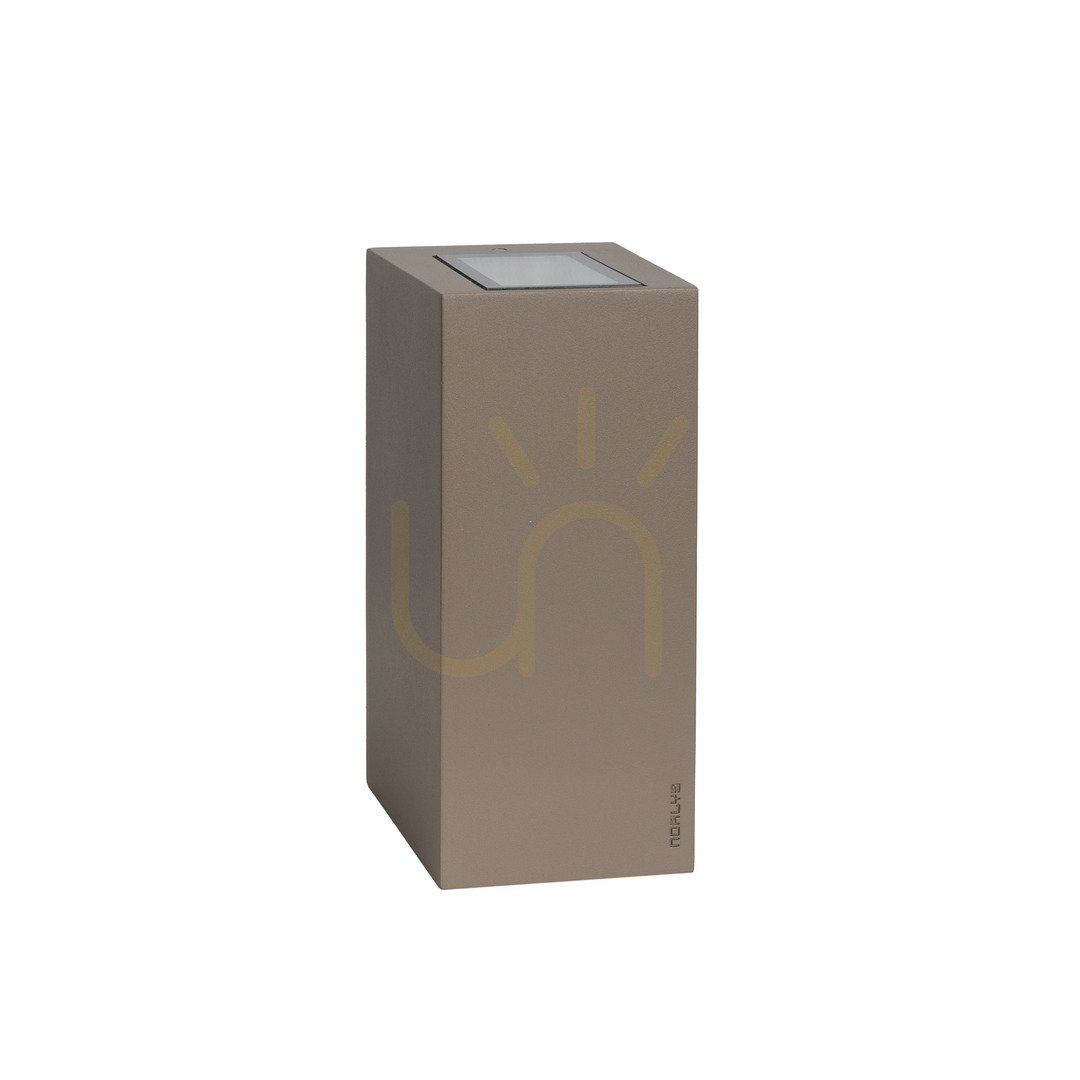

NORLYS Lillehammer 5028GB grey-beige LED outdoor wall light

NORLYS Lillehammer 5028GB is a rectangular outdoor wall light with a closed front and a grey-beige finish. Its body is powder-coated cast aluminium, with optical safety glass covering the light openings. Two LED modules send light upwards and downwards rather than through the front face, keeping the illuminated surfaces separate from the plain body.

Light directed along the wall

Both directions have a 60° beam angle. This arrangement is intended for illuminating walls and facades, so the available wall surface above and below the fitting matters when choosing its position. It can also illuminate a wall beside a terrace or balcony. Light directed along a facade should not be confused with even lighting across the whole outdoor area in front of the building.

The 4000 K colour temperature gives neutral-white light. The complete fitting delivers 236 lm, whereas its LED sources produce 1069 lm before the effects of the fitting's optical system. Use the luminaire output when comparing the amount of light actually leaving the fixture. Total power is 7.3 W. Dimming uses trailing-edge phase control, so the control equipment must support that method rather than simply being described as an LED dimmer.

A plain grey-beige architectural detail

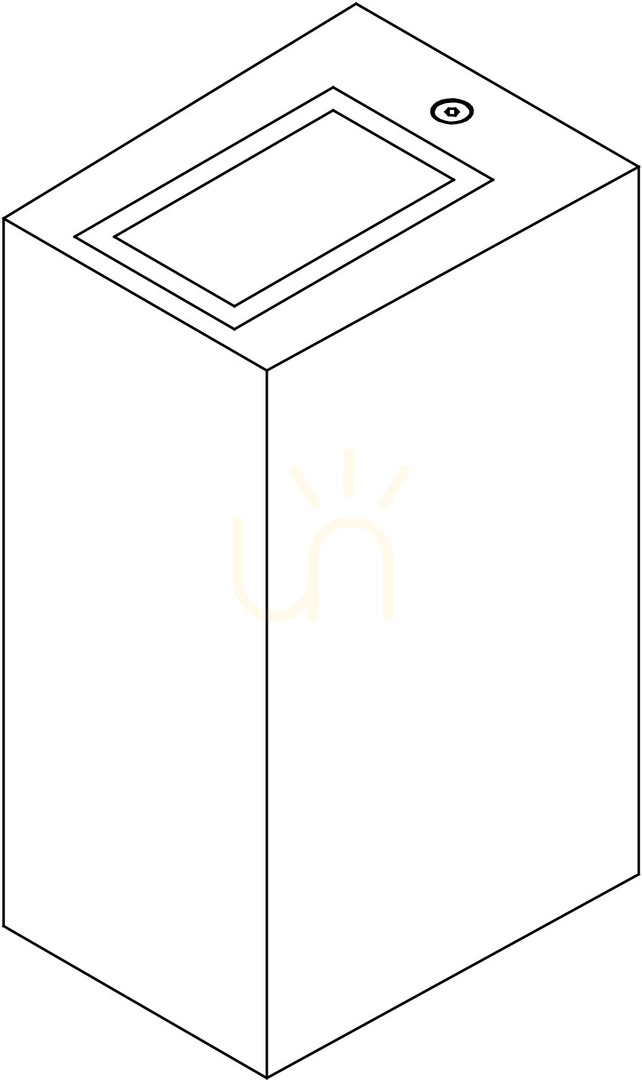

The body measures 18.5 × 11 × 8 cm. Straight edges, an uninterrupted front and the absence of decorative arms suit modern and minimalist facades. The GB code identifies this grey-beige version; it is not the black or graphite variant of the same family. Compare the body dimensions with the intended section of wall before arranging the mounting points.

Installation and component replacement

The fitting has IP65 protection and electrical protection class I. Mounting uses two 5 mm holes on a 45 × 130 mm spacing pattern. Installation and connection must follow the supplied instructions and be carried out by appropriately qualified personnel. The LED modules and control gear are replaceable by a professional service. This is not a fitting whose light colour can be changed by swapping an ordinary bulb.
