Maytoni Phanton DL2001-L12W recessed luminaire

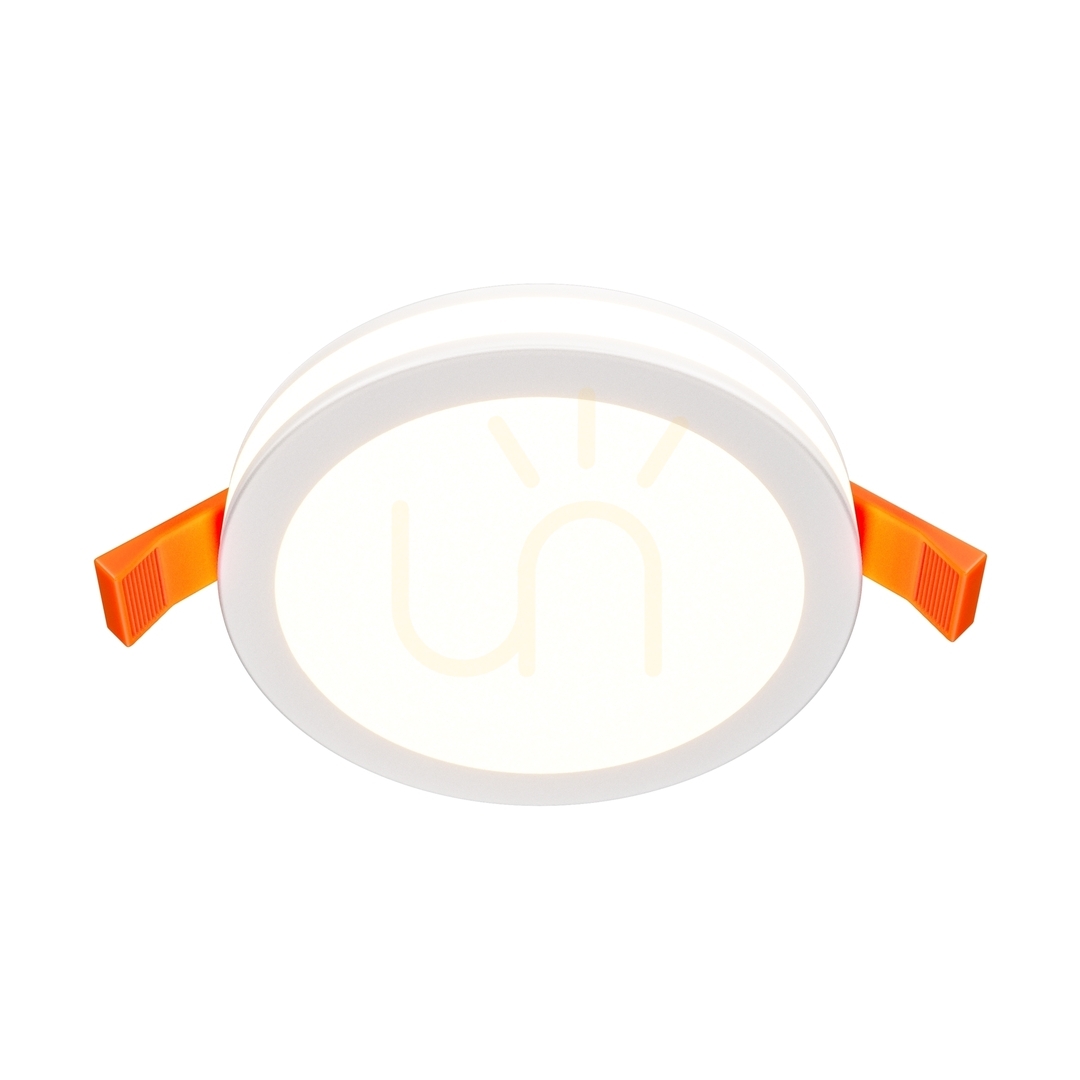

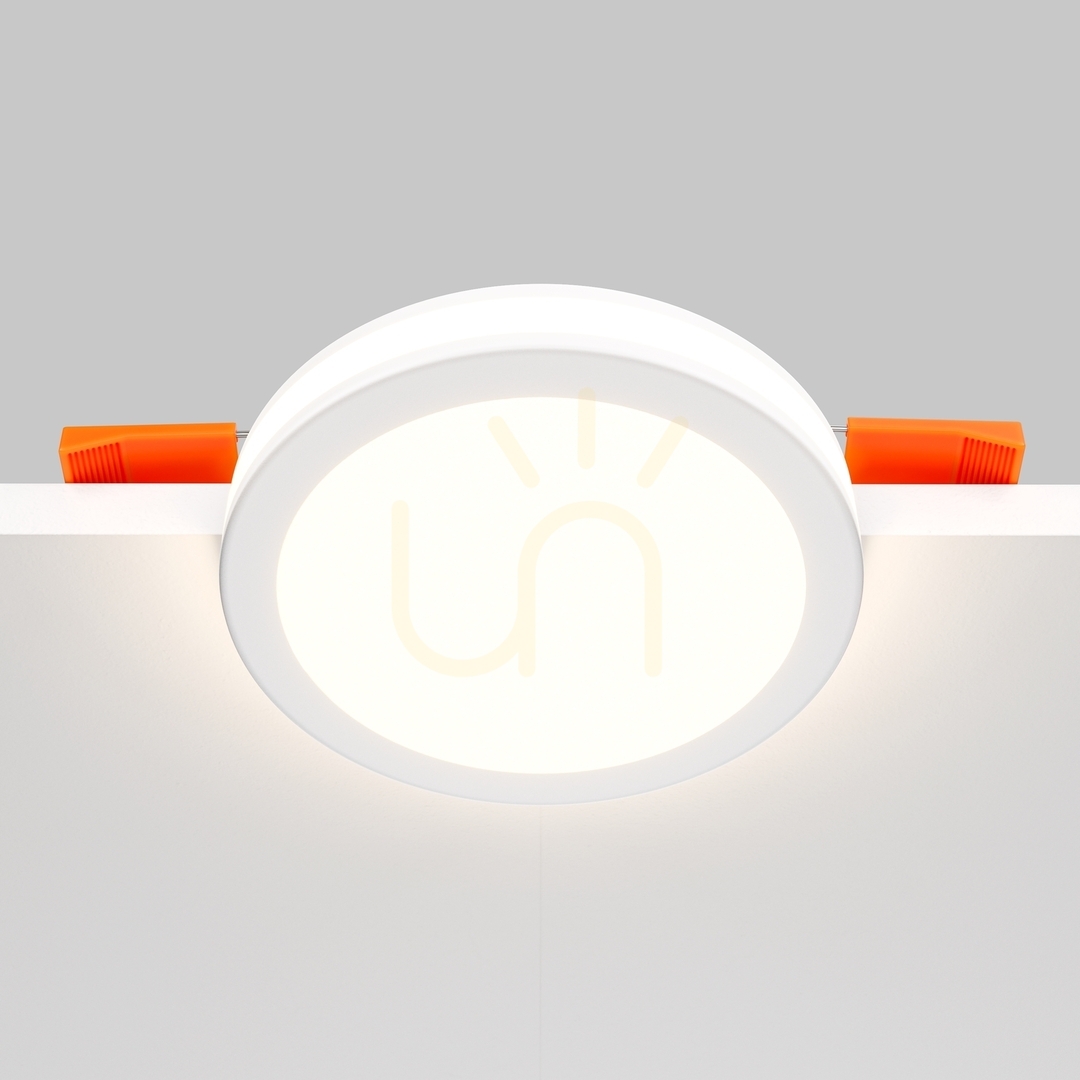

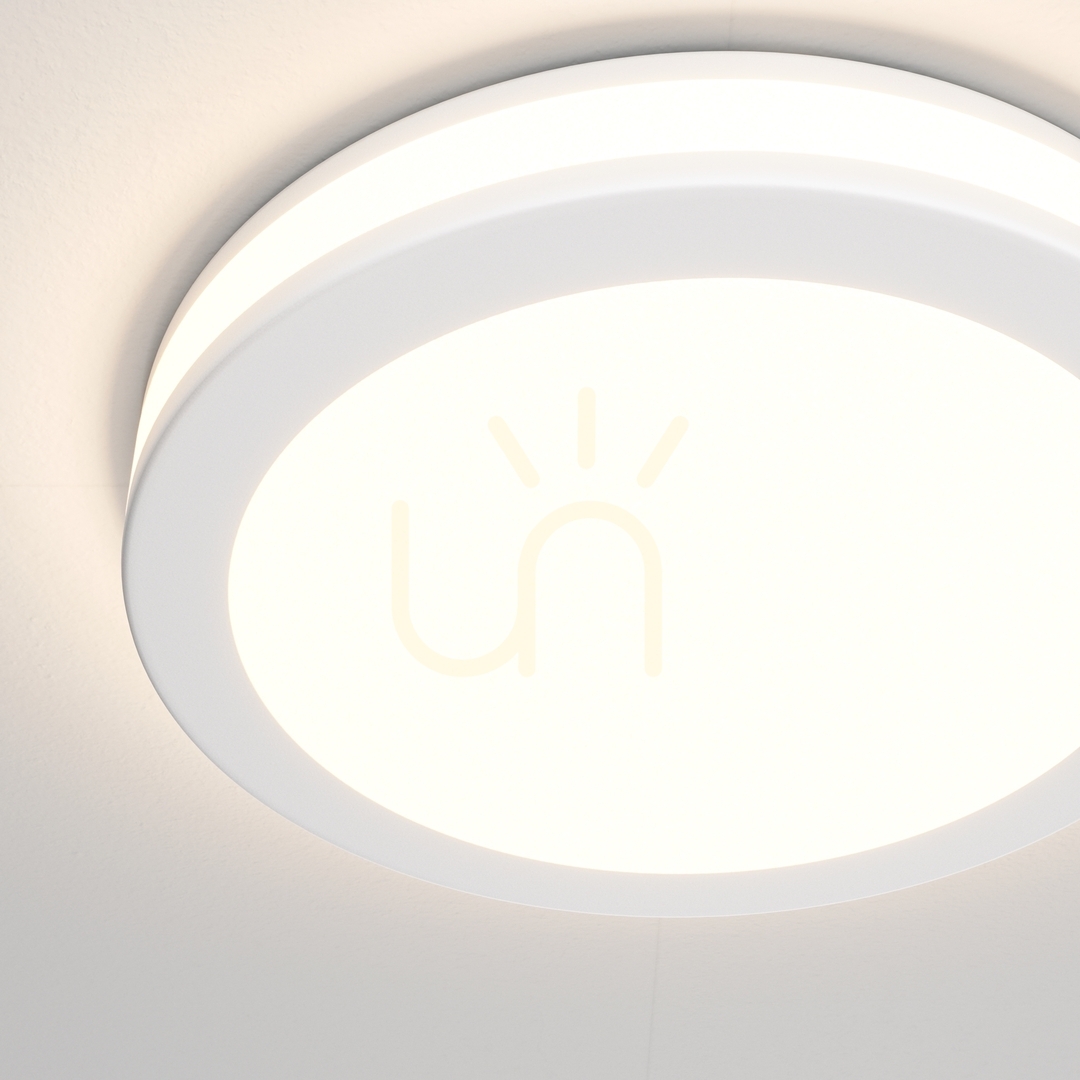

Maytoni Phanton DL2001-L12W is a round white LED luminaire designed for recessed ceiling installation. Its 32 mm height and 95 mm diameter keep the fitting visually discreet in a clean ceiling plane. The housing is aluminium and the LED light source is integrated.
Light for everyday interiors
The 12 W module delivers 750 lm at a warm-white 3000 K colour temperature. A 120° beam angle spreads the light across a broad area, while CRI 80 states the colour-rendering level. This version is not dimmable.

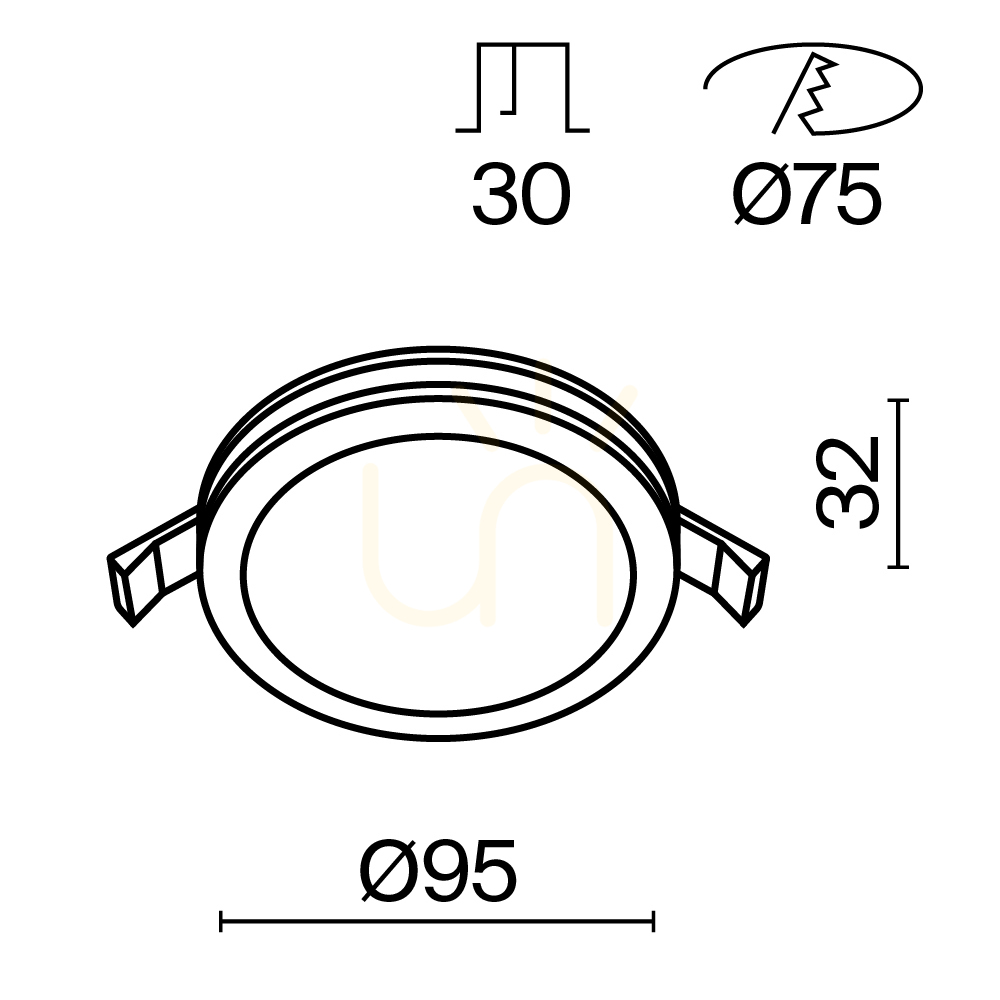

Dimensions and installation
- fitting diameter: 95 mm,
- height: 32 mm,
- cut-out diameter: 75 mm,
- recess depth: 30 mm.
The fitting operates on 220–240 V AC, 50 Hz, and has protection class II and IP20 protection. The declared IP rating should be considered when choosing its installation location.
Appearance and applications
The white technical finish and circular shape suit restrained, contemporary ceiling layouts. Phanton can complement lighting in a living room, bedroom, kitchen, dining room, hallway or home office. In a hotel or restaurant, several fittings can form a consistent ceiling grid. For a larger area, the required quantity should be determined within the lighting design rather than by a single fitting alone.
Confirmed specification
This model has energy-efficiency class G, a declared service life of 50,000 hours and a five-year manufacturer warranty. Net weight is 0.19 kg and gross weight is 0.23 kg. The DL2001-L12W code identifies this specific 3000 K warm-white version, distinguishing it from other variants in the range.
