Recessed downlight SLV NUMINOS GIMBLE XL white/chrome 37.4W 2700K 55° 1006046

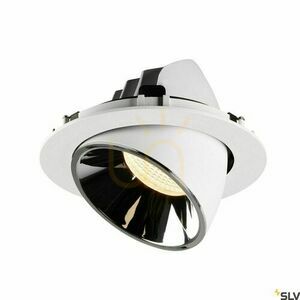

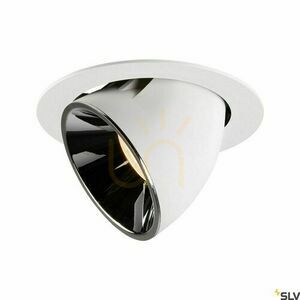

NUMINOS GIMBLE XL 1006046 is a large recessed ceiling downlight from SLV with a moving module: the reflector rotates on its axis and tilts, so the beam can be aimed exactly where it is needed. The white housing conceals a chrome mirror reflector that becomes a visible part of the fitting once the module is swung out.

Light: 3400 lm, 2700 K, Ra 90

The LED module draws 37.4 W and delivers 3400 lumens at a warm 2700 K. A colour rendering index of Ra 90 means faithful colour – the level that merchandise displays, wood, textiles and textured wall surfaces demand. The half-peak beam angle is 55°, a wide accent beam, and UGR ≤ 22 keeps glare under control when the fittings are run in rows above a working area. Rated life is 50,000 hours, photobiological risk group RG1.

A separate LED driver is required

The fitting is protection class III and runs on safety extra-low voltage: it needs an external constant-current driver of 1000 or 1050 mA, which is not supplied. The driver is chosen according to the number of fittings on the circuit and the control method – SLV's range includes 40 W multi-mA drivers, 28–40 W 1000 mA phase-dimmable units and 4.2–50 W 1050 mA DALI drivers, plus Casambi and Zigbee radio modules for wireless control.

Installation and finish

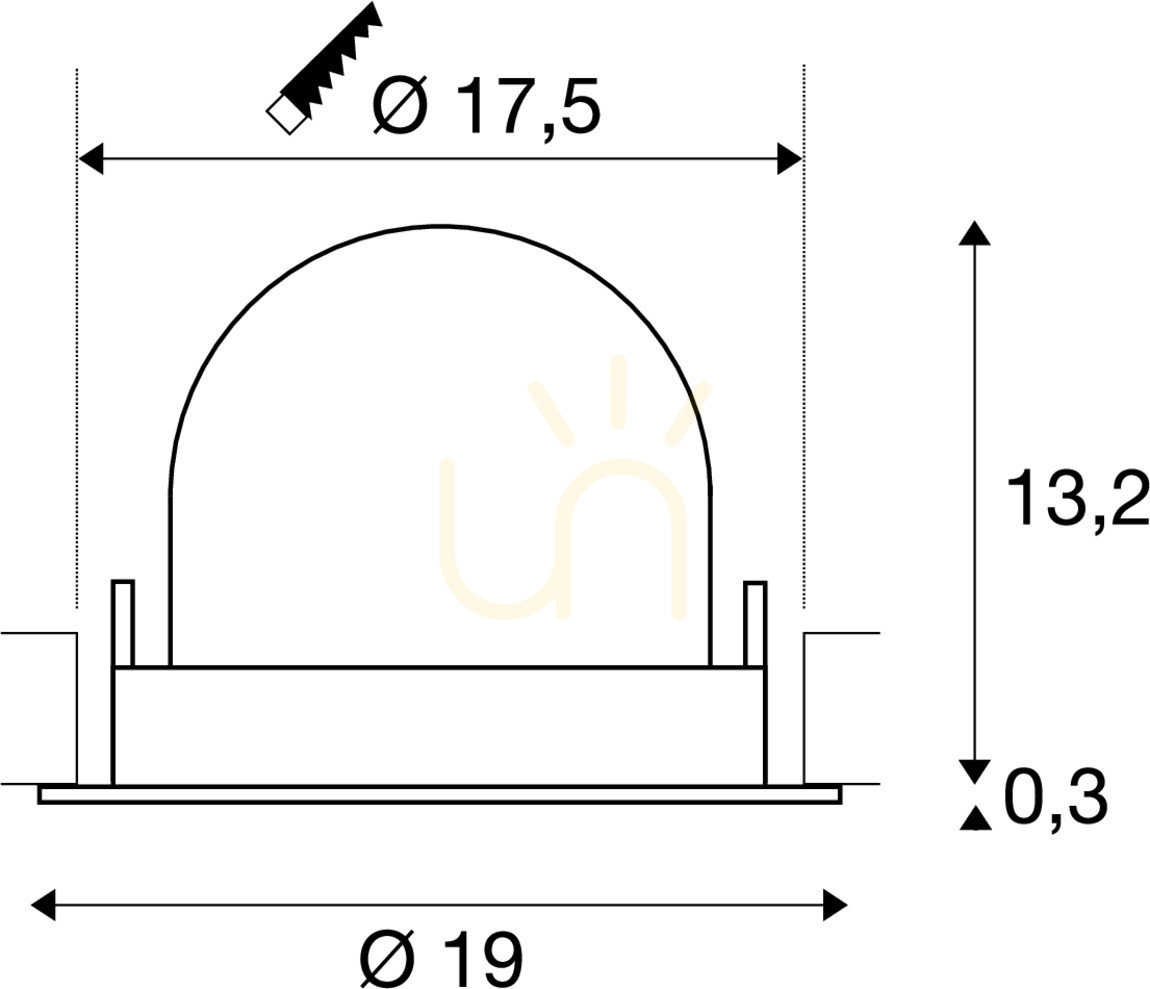

The cut-out is round, 17.5 cm in diameter, and the recess depth is 13.5 cm – plan the void above a suspended ceiling accordingly. The visible flange measures 19 cm across and projects only 3 mm below the ceiling plane, so the fitting reads as a flat ring. The body is aluminium and the optical component polycarbonate. For larger openings SLV offers 240/180 mm reducing rings in round and angled versions, and the beam character can be changed with a frosted, prismatic, elliptical or honeycomb diffuser.

Specification

• Manufacturer article number: 1006046
• Power: 37.4 W
• Luminous flux: 3400 lm
• Colour temperature: 2700 K (warm white)
• Colour rendering: CRI 90
• Half-peak beam angle: 55°
• UGR: ≤ 22
• Rated life: 50,000 h
• Photobiological risk group: RG1
• Secondary current: 1000/1050 mA (driver sold separately)
• Protection class: III
• Outer diameter: 19 cm, height: 13.5 cm
• Cut-out: round, Ø 17.5 cm, recess depth 13.5 cm
• Material: aluminium, polycarbonate (PC)
• Colour: white / chrome
• Net weight: 0.86 kg, gross weight: 1.071 kg
• Adjustment: module rotates and tilts

Where NUMINOS GIMBLE XL works

3400 lumens in a 55° beam suits tall interiors and jobs where the direction of the light matters: retail floors, galleries, reception areas, restaurants – and at home, high-ceilinged living rooms, stairwells and wall surfaces meant to be brought forward. The moving module lets you re-aim after installation when the layout changes, while 2700 K at Ra 90 keeps the warm, shop-lit character without distorting colour.
