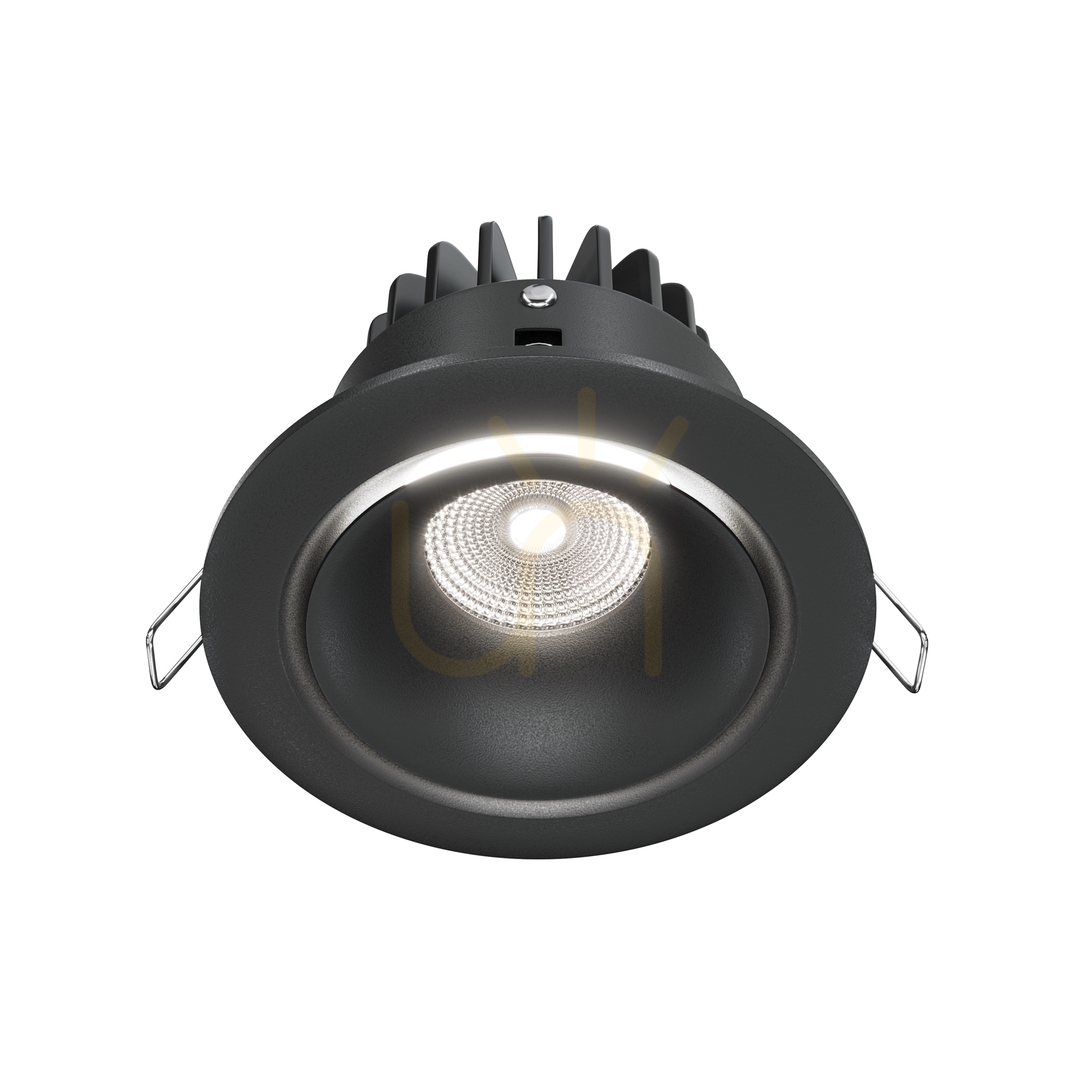

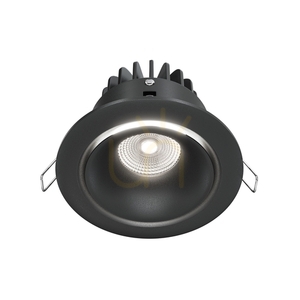

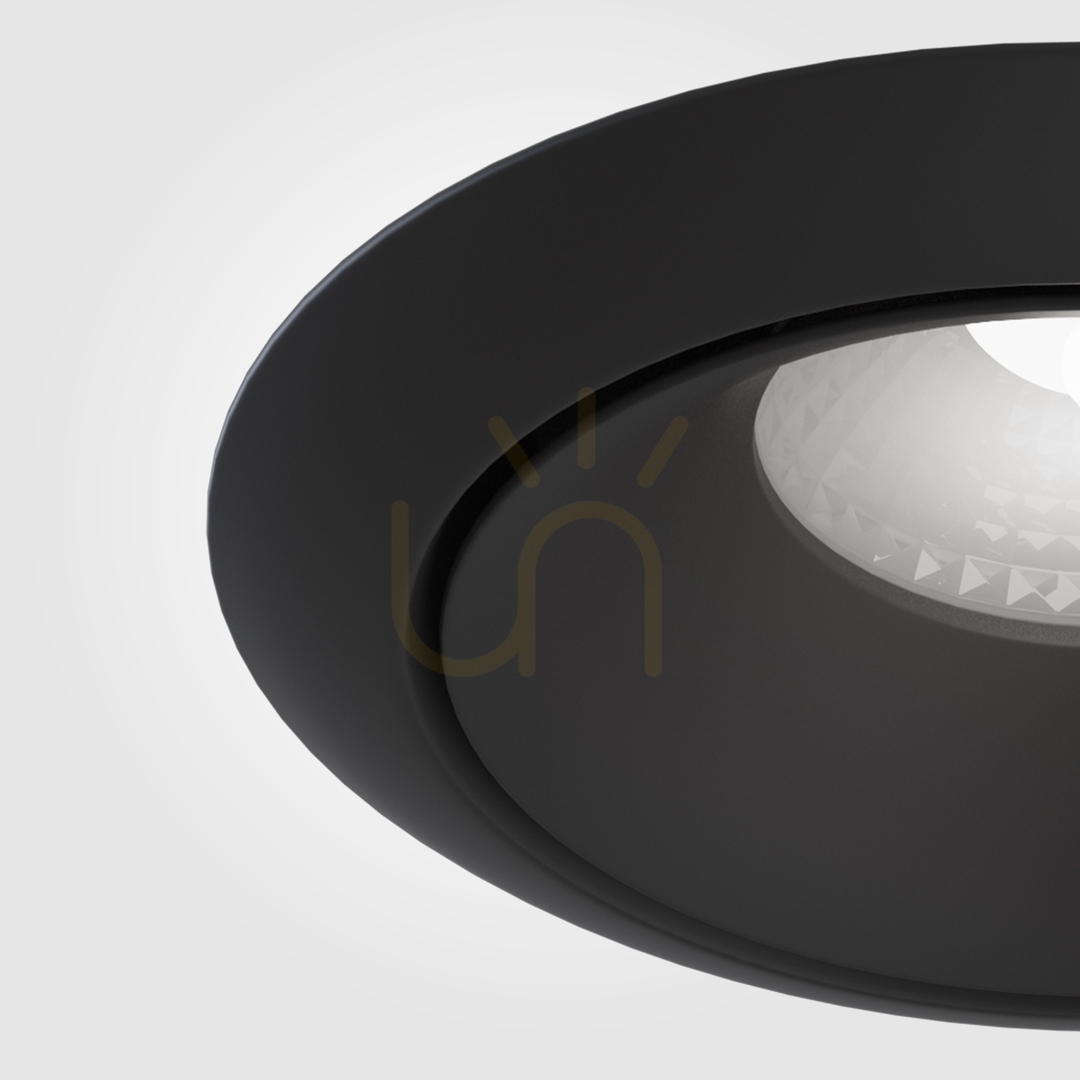

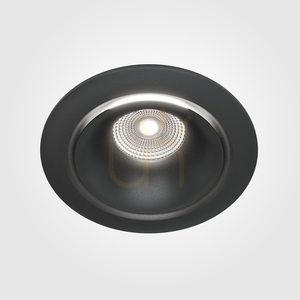

Maytoni Yin DL031-L12W4K-D-B is a black recessed downlight with an aluminium body and an integrated LED source. Its circular rim surrounds a deeply set light point, leaving a compact round element visible at ceiling level rather than a projecting shade.

Check the cut-out and recess separately

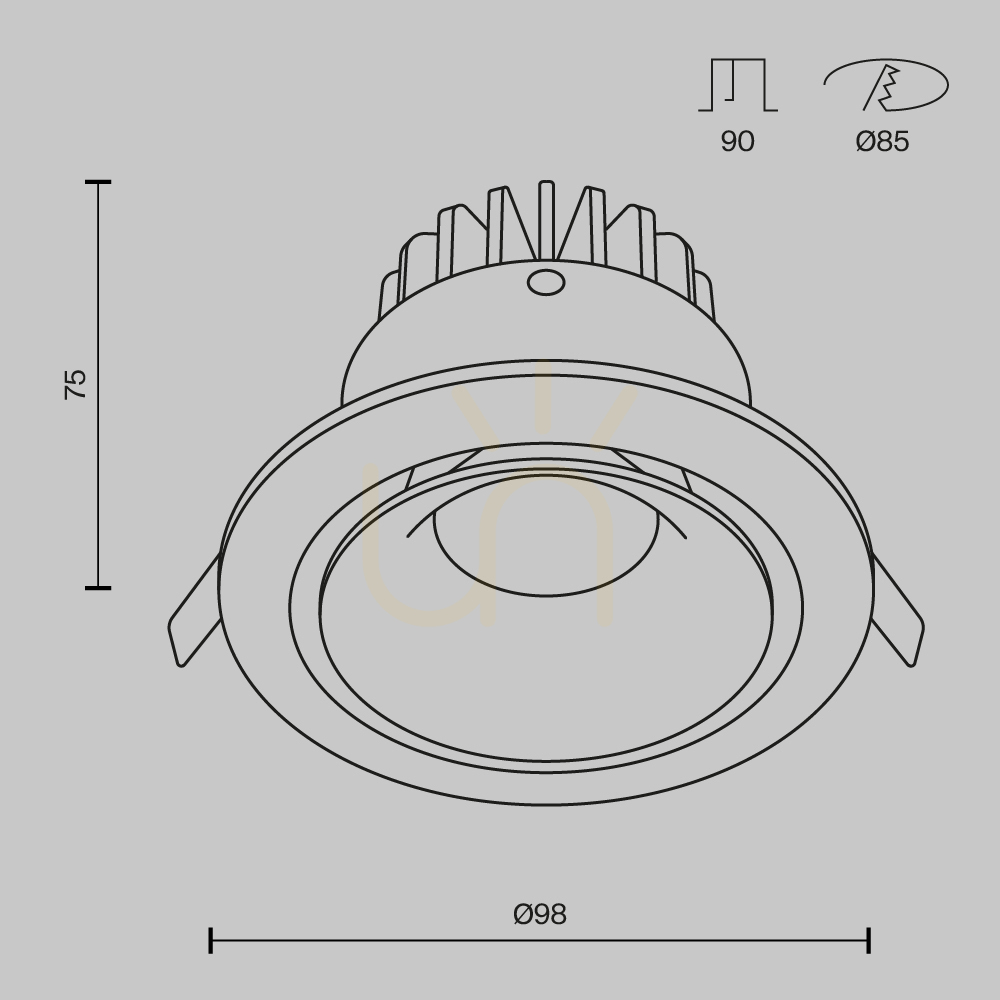

The fitting measures 98 mm across and its body is 75 mm high. Those external measurements are not the installation requirements: Maytoni specifies a round 85 mm cut-out and a mounting depth of 90 mm. Compare both requirements with the ceiling construction before choosing this fitting. Body height alone does not establish the space needed for installation.

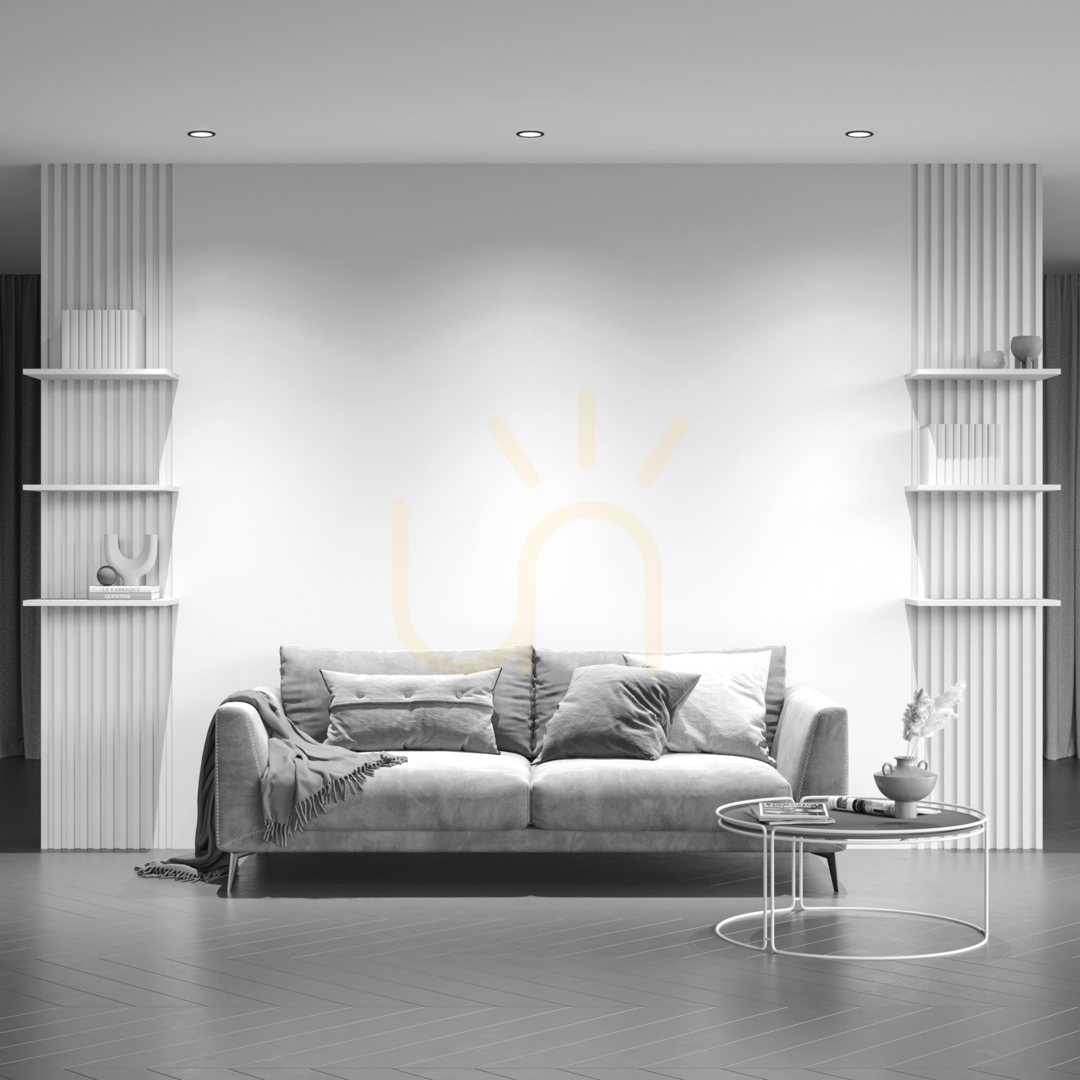

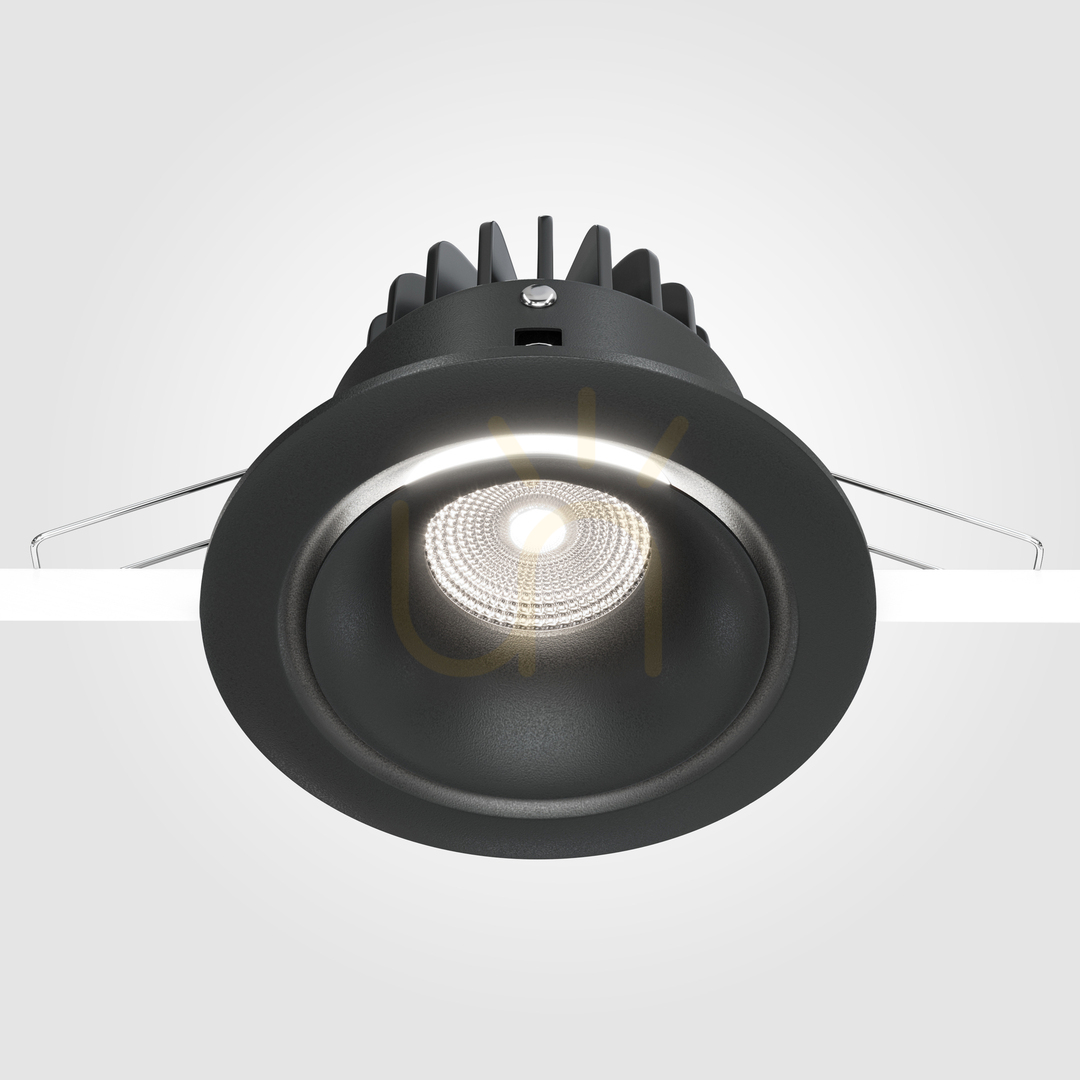

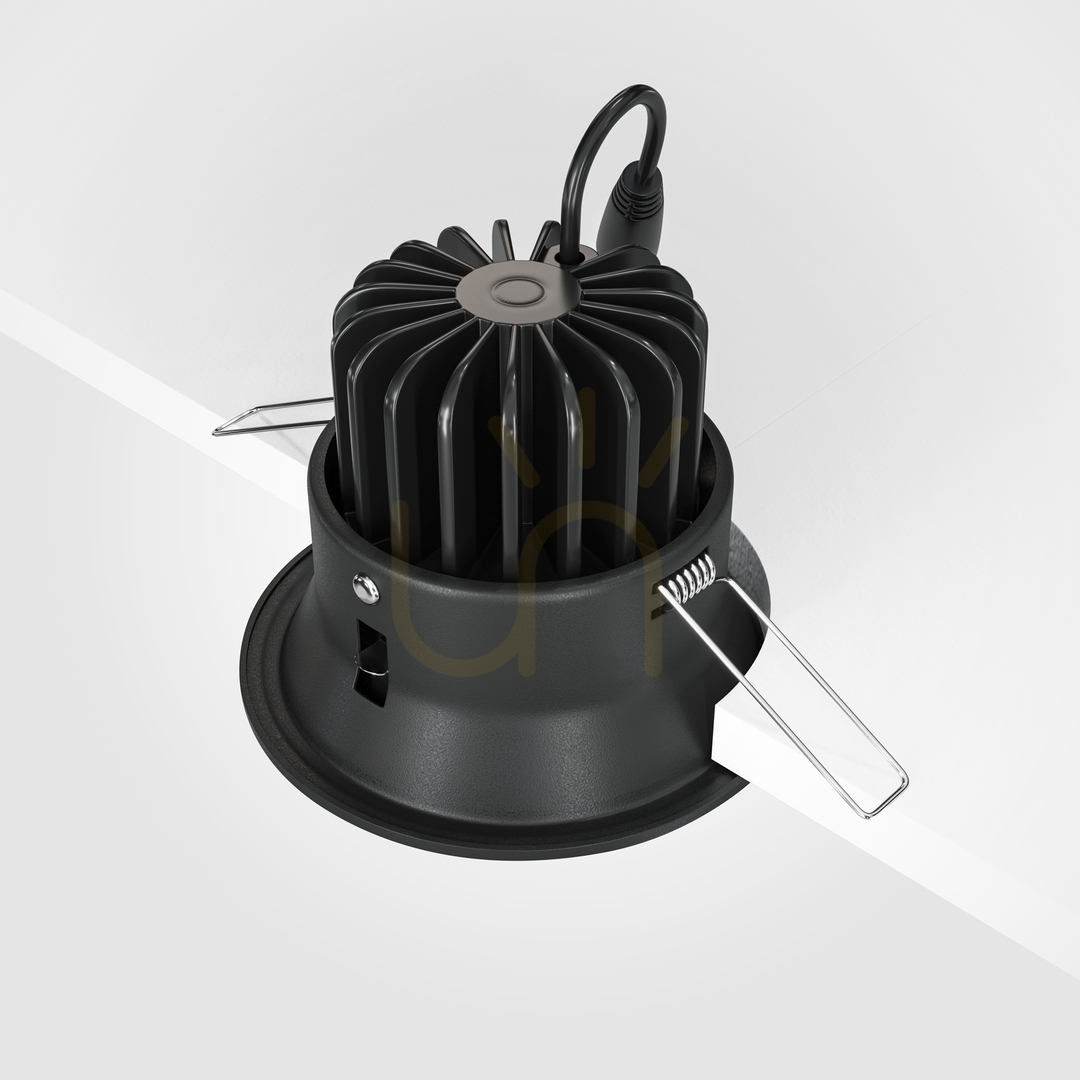

When replacing existing downlights, check the opening rather than simply comparing the visible rings. The rear photograph shows the heat sink and retaining springs. This is a recessed fitting, not a surface-mounted light for a solid ceiling. Its undecorated black circular form suits modern and minimalist schemes where individual light points form an ordered ceiling layout.

Neutral white light from this exact variant

The integrated LED is rated at 12 W, with a luminous flux of 820 lm and a colour temperature of 4000 K. This is the neutral white version, not the warm white 3000 K option also found in the Yin family. A colour rendering index of CRI 90 provides a useful comparison when choosing how lighting will render colours within an interior.

The 60° beam angle describes the distribution from one fitting; it does not promise uniform coverage of an entire room. In living rooms, dining rooms, bedrooms and circulation areas, plan the number and spacing of fittings around ceiling height and the surface to be illuminated. The same considerations apply to hotel and restaurant interiors.

Triac dimming needs compatible control

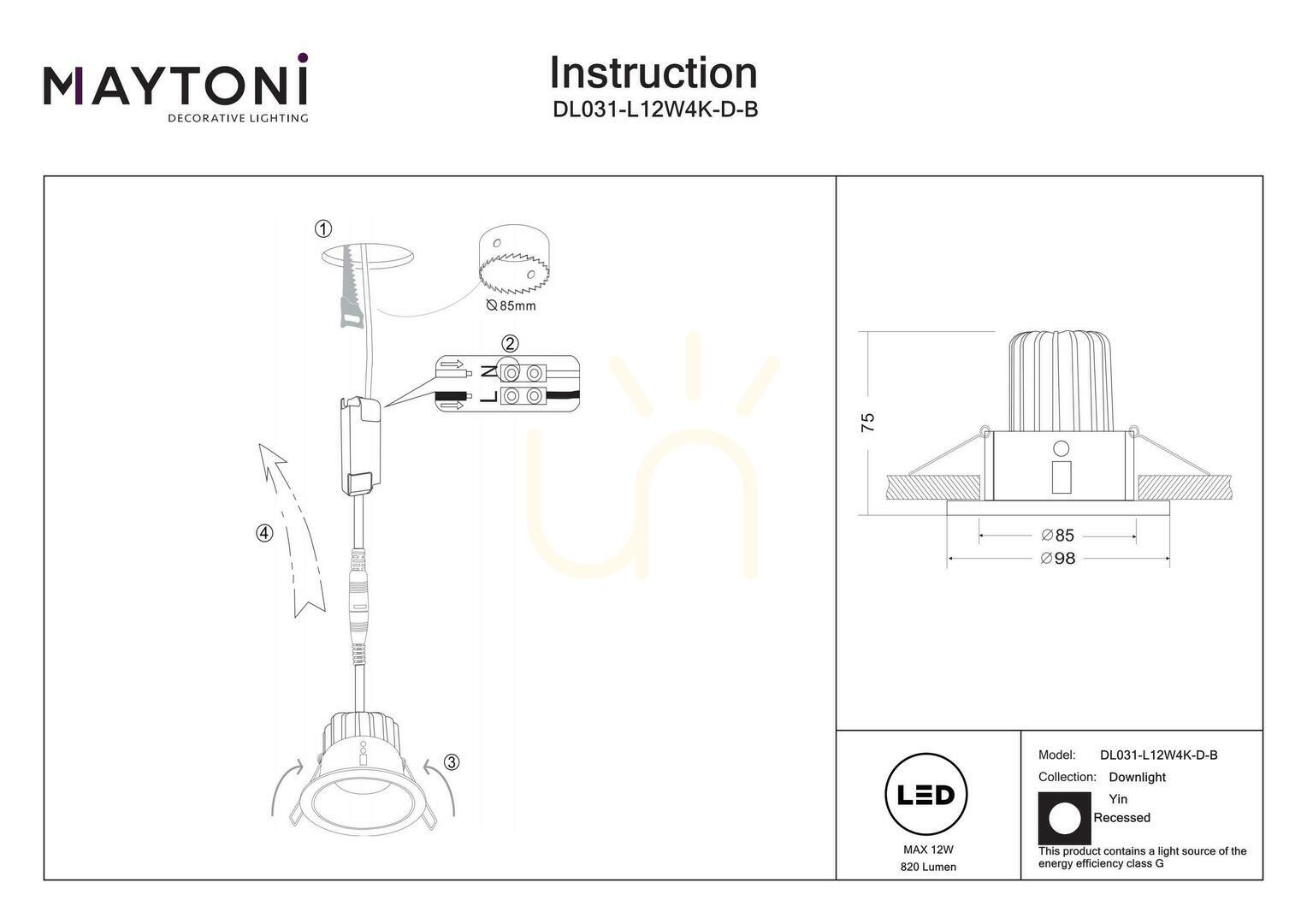

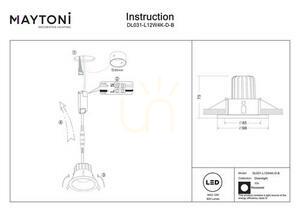

Article DL031-L12W4K-D-B identifies the dimmable Triac version. Its supply rating is 220–240 V AC at 50 Hz. For brightness adjustment, select a compatible LED dimmer and consider both the control method and the combined power of the fittings on the circuit. The manufacturer's instructions recommend checking the driver marking before selecting a regulator. This makes control compatibility a decision to resolve before installation, rather than assuming that any dimmer will work because the fitting is described as dimmable.
