Zambelis E346 graphite surface-mounted step light LED 6 W 3000 K Promo Code - ZAM10 until the end of Oct 30

Zambelis E346 is a graphite step light with a rectangular aluminium body and tempered glass. The lower part of its face has a recessed, sloping surface, with the light source visible along the upper edge of that opening. This gives it a different appearance from a uniformly illuminated panel; the straight-edged housing suits modern and minimalist exterior architecture.

Surface mounting on a wall

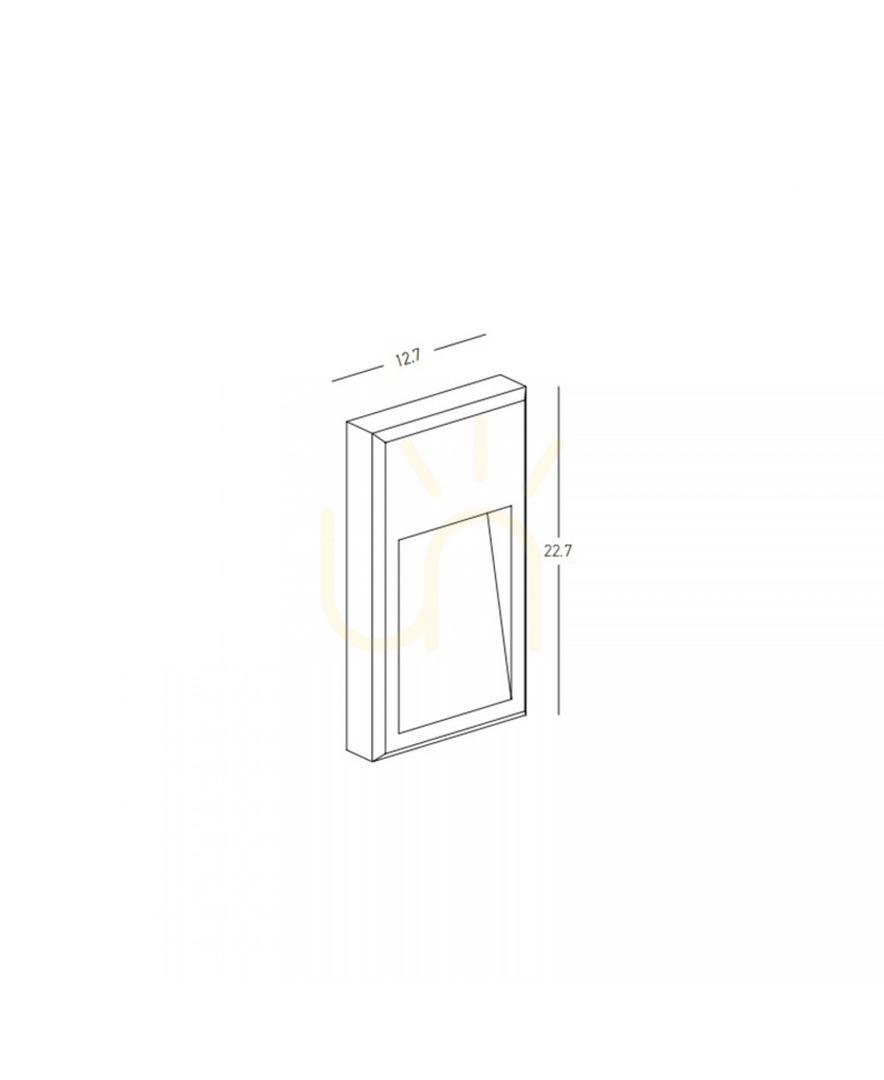

The body measures 22.7 cm high, 12.7 cm wide and 3.5 cm deep. Compare these dimensions with the wall space beside the steps and the position of the electrical supply before choosing a location. The housing projects from the wall, so allow for that projection when planning a passage.

E346 is surface mounted, not recessed into an opening sized for the entire body. The installation drawing shows the rear section fixed to the wall, followed by electrical connection and refitting of the front. The manufacturer's step-light category does not change this installation method.

A fixed warm-white LED source

The integrated LED is rated at 6 W, with a colour temperature of 3000 K and a declared output of 420 lm. This version has a fixed warm-white light colour rather than a colour selected through a separately purchased bulb. It is not dimmable, so a conventional dimmer should not be included in the lighting plan.

The fitting provides wall-mounted lighting beside steps and exterior circulation routes, including those at hotels and office buildings. For a run of several fittings, their spacing must be designed for the actual staircase; the body dimensions and lumen figure alone do not establish a suitable interval.

Electrical connection and servicing

IP65 means protection against dust and water jets. The 220–240 V fitting is Class I and requires an earth connection. Installation and maintenance should be carried out by a qualified electrician. The manual assigns replacement of the integrated light source to the manufacturer, its service agent or a similarly qualified person.
