Norlys Asker Big 1712GA is an outdoor wall light with a broad rectangular face made from hot-dip galvanised steel. Its silver-toned surface retains the irregular pattern of the zinc finish. Light leaves the fitting upwards and downwards rather than through the solid metal front.
Wall illumination with a horizontal profile

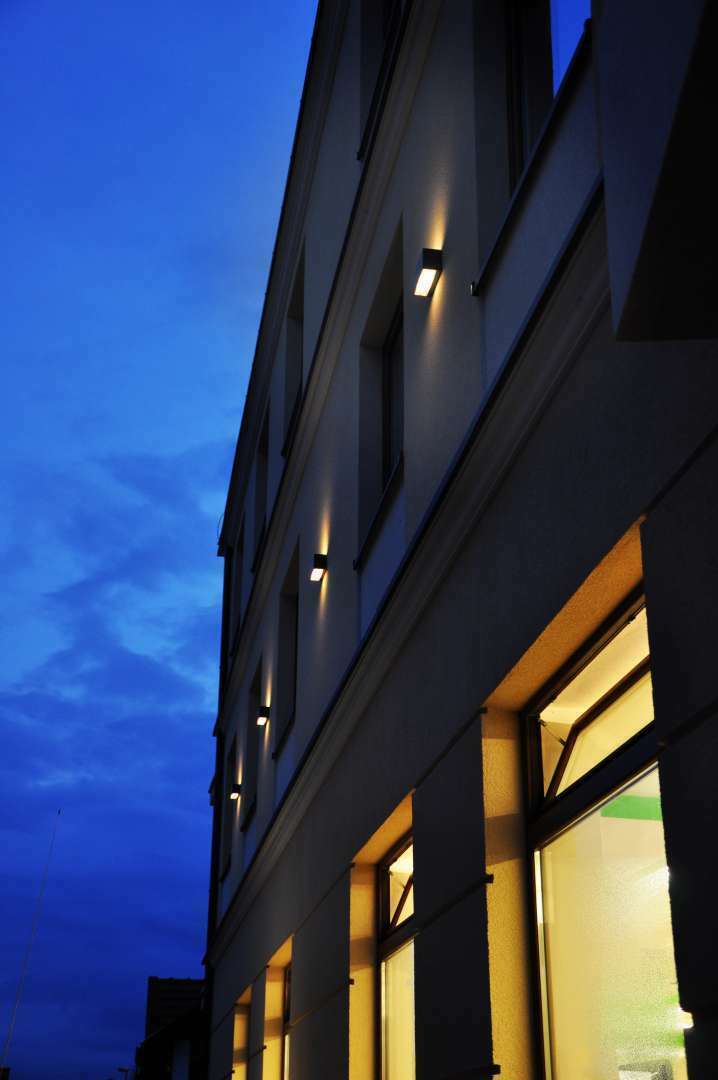

This arrangement is intended to illuminate wall surfaces and highlight architectural features. It can be used on a house façade, beside an entrance or on a terrace or balcony wall, as well as on the exterior of a hotel or restaurant. The plain face and geometric proportions suit modern, modernist and minimalist schemes. The visible galvanised texture can also work alongside industrial finishes.
The fitting measures 30 cm wide, 12 cm high and 12 cm deep. Compare these dimensions with the width of a pillar, the available wall area and the opening path of nearby doors or windows before choosing its position. This is a wall-mounted light, not a freestanding bollard for a garden path.
An E27 lamp you can replace
The 1712GA version takes an A55–A60 LED lamp with an E27 base and a maximum rating of 9 W. Brightness and colour temperature depend on the lamp selected; they are not fixed characteristics of this housing. The 9 W figure is a lamp limit, not the consumption of an already assembled lighting set. The manufacturer's option to order the fitting with a particular LED lamp should be distinguished from the standard version.
Construction and installation planning
Behind the steel face is a powder-coated cast-aluminium body. The clear, textured cover is UV-stabilised polycarbonate, with a silicone seal and an EPDM cable gland forming part of the construction. The specified ratings are IP44 and IK08, not IP65. The fitting uses 220–240 V AC and is Class I, so a protective earth connection is required. When replacing an existing wall light, check the fixing centres: 45 mm with the intermediate mounting plate or 68 mm for direct mounting. This lets you compare the fitting with existing holes before installation starts.
