Cobalt Electro PLV-60-24-B constant-voltage LED power supply 24 V 60 W IP20

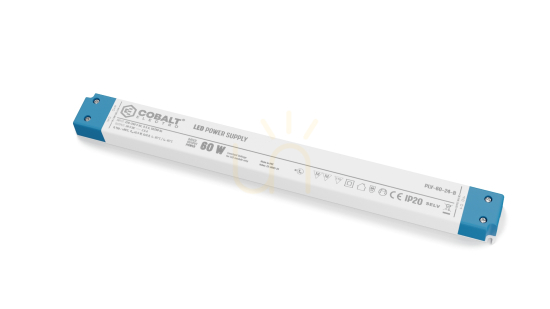

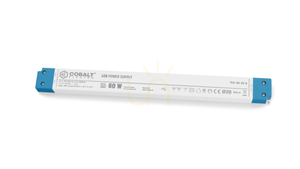

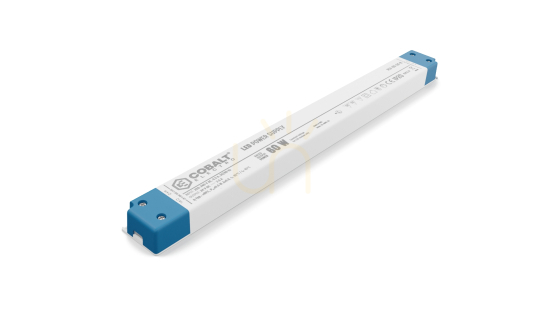

Cobalt Electro PLV-60-24-B is a constant-voltage LED power supply rated at 60 W with a 24 V output. Its long housing has blue end caps and measures 305 mm in length, while the nominal height is just 17 mm. Check the available length as well as the height when planning its position.

Matching a 24 V LED load

This version provides 24 V DC with an output current of up to 2.5 A. It is intended for LED modules requiring constant-voltage power, not as a substitute for a 12 V supply or a constant-current driver. Compare the operating voltage and combined power demand of the intended loads with this particular version before ordering. The 60 W rating describes electrical output capacity, not the brightness of the connected lighting.

The specified input range is 198–264 V AC at 47–63 Hz. Distinguishing the mains input from the 24 V DC output matters when planning the circuit: LED loads connect to the output side in accordance with the manufacturer's wiring diagram. Matching the wattage alone is not enough if the required voltage differs.

Allow space for cooling

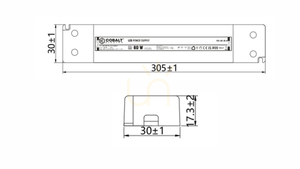

Nominal dimensions are 305 × 30 × 17 mm. A low, narrow enclosure does not mean the supply can be sealed into any available recess. Cooling relies on free air circulation, and the datasheet specifies an operating temperature range of −20 to +45°C. Assess the thermal conditions of the proposed mounting location as well as whether the housing physically fits.

A component for specialist installation

The manufacturer states that this component is not intended for installation by the end user. Short-circuit, overcurrent, overvoltage and thermal protection are provided, alongside a five-year warranty. These protections do not replace correct load selection or proper installation. This is a power component rather than a decorative luminaire, so electrical compatibility and mounting conditions take priority over room style.
