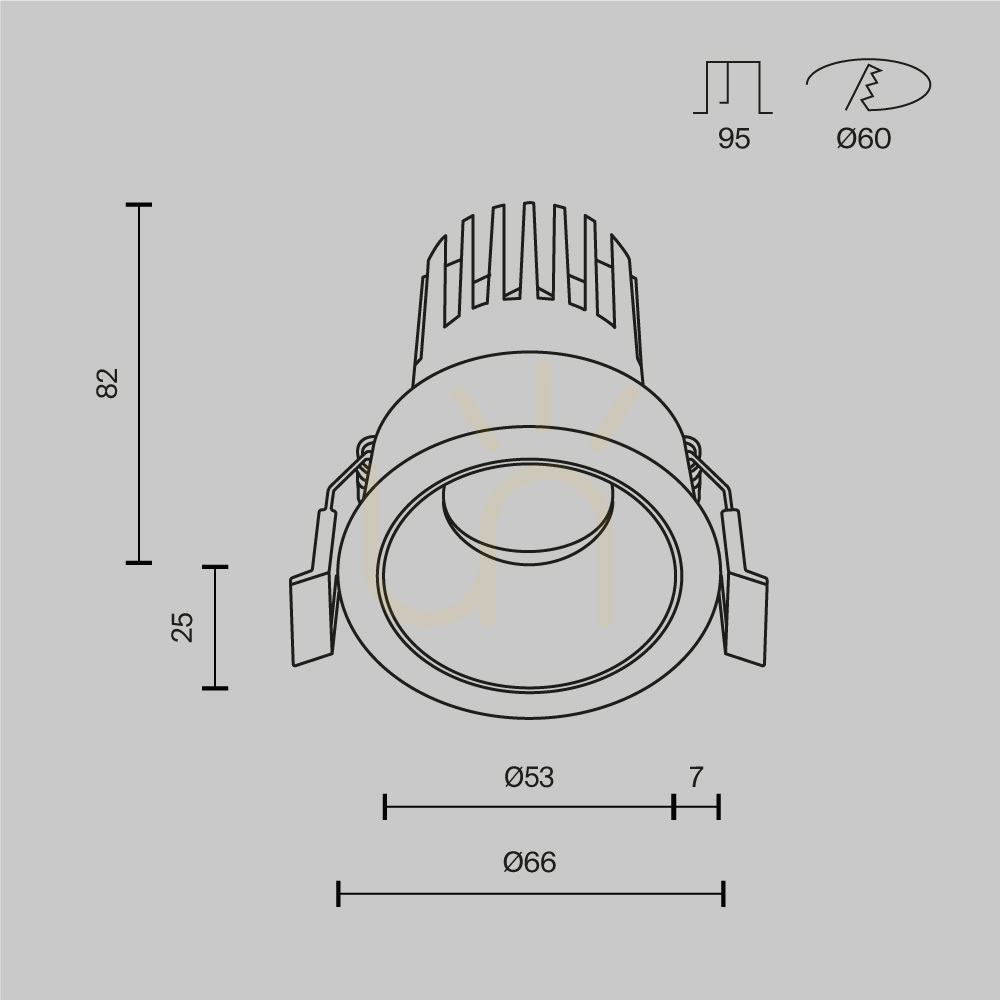

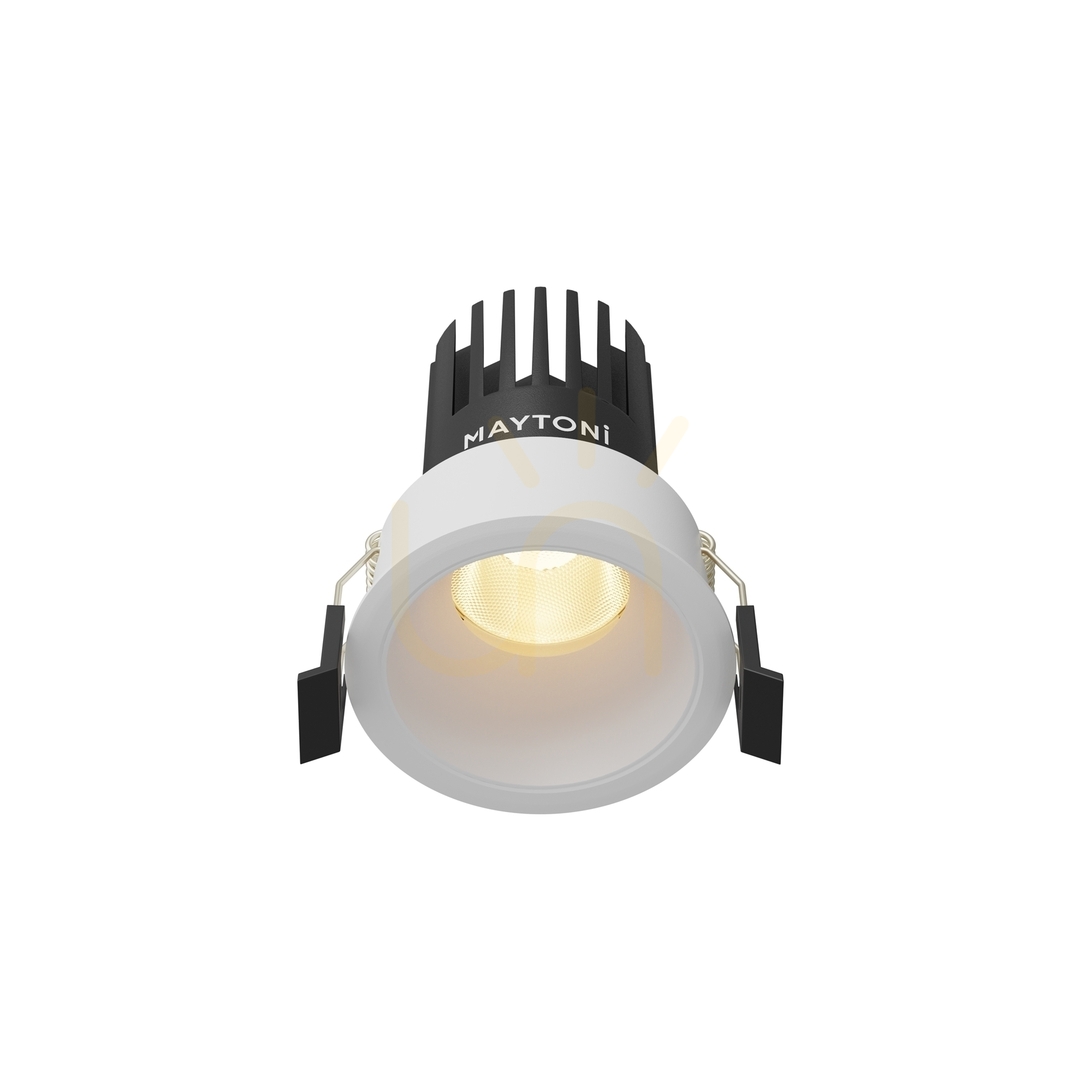

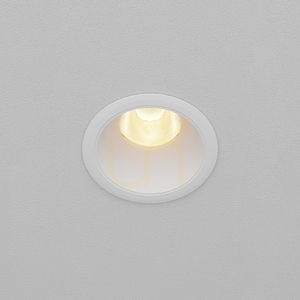

Maytoni DIP DL115-10W-2.7K-W is a white, round recessed luminaire with an integrated LED module. Its aluminium trim is 66 mm in diameter and the body is 82 mm high. The model code is DL115-10W-2.7K-W and it belongs to the Dip series; compare these measurements with the available ceiling space before purchase.
Size and installation

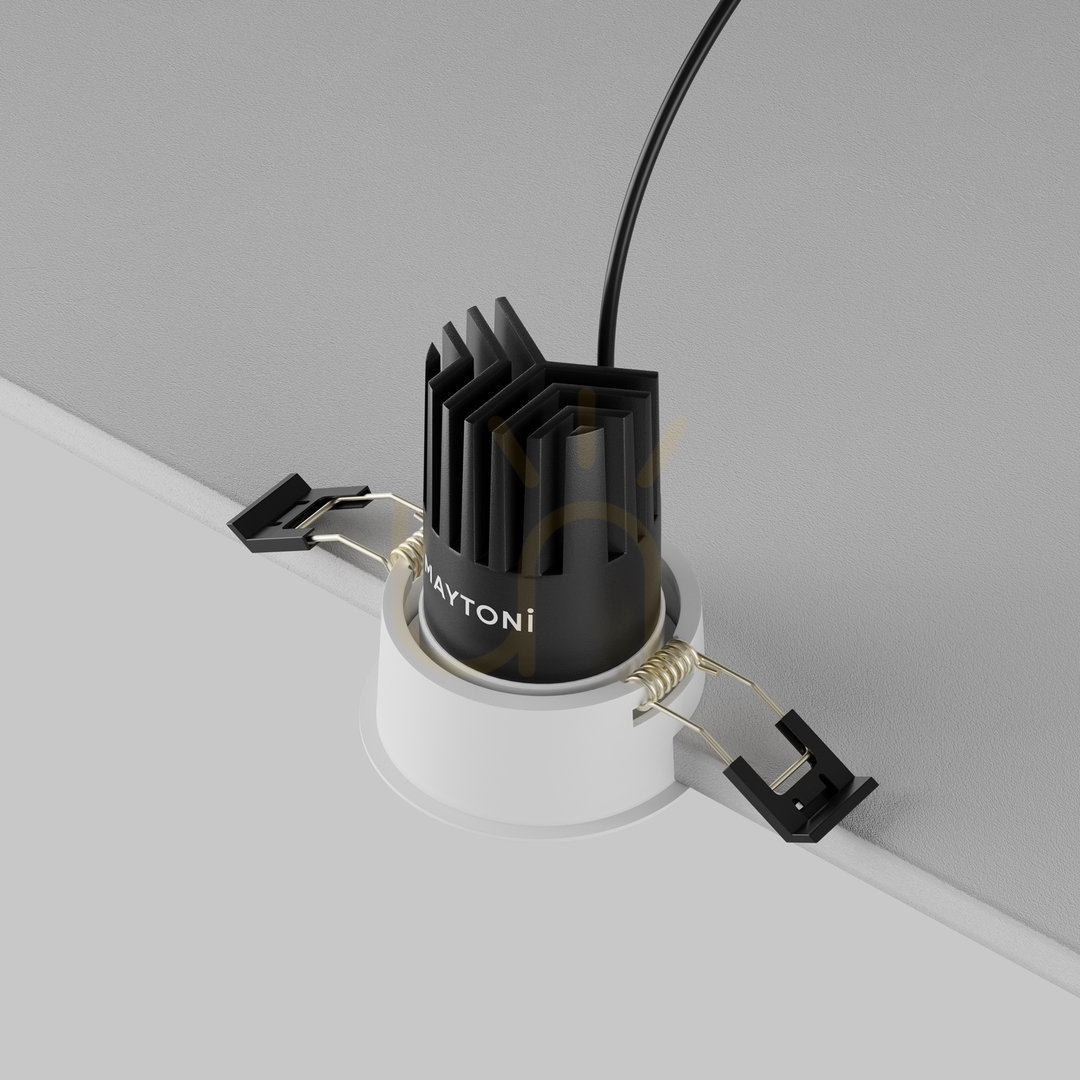

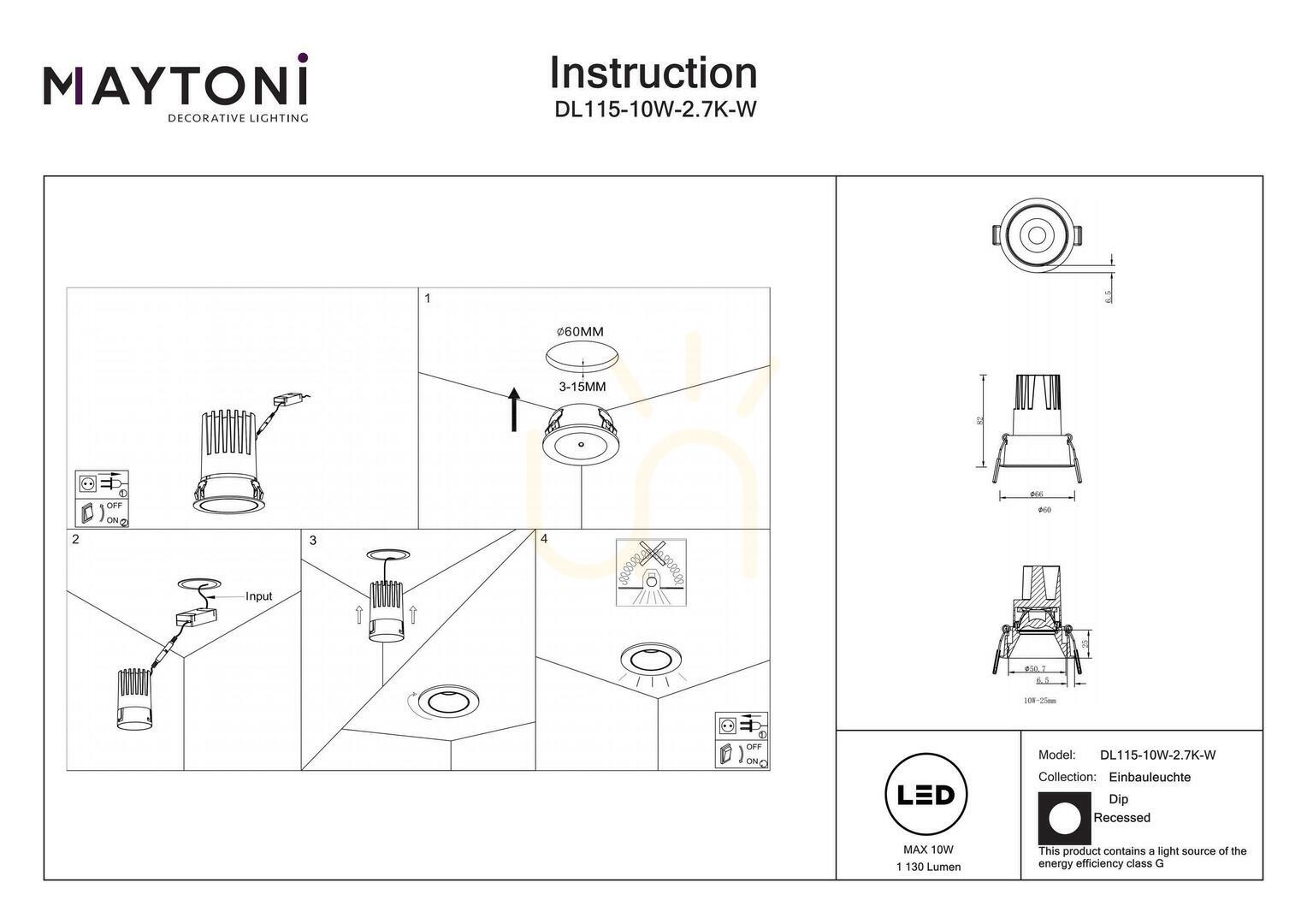

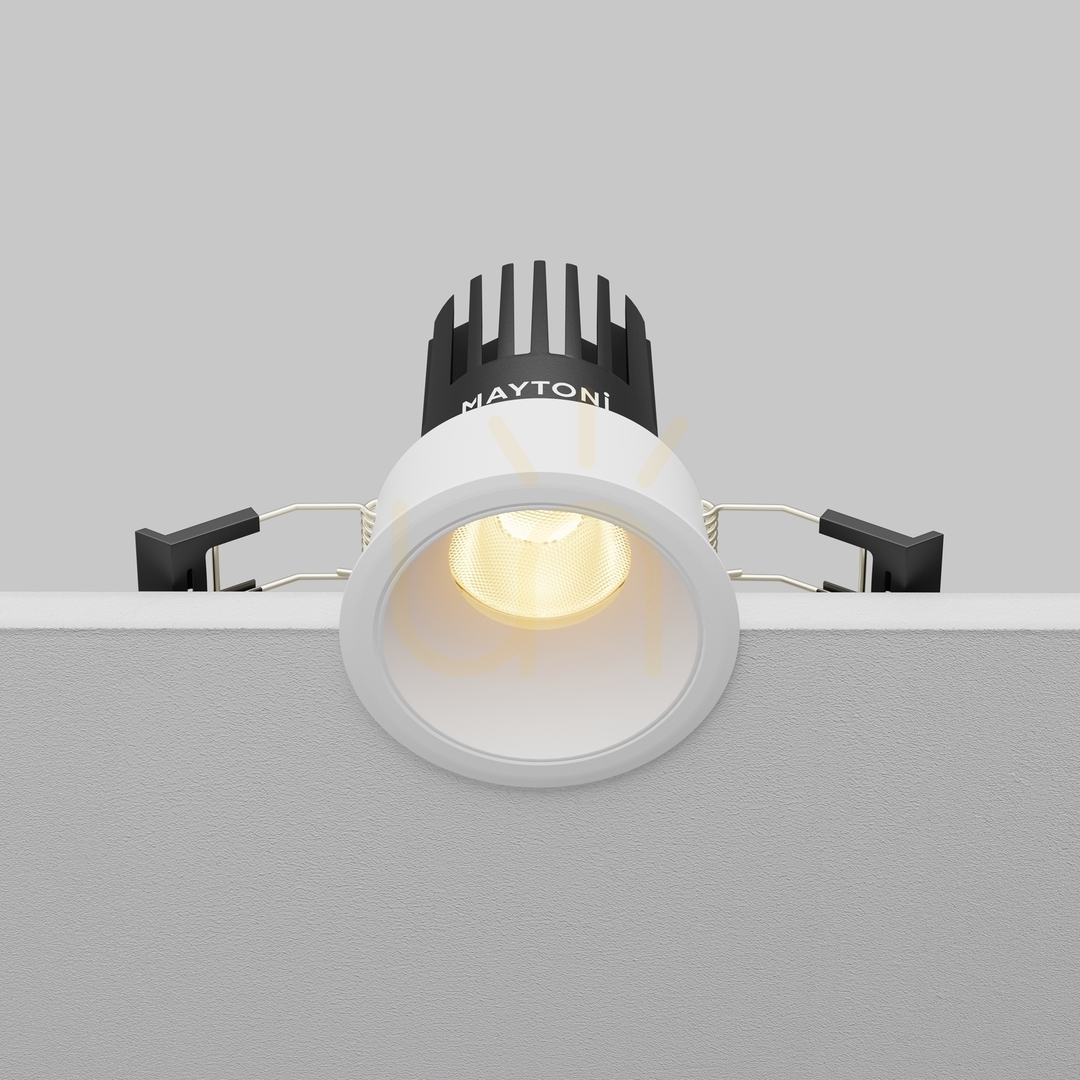

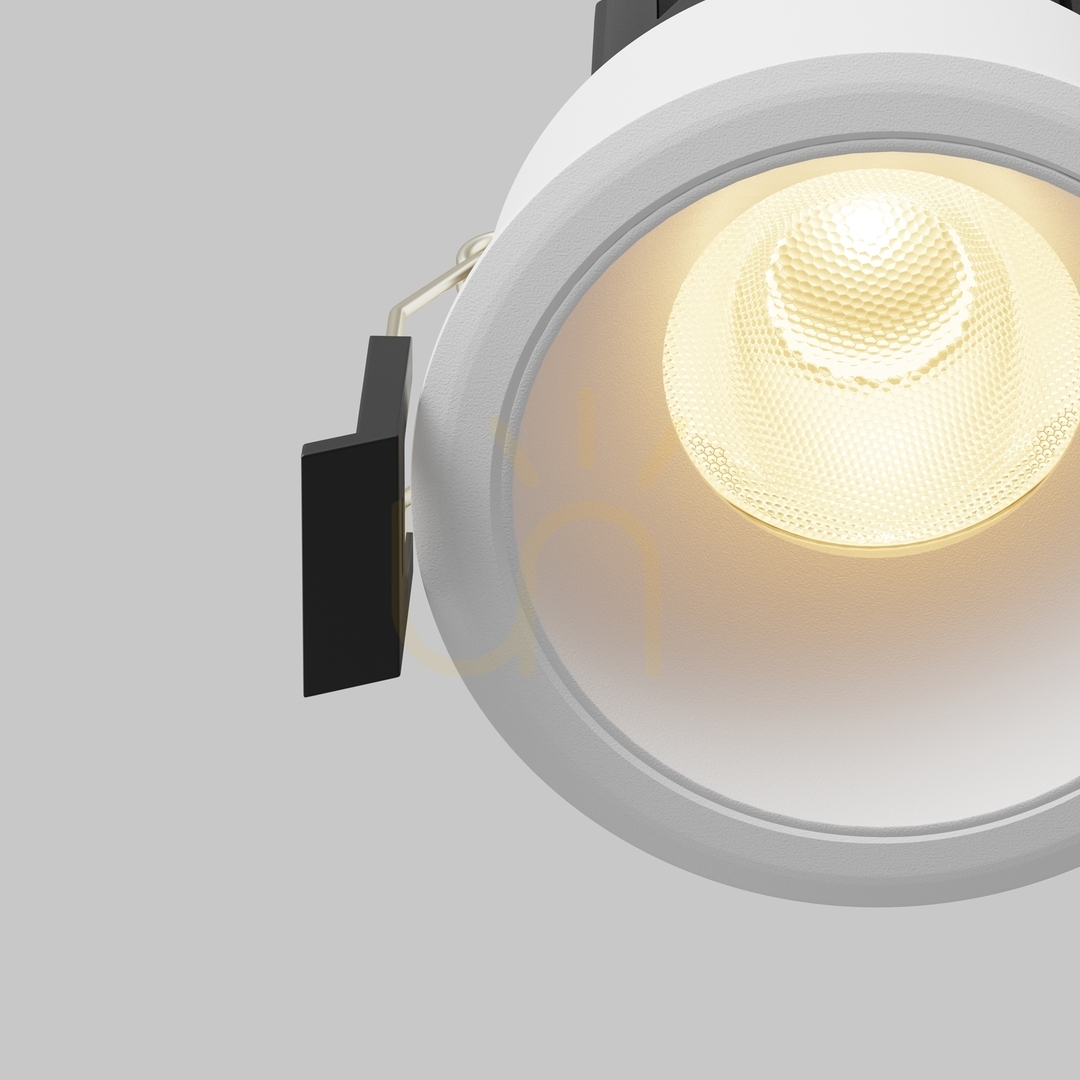

This fitting is designed for recessed installation. The manufacturer specifies a round 60 mm cut-out and a 95 mm mounting depth; the data also lists an 84 mm dimension, so the clearance above the ceiling should be checked against the technical drawing. The spring clips visible in the gallery secure the fitting in the cut-out. The white trim remains on the ceiling face, while the black heat sink sits above it.
Light and power
The integrated 10 W LED produces 2700 K light. Maytoni states a luminous flux of 1130 lm, a CRI of 90 and a 50° beam angle. These figures describe this single luminaire and do not replace a layout calculation for several light points. It operates from AC 220–240 V, 50 Hz and has protection class II.
Points to consider
The fitting is rated IP20 and is not dimmable. Its light source is integral to the luminaire, so no separate bulb with a socket is selected. The manufacturer lists energy-efficiency class G, a 30,000-hour service life and a five-year warranty. Net weight is 0.24 kg and gross weight is 0.27 kg. DIP suits a compact recessed lighting point where warm light and a defined beam angle are required.
