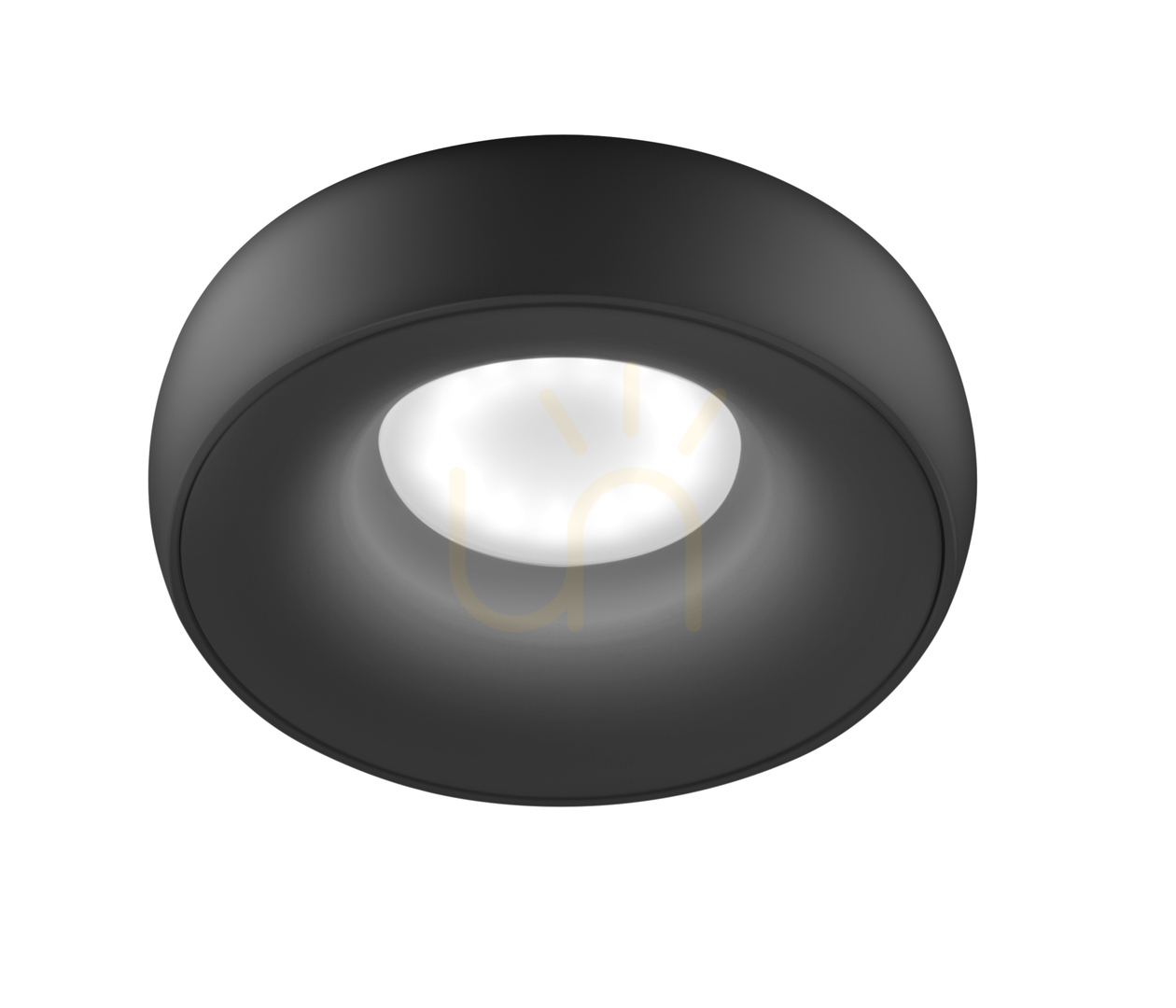

Gea Luce GFA1171 is a round aluminium recessed fitting with a matt black finish. Its light source sits back inside a broad, smoothly profiled surround. This is not a flat trim with a lamp face almost level with the ceiling: the recessed opening and substantial black rim give the fitting a distinct visible profile.
Plan the opening separately from the outer diameter
The outside diameter is 98 mm, while the required ceiling cut-out is 70 mm. These measurements describe different things and should not be interchanged when preparing the ceiling. The manufacturer's drawing also shows 65 mm above the mounting plane and 25 mm below it.
The black surround therefore remains visible beneath the ceiling rather than disappearing completely into it. Compare the space above the ceiling with the installation drawing and allow for the supply cable layout. The instructions show spring-clip mounting, not suspension from a cord.
One GU10 lamp, chosen for the required light
The fitting accepts a single GU10 light source rated at no more than 50 W. Light colour, luminous flux and beam angle depend on the lamp selected. They are not fixed characteristics of the black housing, and the fitting should not be treated as an integrated LED module with a specified output. Choose the lamp to suit the intended lighting arrangement as well as the socket and power limit.
The manufacturer specifies 220–240 V AC at 50/60 Hz and protection class I. Qualified personnel must install and connect the fitting in accordance with the instructions, with the mains supply switched off before work begins.
A defined circular detail in the ceiling
The plain geometry and absence of decorative elements suit modern and minimalist interiors. This ceiling fitting can be considered for living rooms, bedrooms, kitchens, hallways and corridors; the number of fittings and lamp selection should follow the lighting design. For cleaning, the manufacturer recommends a damp cloth with mild detergent, followed by gentle drying. Keep water and detergent away from cables and electrical components.
