Hermetic Junction Box 4x5Pin Black Tee 0.5-2.5mm2 Wire diameter 8-12mm IP68 V-TAC VT-870

Hermetic Junction Box V-TAC VT-870 – 4x5-pin, Tee, IP68

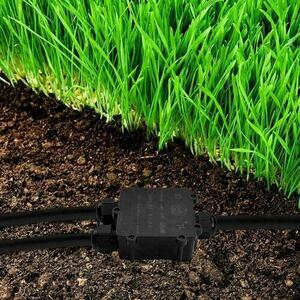

The VT-870 hermetic junction box provides a durable, watertight connection for electrical cables outdoors – for example when connecting LED floodlights, garden fixtures or other installations exposed to moisture. It is made of high-quality, UV-resistant polycarbonate (PC), staying durable even under prolonged sun and rain exposure.

Technical specifications

• Connector type: 4x5-pin, tee (T) configuration
• Permitted wire cross-section: 0.5–2.5 mm²
• Cable insulation diameter: 8–12 mm
• Maximum load: 24 A, 450 V
• Protection rating: IP68 – can be installed at a depth of up to 4 m
• Housing material: polycarbonate (PC), black colour
• Dimensions: 126.8 × 93.3 × 35.3 mm
• Weight: 0.14 kg
• Certifications: CE, TÜV
• Manufacturer's warranty: 2 years

Installation

The box can be installed either vertically or horizontally. It's fully compatible with V-TAC LED floodlights, but works anywhere a safe, watertight cable connection is needed outdoors.
