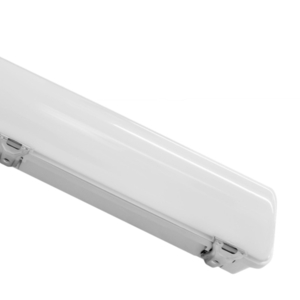

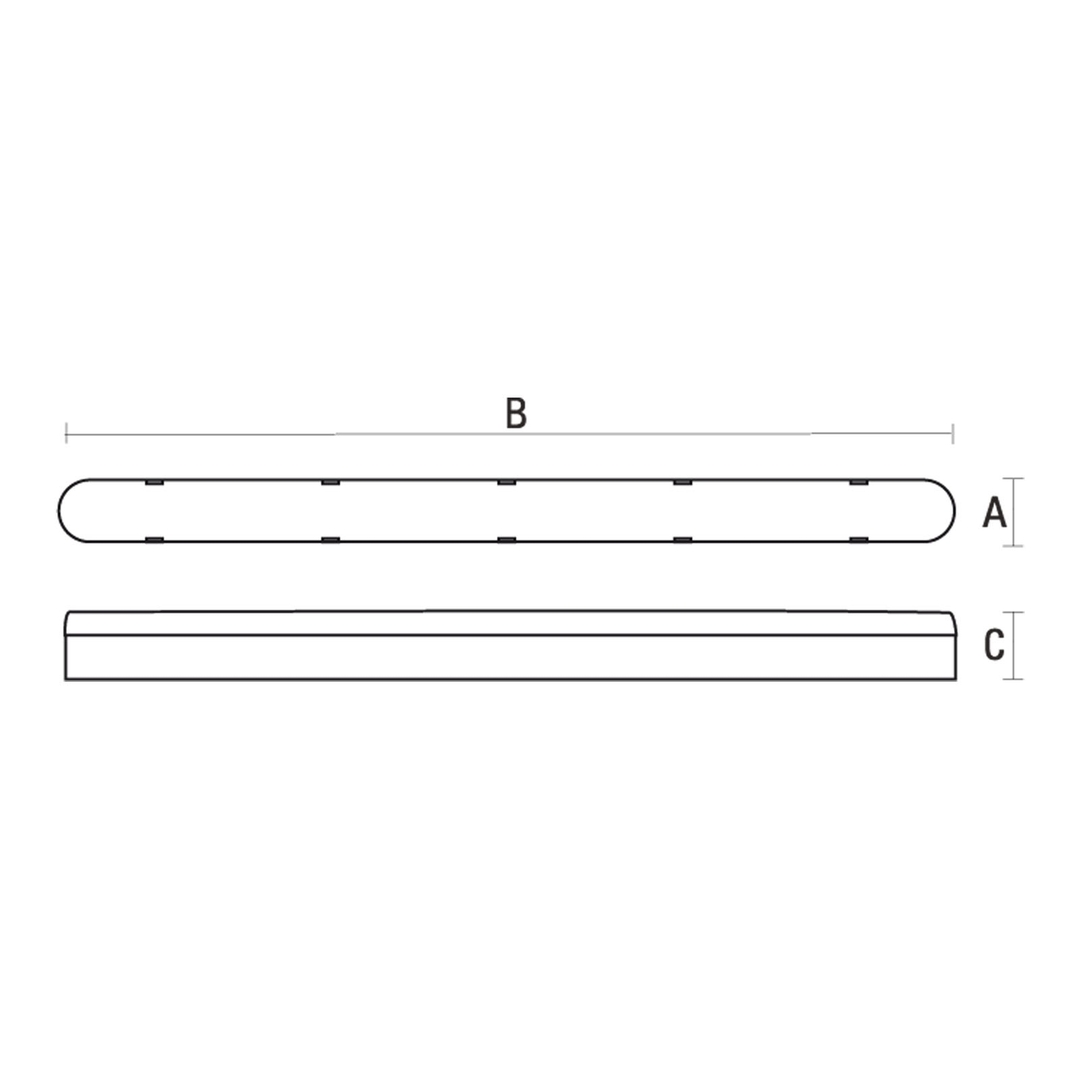

LIMEA LED SMD 5630 is a waterproof linear batten with a grey plastic housing closed by a clear diffuser. It is 675 mm long, 83 mm wide and 38 mm high. The LED module and the driver are included, so the batten connects straight to 230 V mains.
Where it can be installed
IP66 means a dust-tight housing that withstands powerful water jets. The manufacturer allows use indoors and outdoors at operating temperatures from -20 to +40 °C, a range worth comparing with the conditions in an unheated garage or on a covered terrace in winter.
The batten can be screwed directly to the ceiling or suspended. It is a protection class I fitting, so it must be connected to the protective earth. At 67.5 cm long, check that the ceiling or beam has a clear run of that length.
How much light and what kind
The batten draws 24 W and delivers 2400 lm, roughly as much as three old 60 W bulbs, at 100 lm/W. 4000 K is a neutral white that suits work and finding your way around, and CRI 80 is enough for general lighting. The 120° beam spreads the light widely beneath the fitting, so it lights a whole space evenly rather than picking out one spot.
The batten cannot be dimmed and works only on/off. The manufacturer states a service life of 50,000 hours and 25,000 switching cycles, which matters where the light is switched on many times a day.
Which spaces it is meant for
The sealed housing and wide beam suit a garage, basement, workshop, or a hall or warehouse. Thanks to IP66 the batten can also light a balcony, terrace or garden gazebo.
