The black lacquered LUMINES LARGO M2 is a mounting profile designed to accommodate a power supply within the LARGO linear lighting system. Variant 10-0735-10 is 1 m long. It should not be confused with the LARGO LED profile itself: M2 forms the mounting section rather than the compartment that holds the LED strips.
A power supply space within the LARGO assembly

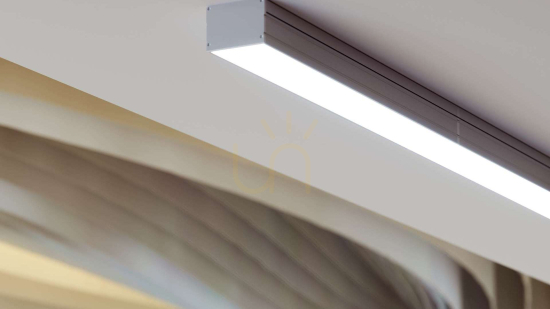

M2 allows the power supply to be planned within the lighting construction instead of treating its enclosure as an entirely separate installation element. The manufacturer illustrates a connection to the LARGO profile and SUPER WIDE diffuser. These diagrams explain the assembled system, not the package contents of this mounting profile section.
When choosing a power supply, compare its actual dimensions with the space allocated in your design. The external profile dimensions are not its usable internal dimensions. Compatibility with the LARGO family also does not establish compatibility with arbitrary LED profiles.

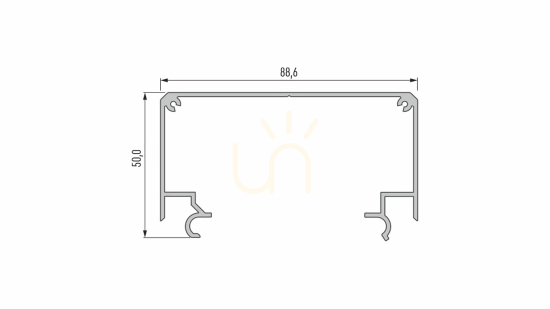

One-metre section with an 88.6 × 50 mm cross-section
The external width is 88.6 mm and the height is 50 mm. These measurements describe M2 alone; adding the light-bearing profile requires allowance for the complete assembly. The 1000 mm length distinguishes this item from the longer sections in the same family.
Choosing the correct end treatment
The rectangular section and straight black surfaces suit modern, minimalist linear constructions. The manufacturer lists separate end caps for M2 and for a combined LARGO and M2 assembly, with and without openings. Select them for the intended end configuration, not colour alone. Lighting performance depends on the design and selected light-producing components, not on this mounting profile.
