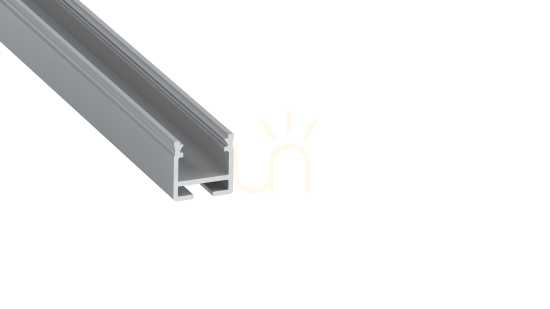

LUMINES profile type FLEXA silver anodized 3 m

LUMINES FLEXA is a 3 m silver anodised aluminium LED profile for surface mounting. It belongs to the FLEXA system and is used to create curved light runs; the profile by itself is not a complete luminaire.

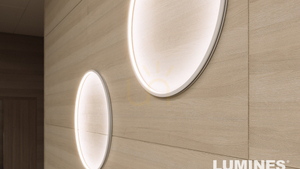

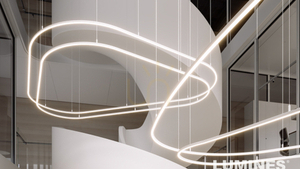

FLEXA profile for curved runs

The construction can be bent in two planes. For horizontal bending with a BASIC FLEX cover, the minimum radius is 475 mm. For vertical bending with a BASIC cover, it is 360 mm inward and 250 mm outward; with a BASIC FLEX cover it is 360 mm and 175 mm respectively.

Those radii apply to the stated covers and carry a ±5% tolerance. Bent profiles are supplied only in a lacquered finish. Treat this silver anodised length as a straight profile where the design requires bending.

Check before ordering

Compare the 3 m length with the planned installation run and joint positions. The profile is surface mounted. A complete lighting system requires compatible FLEXA parts, including the appropriate cover, LED strip and end caps selected for the project.

The silver anodised aluminium leaves a visible technical finish. This profile suits architectural installations where the light path and the compatibility of every component are decided before installation.
