Specialized LED profile for surface mounting, designed to bend in both planes. Enables the creation of continuous, curved lines of light that precisely match the geometry of architectural forms, without degrading the mechanical, optical or aesthetic performance of the luminaire. The system provides for the use of connectors and overhead mounting, which ensures high configuration flexibility and easy integration into different types of spaces.
Table of minimum bending radii of LUMINES profiles
— Type of bending — Direction of illumination (position of the lampshade in the luminaire) — FLEX diffuser — PMMA/PC diffuser
— horizontal (transverse) — downward — 475 — -
— vertical — inward — 360 — 360
— vertical (upright) — outward — 175 — 250
Minimum bending radii in mm for a given lampshade. The maximum diameter of the circle is 1850 mm (from a 6 m profile). Tolerance: +/- 5%. Technology tips: 250 mm. The bent profiles are available in lacquered version only. Bending service available by contacting the service office in advance.
Horizontal bending FLEXA profile with BASIC FLEX diffuser

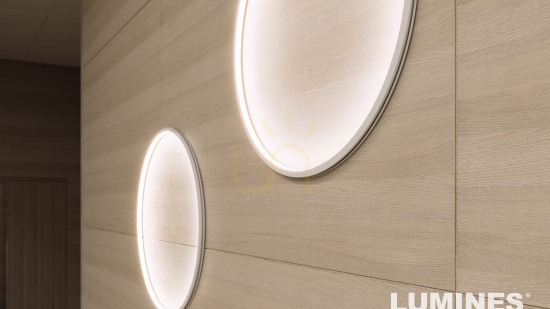

Vertical bending FLEXA profile with BASIC diffuser Direction of light: outward
Vertical bend FLEXA profile with BASIC diffuser Direction of light: inward
Comparison of FLEXA profile bent horizontally with FLEXA profile bent vertically (light direction: inward)
Installation instructions for FLEXA profile with BASIC lampshade using slings

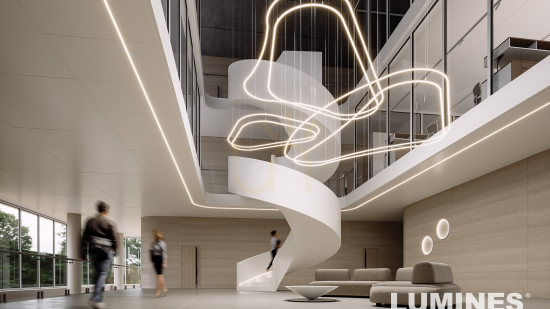

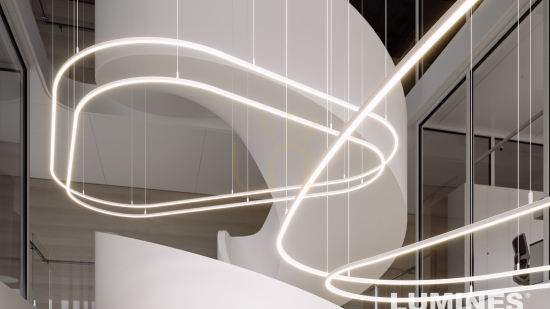

Final result of installation of FLEXA profile with BASIC diffuser using slings
Diagram of the assembly of the components of the lighting system using FLEXA profile, BASIC lampshade, LED strip and plugs
The profile is a FLEXA-system component, not a complete luminaire. Select the LED strip, cover, end caps and accessories separately for the intended configuration.
