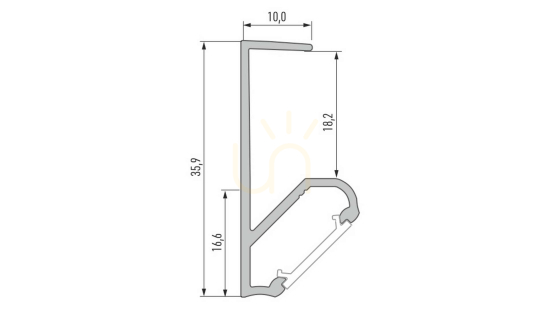

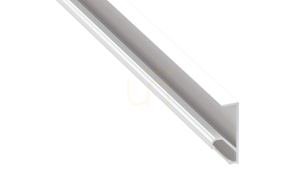

The LUMINES Q18 LED profile in white lacquered RAL 9016 is designed for the edge of shelves and furniture panels measuring 18 mm thick. Variant 10-0691-20 is 2.02 m long, with an angled cross-section that directs light at 45°. It is a furniture-lighting component rather than a complete lamp with a fixed light colour or brightness.
Match the panel thickness as well as the length
Q18 slides onto the edge of the panel. The 18 mm designation refers to the furniture panel thickness, so check that measurement before selecting the profile. The similarly named Q20 is intended for a different panel thickness and should not be treated as an interchangeable version.
The 2020 mm section allows a lighting line to be planned along a shelf edge. Compare the full 2.02 m length with the furniture dimensions rather than relying on the rounded 2 m designation. The manufacturer's installation diagrams show double-sided mounting tape or mounting adhesive, together with the routing of the supply cable through the assembly.
Choosing a strip and BASIC cover
The channel accommodates an LED strip up to 12 mm wide. Compatible BASIC covers are available in PMMA and PC; select the particular cover by its designation and the desired light transmission. The documentation treats the profile, LED strip and cover as separate parts of the lighting system. A list of compatible accessories does not establish the contents supplied with this variant.
Light colour, luminous flux and control depend on the selected electrical components, not on the white profile. Space for the power supply needs to be planned outside the profile.

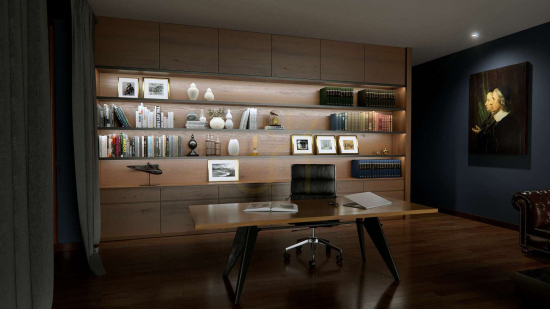

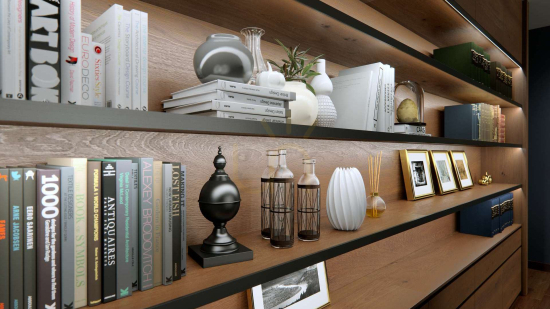

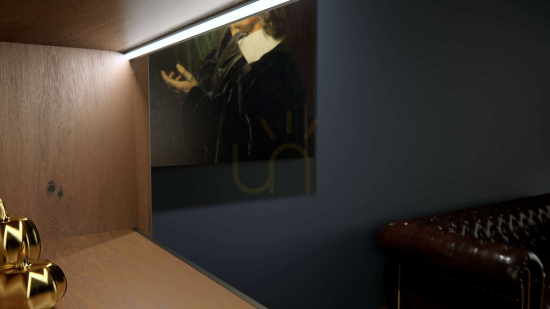

Directional lighting for shelves and cabinets
The 45° geometry is intended to illuminate shelf and cabinet interiors rather than send light only perpendicular to the panel. Its furniture application also includes kitchen cabinetry. A straight line with no decorative detailing suits modern, minimalist furniture finishes. This white lacquered version is distinct from the silver, black and inox finishes in the same family.
