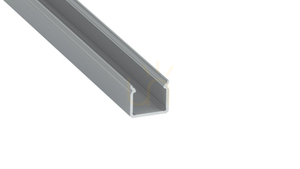

LUMINES SEI 10-1784-20 is a silver anodized aluminium profile for building linear LED lighting. This variant is 2.02 m long, with a rectangular cross-section, an open channel for the LED strip and shaped side edges that accommodate the compatible LEAN cover.
Allow for the actual length

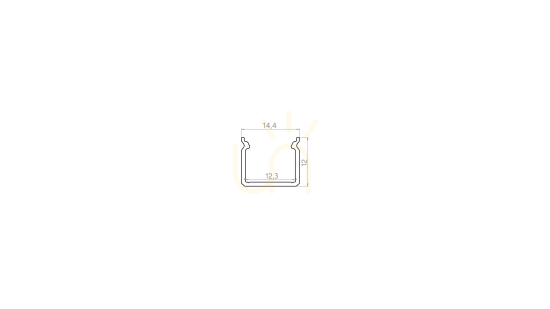

The manufacturer's specified length is 2020 mm, rather than the rounded description of 2 m. Use that measurement when comparing the profile with the available installation space. Its outer width is 14.4 mm and its height is 12 mm; the technical drawing shows an internal dimension of 12.3 mm. SEI accepts LED strips up to 12 mm wide. Check the strip's width before choosing it, and compare the outer profile dimensions with the intended mounting position rather than using the internal channel measurement for both purposes.
A surface-mounted furniture profile

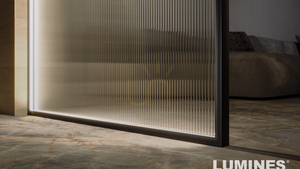

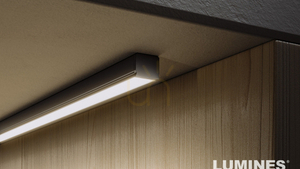

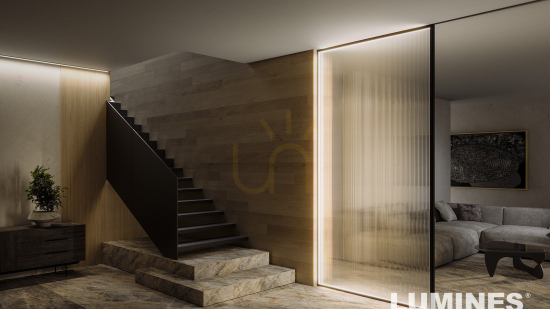

SEI is intended for surface mounting in furniture. The manufacturer also identifies suspended interior installations as an option for decorative lighting. The documented mounting methods include screws, mounting clips and double-sided tape, with suspension accessories available within the system. Select the mounting arrangement to suit the installation; SEI should not be specified as a recessed profile requiring a routed furniture groove.
Choose components for the SEI system
The compatible LEAN polycarbonate cover is offered in transparent, frosted and milky versions. End caps and mounting accessories are also listed for SEI. Check compatibility by system, since a similar width alone does not make another profile's components interchangeable. The power supply is positioned outside the profile, so its location needs to be considered as part of the lighting layout.
The straight metal form and silver anodized finish suit modern, minimalist furniture detailing. This is a system component rather than a complete luminaire with a fixed colour temperature or brightness. Those lighting characteristics depend on the selected LED strip and the rest of the installation.
