Mantra BAKER 7017 dark grey outdoor LED wall light 16 cm 6 W 3000 K

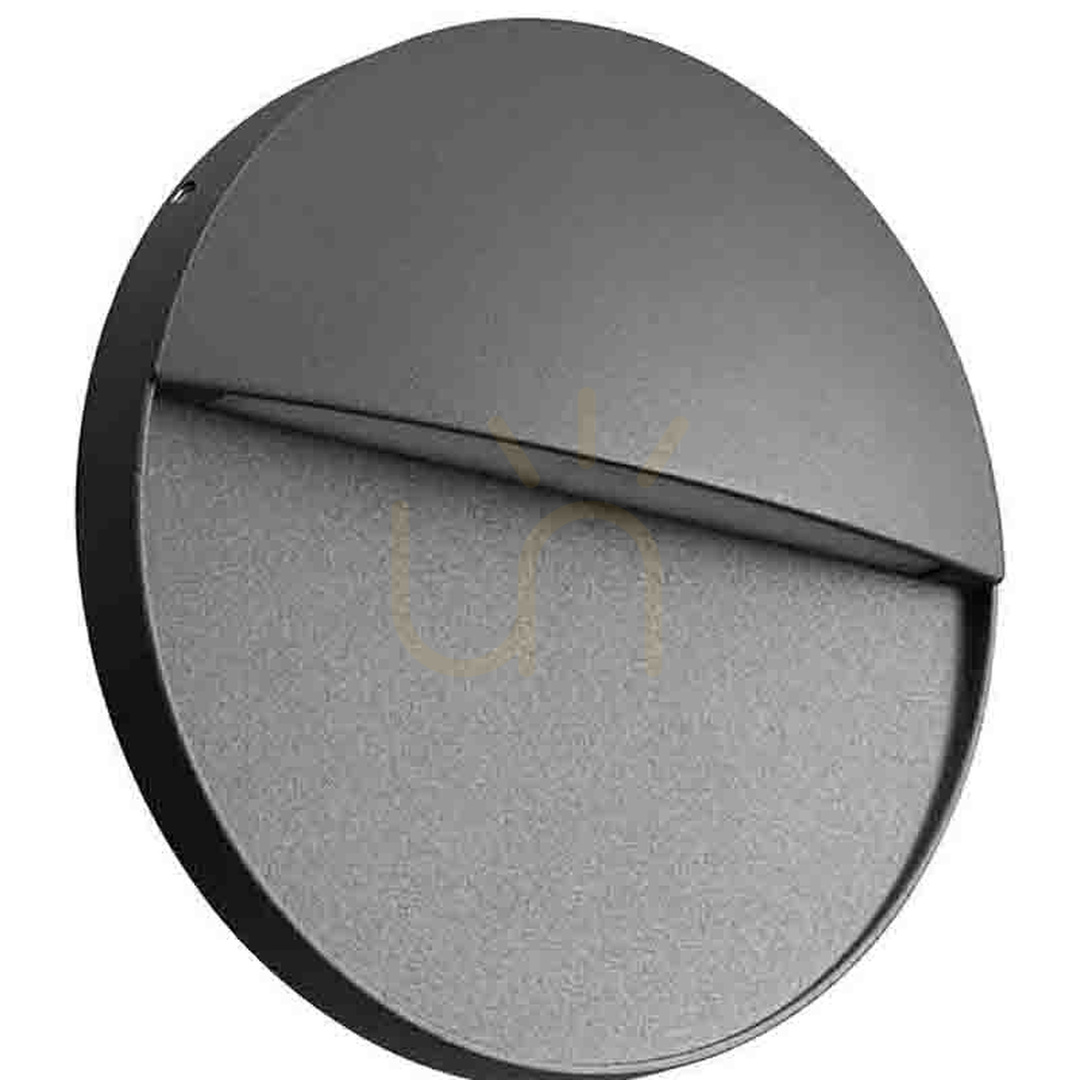

Mantra BAKER 7017 is a round outdoor LED wall light in dark grey RAL 7024. Its solid upper cover shields the light source, while a horizontal edge divides the circular face. Aluminium and polycarbonate form a shallow disc rather than a fitting with an extended arm.

A 16 cm circle with a 3 cm projection

The manufacturer's drawing gives a diameter of 16 cm and a depth of 3 cm. The diameter describes the wall area occupied by the fitting; the depth describes how far its front projects from the mounting surface. When planning several lights beside steps or along a wall, allow for both measurements rather than reading 3 cm as the width.

BAKER is designed as a wall-mounted marker light. It can be considered for a facade, boundary wall, terrace or balcony, or alongside stairs with a suitable mounting surface. The shallow profile is relevant near circulation routes, although the actual position and electrical installation still need to be checked.

Fixed warm white from an integrated LED

Reference 7017 has a 6 W LED source, a luminous flux of 420 lm and a colour temperature of 3000 K. This is warm white, not a selectable colour setting. The covered construction directs light towards the lower surroundings, as shown in the official photographs. Its marker-light role makes it a supplement to other lighting rather than an automatic substitute for lighting an entire terrace.

The LED is integrated and listed by Mantra as non-replaceable. There is no separate bulb to choose, but equally no user-accessible screw socket for changing one. BAKER is not dimmable. It operates at 220–240 V and is protection class I, requiring a correctly connected protective conductor.

A restrained disc for contemporary exteriors

The dark grey circle, plain cover and horizontal opening support modern and minimalist architecture. IP54 protection supports outdoor use, but does not make this an immersible light. Choose its position according to the installation conditions as well as the appearance of the wall.
