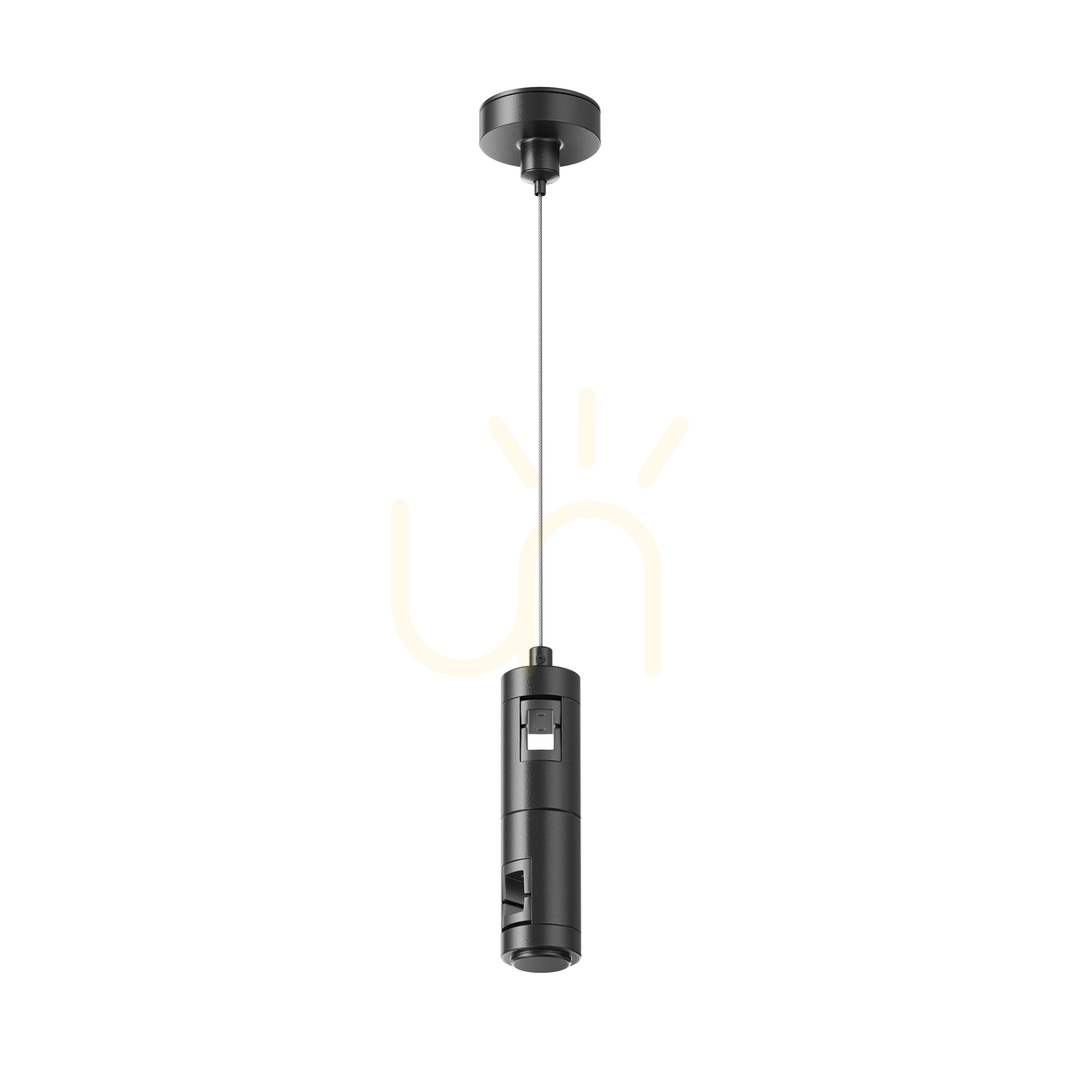

A double cable suspension for the FLARITY magnetic track, in black aluminium. The cables pay out to 314.5 cm, and the component works on a 24 V DC circuit.
What this part does in the system

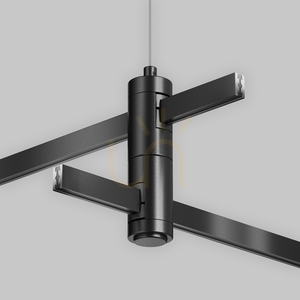

FLARITY is a modular low-voltage magnetic system: instead of individual fittings you install a track, and the luminaires clip to it magnetically and slide anywhere along it. The track can be recessed into the ceiling, surface-mounted, or — and this is what this product is for — **suspended below the ceiling on cables**. A double suspension holds one end of the track on two cables, so the track hangs stably and cannot rotate about its own axis. Suspending a run of track normally takes at least two of these, one at each end.
The cables are the supply path
This is not a plain mechanical bracket. In magnetic systems a cable suspension does two jobs — it carries the track and it feeds it **24 V DC** from a driver sited above the ceiling. That is why the part is protection class III: it works only at safe extra-low voltage, on the secondary side of the driver. Suspension height is set by paying out the cables, with a range of up to 314.5 cm, which is enough to drop the track in a room with a very high ceiling, in a loft, or over a multi-level space.
Build and specification
The body is black-painted aluminium, 2.9 cm in diameter and 4.5 cm long — deliberately small so that it does not compete visually with the track itself. The black matches FLARITY tracks and luminaires in the same finish. IP20 protection places it in dry rooms. Maytoni covers its system components with a **five-year warranty**. Net weight 0.18 kg.
Specification
- Type: double cable suspension for a magnetic track
- System: FLARITY — 24 V modular magnetic track system
- Series: Flarity track accessories
- Maximum cable length: 314.5 cm
- Body dimensions: 2.9 cm diameter × 4.5 cm long
- Voltage: 24 V DC
- Protection class: III
- Ingress protection: IP20 (dry rooms)
- Material: aluminium
- Colour: black
- Dimmable: not applicable (a support and supply component)
- Net weight: 0.18 kg / gross: 0.24 kg
- Warranty: 5 years
- Manufacturer code: TRA157SW-D1-B
- EAN: 4099776104469
