Microwave Motion Sensor Wall Mounted Flush Mounted White 1200W/300W V-TAC VT-8084.

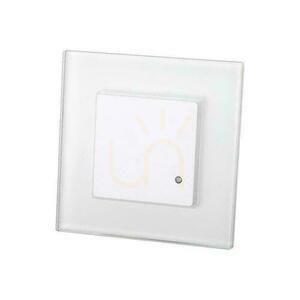

V-TAC VT-8084 flush-mounted microwave sensor

V-TAC VT-8084, SKU 15021, is a white microwave motion sensor designed for recessed installation in a wall box. Its 95 x 95 mm front and 50 mm depth make it possible to integrate the control neatly into a wall installation rather than add a prominent external device. The housing combines plastic and glass, while the simple white finish suits an understated technical fit-out.

Motion and light-level control

The sensor detects motion across a 180° angle and offers an adjustable detection distance from 5 to 15 m. Once activity is detected, it controls the connected lighting circuit; the switch-off delay can be set from 10 seconds to 12 minutes. Separate SENS and LUX controls help tailor the response to the installation point.

• SUN mode for operation regardless of ambient brightness,
• a light threshold adjustable from below 3 to 2000 lx,
• twilight activation below 3 lx when that setting is selected,
• an ON/OFF/AUTO switch for direct operating-mode selection.

Electrical specification

VT-8084 accepts 220–240 V input at 50/60 Hz. It can control a maximum load of 300 W with LED light sources or 1200 W with traditional light sources. Its IP20 rating should be considered when choosing the installation location. Isolate the supply before connection and have electrical work completed by a suitably qualified installer.

A compact control point

The recessed format is useful where tidy lighting control is preferred over a surface-mounted accessory. Adjustable range, timing and brightness threshold let the sensor be configured for circulation routes, corridors, utility rooms, access areas or technical back rooms. The manufacturer provides a five-year warranty for this V-TAC model.
