NORLYS HELLVIK 2400GR LED bollard light, 55 cm, 6.9 W, 3000 K, graphite RAL 7016

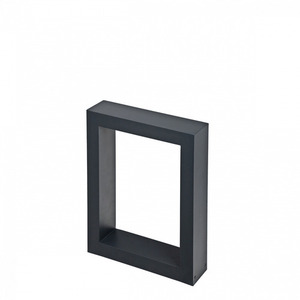

NORLYS HELLVIK 2400GR is a garden bollard light formed as an open rectangular frame. Its powder-coated cast-aluminium body has a graphite RAL 7016 finish. The light source sits beneath the upper section, leaving the centre of the frame open.

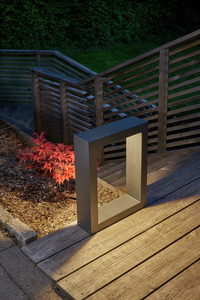

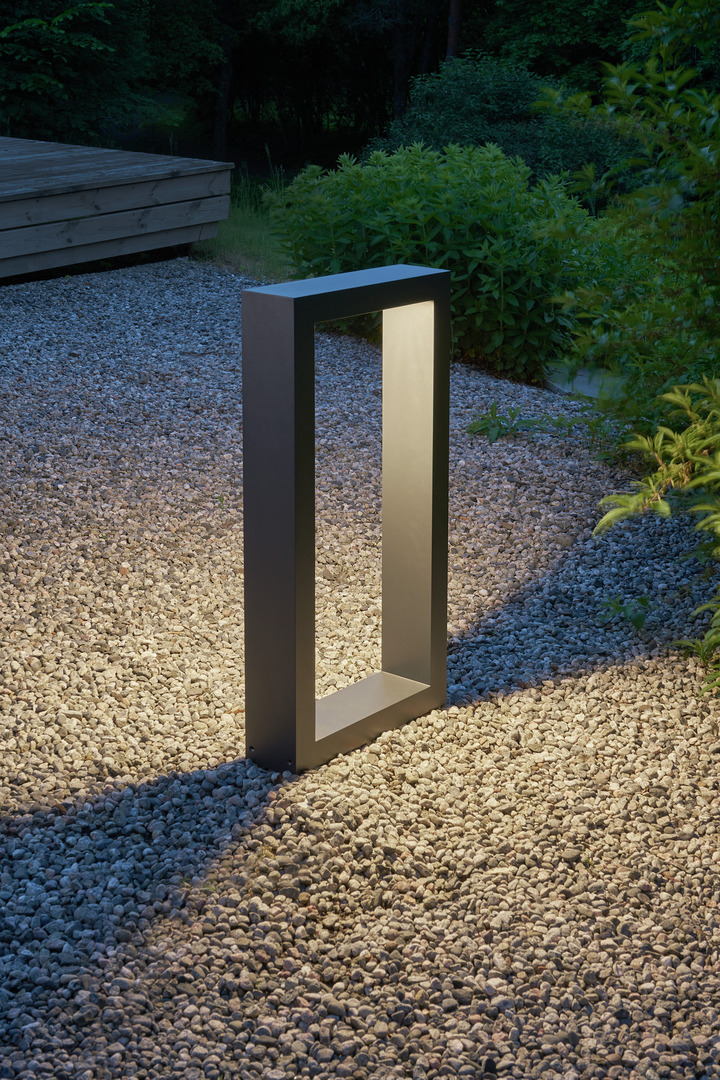

A low frame beside a path

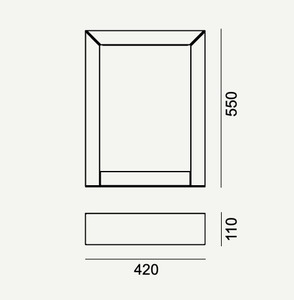

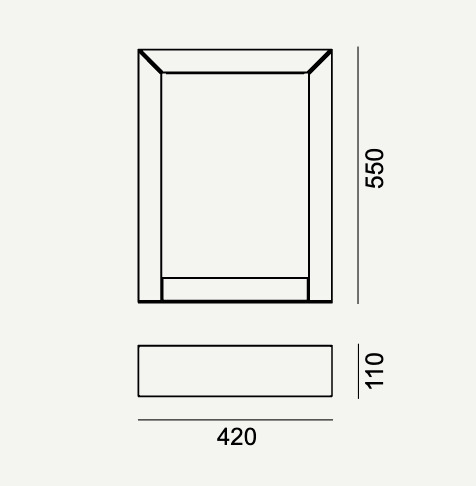

This version measures 55 cm high, 42 cm wide and 11 cm deep. Before choosing its position, compare the frame width with the available strip beside the paving: this is not a narrow cylindrical bollard. Those measurements describe the complete fitting, not the LED module inside it.

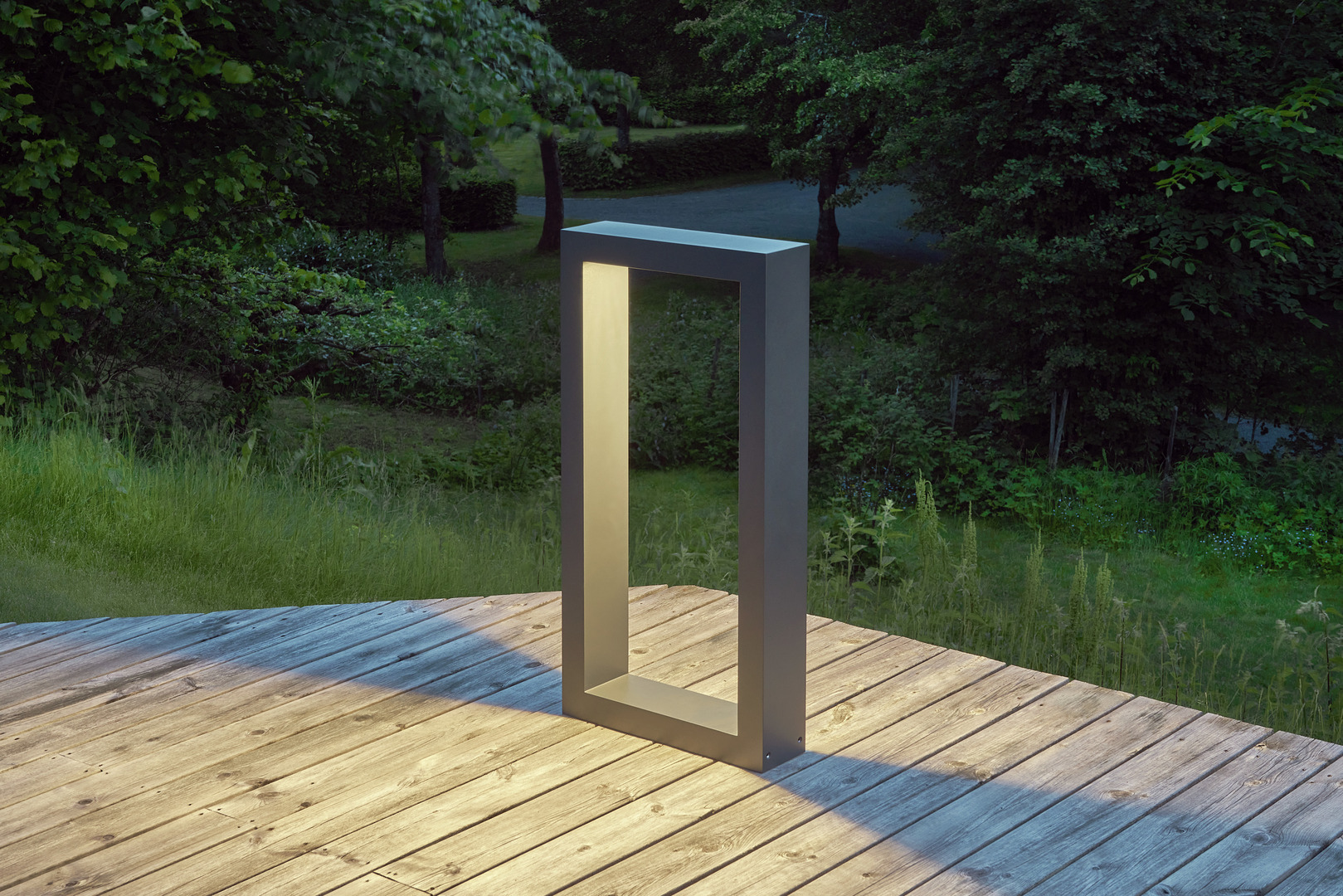

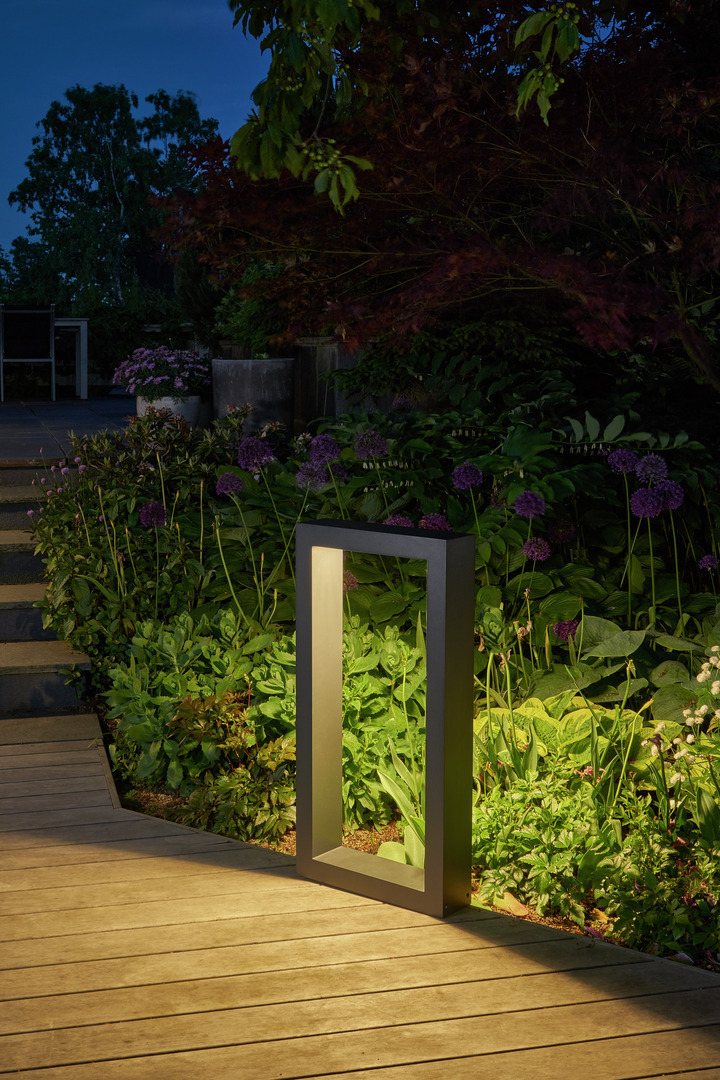

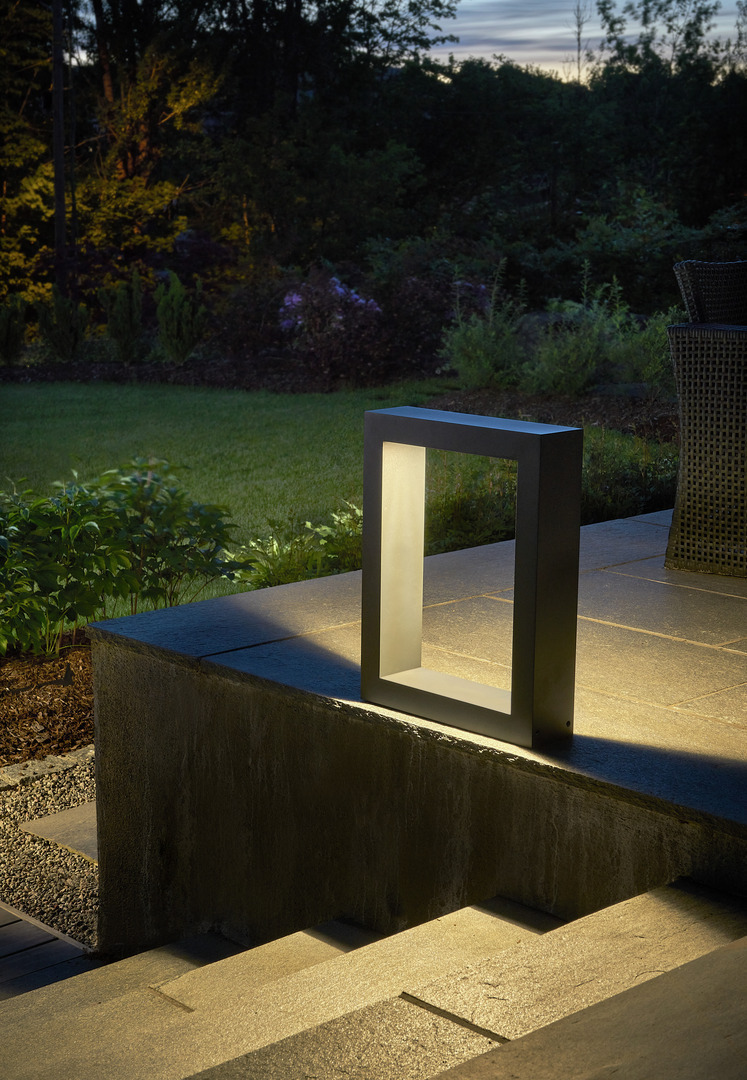

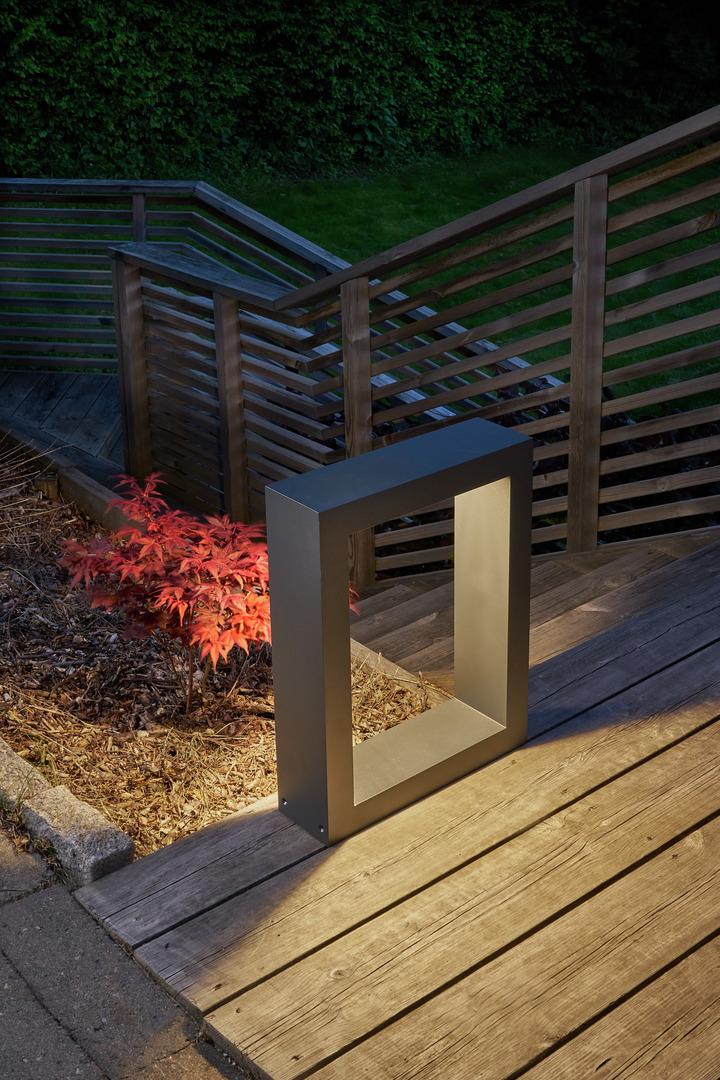

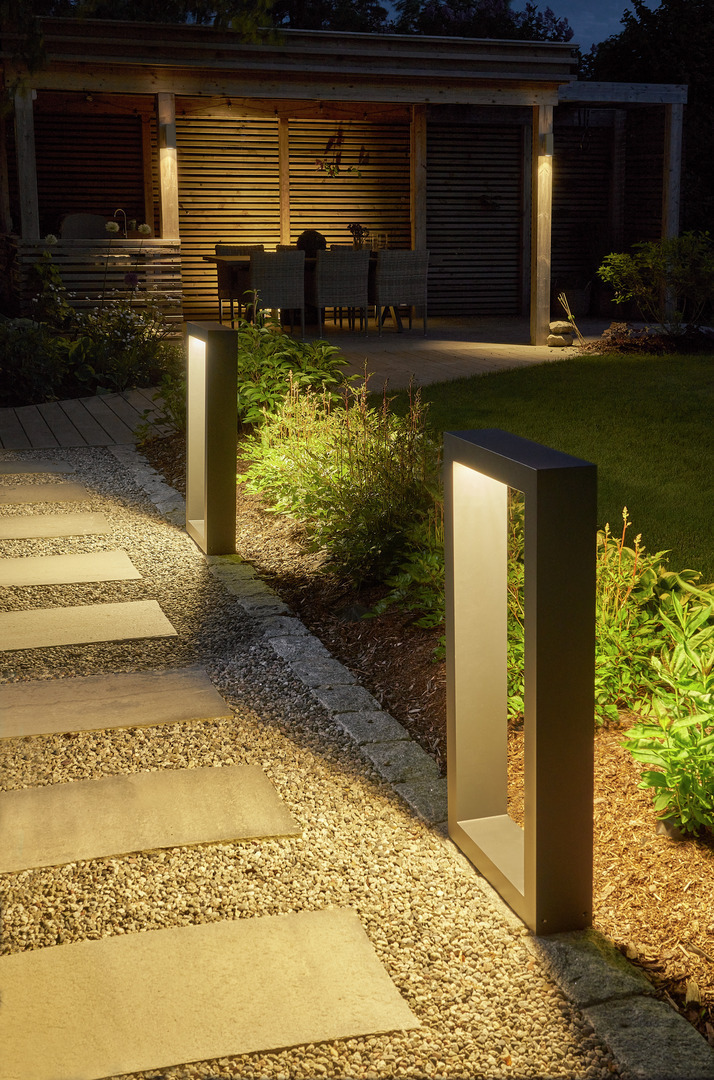

The manufacturer specifies gardens, private grounds and other architectural outdoor applications. The low form can be planned alongside an approach or terrace without introducing a tall lighting column. Keep the fitting outside the clear walking route. Its straight edges and open outline suit modern, modernist and minimalist layouts rather than a traditional lantern scheme.

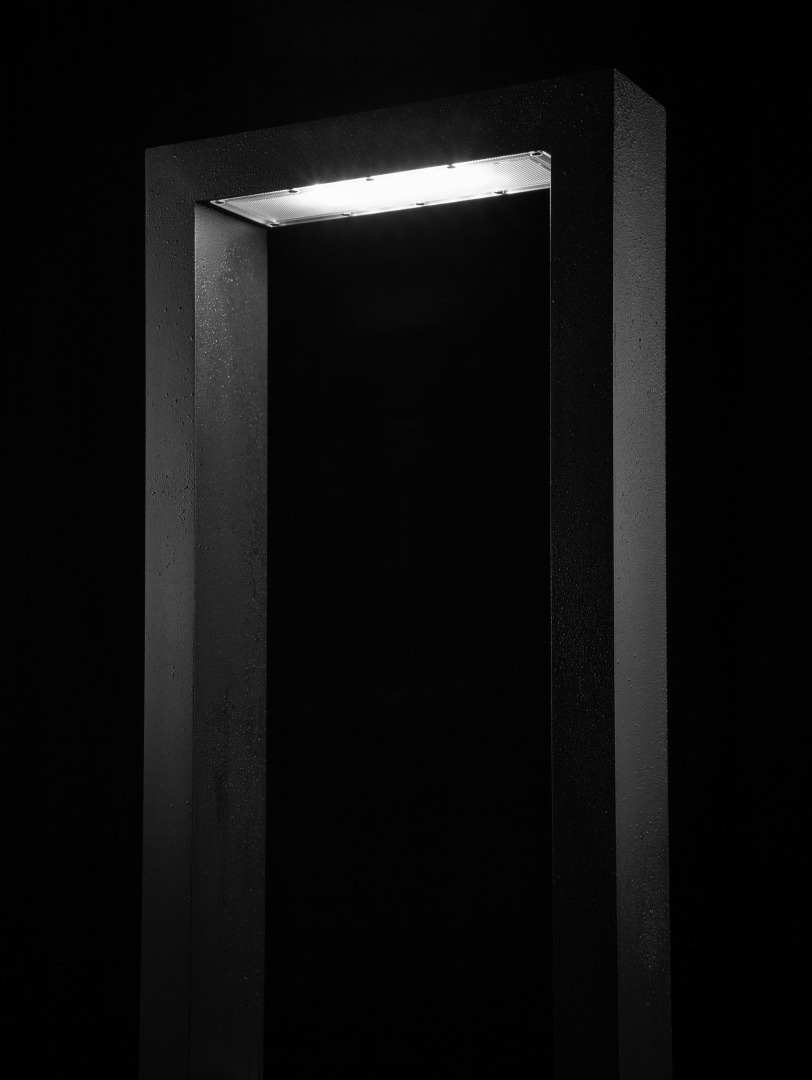

Warm light beneath the top edge

The installed LED module produces warm-white light at 3000 K. The complete luminaire delivers 531 lm; the separate 978 lm figure refers to the light source alone. Total luminaire consumption is 6.9 W. Light is diffuse and shielded from above, so spacing should be planned for the particular area rather than treating the fitting as a directional floodlight.

Dimming uses trailing-edge or leading-edge phase control. Choose compatible control equipment; this is not the DALI version. The transparent, structured polycarbonate diffuser is UV-stabilised, and the seal is silicone.

Anchoring and professional servicing

An anchor for setting into concrete is included. Other accessories, including ground anchor 209 and concrete-foundation adapter 209S, are sold separately. The fitting has IP65 protection, electrical protection class II and a 220–240 V supply.

Installation must be carried out by a qualified person following the instructions. The LED module and control gear are replaceable by a professional service, not through an ordinary user-operated bulb change. Plan the permanent mounting and electrical connection together before installation.
