U-shaped Luna Mag set - 48V surface-mounted magnetic lighting for living room, kitchen and office
The U-shaped Luna Mag magnetic rail system is a ready-made, elegant solution for interiors where the light is not only to shine, but also to organize the space. The 48-volt surface-mounted system allows you to quickly create a graphic line of light delineating three sides of a rectangle - the perfect outline over a corner sofa, dining table, kitchen island or office work zone. With the magnetic adapters, you clip the fixtures in "with a click", move them to any location, add LED lines or spotlights and change the character of the room in seconds without tools and without forging the ceiling.
Key benefits of the U Luna Mag kit
Quick surface mounting - you screw the profiles directly to the ceiling; the 48-volt power supply installs in the profile or soffit.
"U " shape - naturally "closes" the composition over an island, table or corner of the living room, guiding light parallel to the walls. The open edge doesn't overwhelm, and the layout looks lighter than a full rectangle.
Magnetic flexibility - you plug in and rearrange spotlights, light lines and decorative overhangs at any time; modularity allows you to expand the layout with more sections as your arrangement changes.
Low-voltage 48V safety - stable operation, high efficiency and full compatibility with modern control (DALI, 0-10V, Zigbee, Bluetooth Mesh, Smart Home systems).
Architectural aesthetics - slim aluminum profiles in black or white create a clear, geometric light graphic; fit loft, minimal, japanese and modern classic styles.
Time and cost savings - one rail replaces several electrical points; you build light scenes with luminaires, not with more drilling and cans.
What the set includes
-
Magnetic surface-mounted 48 V rails - three straight sections forming a U (usually 2 m + 1 m + 2 m or 1 m + 1 m + 1 m; other length combinations are also available).
-
Two 90° corners - internal connectors provide an aesthetically pleasing, even kink and continuity of power supply at the corners of the system.
-
Flexible connector (optional) - to keep electricity flowing in the rail
-
Power supply 48 V DC - power is selected to the sum of the power of the planned luminaires with a reserve of 15-20%.
-
End caps (2 ×) - a clean finish to the arms of the layout.
On request, we select profile lengths, power supply power, light color and set of luminaires for a specific area and function of the room.
What the U Luna Mag system works with
-
Magnetic spotlights (spots) - precise accent lighting; available angles 15-60°, CRI 90+, colors 3000-6000 K.
-
LED light lines - 300/600/900 mm modules create even general light; great over a table or countertop.
-
Micro-lines and wallwashers - subtle dashes of light to softly "wash" over walls, curtains and textures.
-
Decorative overhangs on a 48-volt adapter - a quick metamorphosis of the dining area without additional boxes.
-
Controls and integrations - DALI/0-10 V dimming, Bluetooth modules.
Where the "U" layout works best

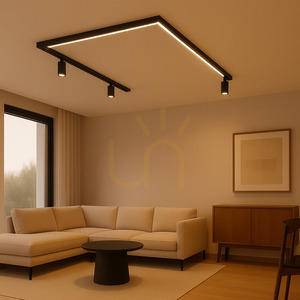

Living room with corner sofa - two longer arms lead light along the walls, while the crossbar illuminates the coffee table and TV zone; spotlights accent paintings and shelves, LED line gives soft fill light.
Dining room and annex - a U-shape organizes the open space: a line over the table + directional spots for the dresser and wall gallery.
Kitchen - the three sides of the rectangle above the U-shaped built-ins give even working light, with no hand shadows on the countertop.
Corridor/hallway - a guiding line of light makes orientation easy, while spotlights punctuate graphics on the walls.
Home office - an axis above the desk supports work, arms illuminate bookcases; easily separate an "island" of concentration.
How to choose the power of the power supply
Add up the power of all the planned modules (e.g.. 2× line 18 W + 4× spot 10 W = 76 W) and add 15-20% supply. In this example, a 90-100 watt power supply is recommended. For long layouts, consider dividing into sections with separate power supplies - this improves voltage stability and allows independent scenes.
Step-by-step installation (surface-mounted)
-
Routing - mark the three sections that form the U; pay attention to parallelism to the walls and equal offset.
-
Places for the studs - choose the spacing according to the substrate (plasterboard more densely, concrete less often).
-
First section - level and screw, leaving space for the corner.
-
Corner 90° - insert into the profile according to the diagram; check the power contacts.
-
Second and third section - connect, tighten screws, check straightness.
-
48 V DC power supply - connect 230 V input (L/N/PE), output to rail according to polarity; make sure wire does not interfere with adapters.
-
Caps - close the free ends of the profiles.
-
Luminaires - plug in magnetic modules, set directions, check light uniformity.
-
Controls - add dimmer, configure "Work", "Dinner", "Relax" scenes.
Parameters and quality standards
-
System voltage: 48 V DC.
-
Mounting: surface mounted (ceiling/wall).
-
Profile material: powder-coated/anodized aluminum.
-
Profile color: black/white.
-
Degree of protection: IP20 for dry interiors.
-
CRI: luminaires CRI ≥ 90 for natural color rendering.
-
Compatibility: 48V Luna Mag modules; DALI/0-10V Bluetooth control.
-
Warranty and support: assistance in selection, light design and system expansion.
Light design - practical recommendations
-
Light color - living room and dining room: 3000-3500 K (cozy but legible); kitchen: 3500-4000 K (better perception of details).
-
Angles of light - accents 15-24° for images and textures; general light 36-60°.
-
Ceiling height - for low interiors, prefer slender linear modules, and place spots slightly angled to avoid harsh shadows.
-
Glare avoidance - bet on lines with milky blends and spotlights with "honeycomb"/lens; direct the beam out of the zone of vision.
-
Scenes - program the minimum: "Entrance" (100% lines, 50% spots), "Work" (lines 80%, spots 80%), "Evening" (lines 30%, accents 40%).
Expansion and service
The system is modular - add a fourth arm to the U-shape, create a rectangle, insert a tee for an additional branch, or convert part of the profile to a recessed or hanging version (on lines). Replacement or cleaning of fixtures is done without tools; clean profile with dry microfiber. If you expand, keep in mind the performance of the power supply and voltage drops over long distances (for large circuits - power supply from two sides).
FAQ - answers to the most common questions
Do ordinary 230 V lamps fit this rail?
No. This is a 48-volt system - luminaires with a 48-volt magnetic adapter are required.
Can I dim the light with this system?
Yes, select luminaires with dimming function and the appropriate controllers/power supplies (Bluetooth).
How do I choose the lengths of the "U" arms?
It is best to match them to the dimensions of the table/sofa/island with an offset of 10-30 cm from the edge of the furniture; this ensures even illumination and a clean drawing.
Is it possible to mount on a suspended ceiling (GK)?
Yes - use studs for GK and denser spacing of fasteners; for longer sections it is worth supporting the profile at the joints.
What if I change the arrangement in the future?
This is the biggest advantage of the system - you can freely rearrange the fixtures, add modules and connectors, without reworking the electrics.
Why 48 V instead of classic 230 V
Low voltage 48 V DC means greater safety of use, less ripple and easier integration with dimming and automation. With a central power supply, you reduce the elements "on the ceilings" - only what you really need is left in the profile: the rail and luminaires. In practice, you get the aesthetics of design systems with the simplicity of surface mounting.
Summary
The U Luna Mag kit is a complete, scalable 48V surface-mount system that combines architectural aesthetics with maximum flexibility. Three arms of rails create a distinctive light pattern, and magnetic fixtures allow you to go from a work scene to a moody evening in a minute. If you want to get consistent, modern lighting without overhauling - choosing a "U" layout will be the best starting point. Choose profile lengths, color and type of luminaires, and we will help you match the power supply and control to your interior.
