SLV NUMINOS Zoom M DALI Three-Phase Track Spotlight 20W 3000K White 1006117

SLV NUMINOS Zoom M DALI 1006117 is a white LED spotlight for a three-phase track system. Its cylindrical aluminium housing has an extending black optical barrel with an angle scale. An adjustable 15°–60° beam lets the same fitting provide a narrow accent or cover a broader section of a display.

Match the beam to the object

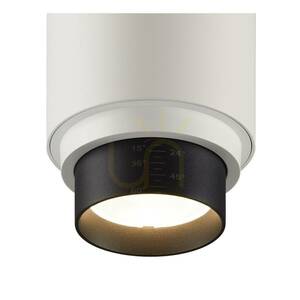

A narrow setting concentrates the light on a detail, while a wider setting covers more of the surrounding surface. The scale on the front barrel identifies the chosen angle. This is useful for changing retail displays or illuminating pictures, where the light footprint needs to follow the size of the object rather than the whole wall.

The head rotates through 350° and tilts through 90°. Aiming and zoom serve different purposes: one determines where the light lands, the other determines the area it covers. Allow for the distance between the track and the subject when planning the layout, rather than choosing the beam angle in isolation.

Warm white with DALI control

This 3000 K version produces warm-white light with a CRI of 90. SLV specifies a luminous flux range of 750–1800 lm at 20 W. That is a range, not a fixed output to assume at every zoom position, so comparisons with other spotlights should account for the intended distribution. The colour temperature is not switchable on this version.

Dimming uses DALI-2. Check that both the track arrangement and the control installation support this method before ordering. A three-phase power supply alone does not provide DALI control, and this fitting should not be confused with the separate trailing-edge dimmable version.

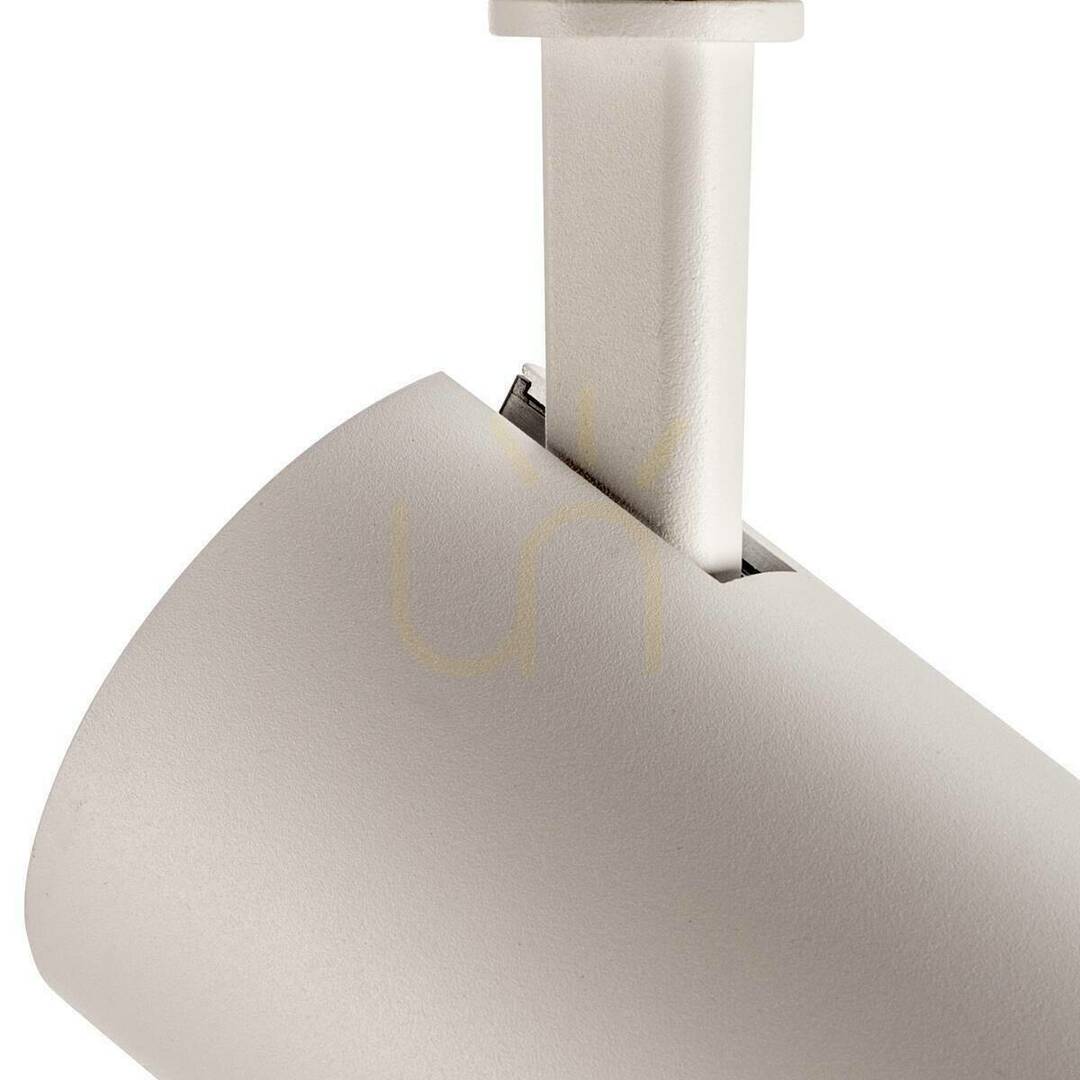

A restrained cylindrical fitting

The spotlight measures 19 cm long, 16.5 cm high and 8.5 cm in diameter. Compare those dimensions with the available clearance and the space needed to aim the head. The white cylinder, short support and contrasting optical barrel suit modern, minimalist schemes where the fitting directs attention towards the illuminated object rather than acting as a decorative shade.
