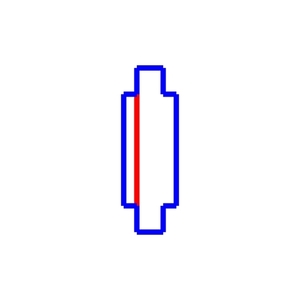

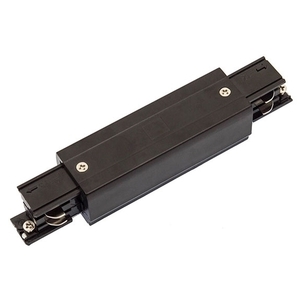

SpectrumLED SPS 2 WOJ+05176 is a black inline feed for a lighting track system. Its elongated body and connection ends on both sides distinguish it from an end feed. This is an installation component, not a light fitting or a complete length of track.
Matching the track layout
The manufacturer assigns this component to the SPS 2 family for surface-mounted or suspended installations. When planning the connection, check that the remaining parts are compatible with the system and that the track profile and earth line are correctly aligned. The linked manual covers a three-circuit track system; its system load ratings should not be treated as separate ratings for this accessory without checking the documentation.
The black aluminium housing measures 32 × 35.5 × 100 mm. Compare these dimensions with the space allocated to the connection. Its plain rectangular shape visually follows the track rather than acting as a decorative luminaire.
A single power connection
The manufacturer's manual requires the system to be supplied at only one connection point. An inline construction does not permit power to be supplied from several locations. All electrical feed connections must form part of a fixed installation, carried out by an authorised installer.
This component is for indoor use only. The manual specifies dry, dust-free spaces, so it must not be selected for an outdoor installation. Do not force adapters into place; their orientation must match the track profile before the parts are connected.
