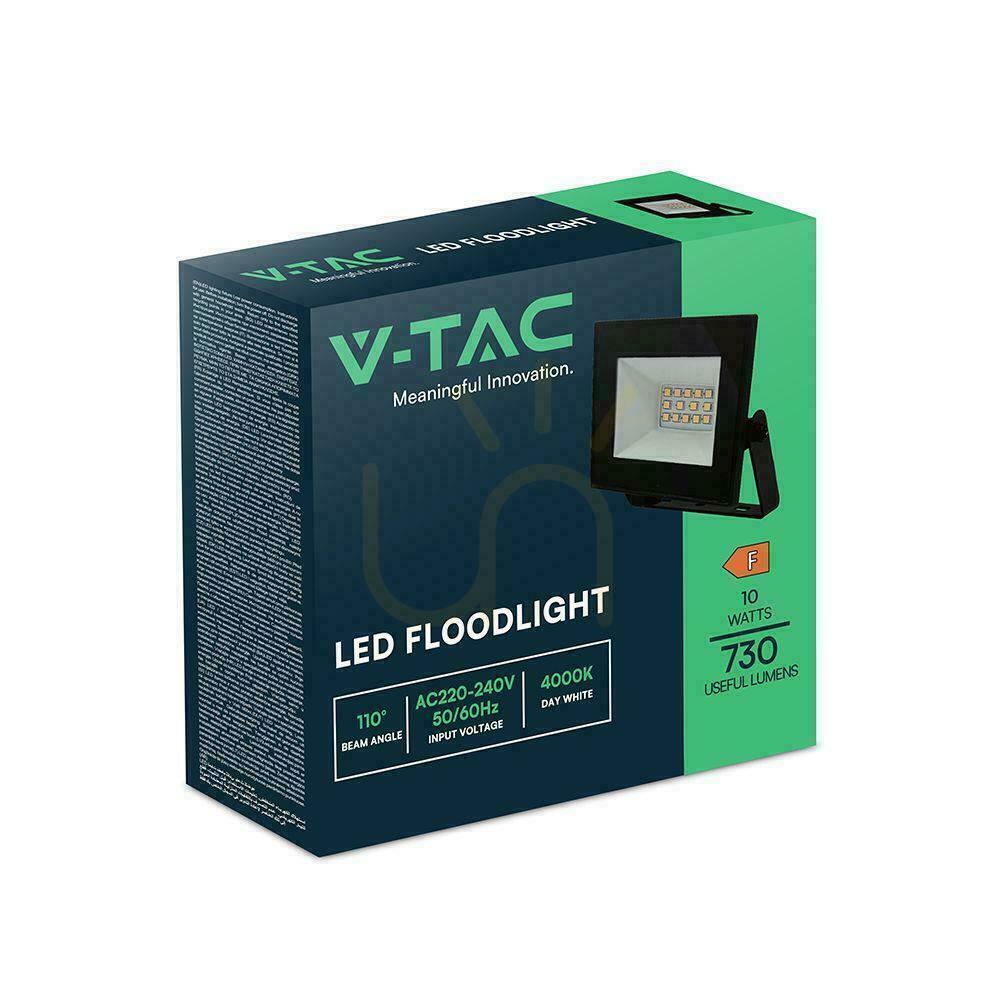

VT-44012 LED floodlight 10W 730lm 4000K IP65 black V-TAC

VT-44012 is a flat LED floodlight measuring 96 × 90 × 25 mm — about the size of a hand and the thickness of two fingers. A black aluminium body is closed by toughened glass, behind which twelve SMD diodes sit on a white board. A U-shaped bracket bolts to the body.

IP65 means rain is not a problem

An IP65 rating means fully dust-tight and resistant to water jets from any direction — the floodlight can go on a façade, over a garage entrance, under an eave, or be aimed at a wall and left there all year. The U-bracket lets you swing the fitting vertically and lock the angle with a wing screw, so the beam can be set on a gate, a path or a wall after mounting.

10 W, 730 lm and a wide 110° beam

Ten watts give 730 lumens at 4000 K, neutral white — a distinctly white light in which house numbers, signs and keys read clearly. The 110° angle is wide: this is not a spotlight but a fitting that covers the whole surface in front of it. It suits an entrance, a terrace, a single-car driveway, a porch or a small workshop; lighting a whole yard calls for a higher-output model from the same family.

Figures from the EPREL registry

The model is registered in the EU EPREL database under number 2323887, so its declared figures can be checked at source: 730 lm, 10 W, 4000 K, CRI 80, 110° beam, energy class F, colour consistency SDCM 6 and no dimming capability. The fitting will not work with a dimmer — a dimmed circuit needs a different model. Supply is ordinary 220–240 V with no separate driver; the connection includes a protective earth and the luminaire is protection class I.

Specification

• Manufacturer and model: V-TAC VT-44012, article no. 23972
• Type: LED floodlight with mounting bracket
• 10 W, 730 lm
• 4000 K neutral white, CRI 80
• Beam angle 110°
• Chromaticity SDCM 6
• Dimmable: no
• IP65 — suitable for outdoor use
• Dimensions 96 × 90 × 25 mm (H × W × D)
• Weight 0.13 kg
• Supply AC 220–240 V, 50/60 Hz
• Energy efficiency class: F
• EPREL registration: 2323887
• Material: aluminium, glass front
• Colour: black
• CE, EMC, RoHS
• Manufacturer's warranty: 2 years
• EAN 3800170240384
