A system part, not a luminaire

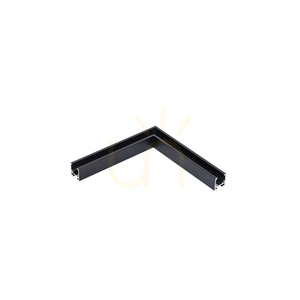

This is not a light fitting but a corner connector for the Zambelis 48 V magnetic track system (2085 series). Its only job is to join two lengths of track at a right angle within the plane of the ceiling — hence "horizontal". It does not light anything itself and does not work without the rest of the system.
What "horizontal" means on a corner
Track systems offer corner connectors in two forms and they are easily confused. The horizontal one, like this, changes the direction of the run within the ceiling plane — it lets a line of light turn a room corner or trace a rectangle over a kitchen island. The vertical (angle) variant would take the track from ceiling onto wall; this model does not do that.
What it fits
The part belongs to the 48 V shallow magnetic system 2085. It works directly with the 2085B-3 profile — a three-metre magnetic track in the same finish. The manufacturer specifies surface or pendant mounting, so the same connector serves a track screwed to the ceiling and one suspended on wires.
Finish and size
The body is aluminium in a colour the manufacturer calls sandy black — a black with a fine, sandy texture rather than a smooth gloss. That lets the connector merge into the track profile without throwing point reflections from the fittings mounted on it. It measures 2.9 × 2.6 cm, exactly the section of the shallow 2085 profile — once assembled, the corner is all but invisible as a separate component.
Technical data
The system runs at 48 V safety extra-low voltage, so the track itself is not at mains potential — the driver sits outside it. IP20 confines the whole thing to dry rooms. The permitted ambient range is −35 to +50 °C. Gross weight: 0.2 kg.
Product data
- Manufacturer: Zambelis Lights; code 2085B-C2; EAN 5213010015451
- Type: horizontal corner connector for 48 V magnetic track (2085 system)
- Mounting: surface or pendant
- Dimensions: 2.9 × 2.6 cm
- Material: aluminium; sandy black finish
- System voltage: 48 V; IP20; operating temperature −35…+50 °C
- Compatible profile: 2085B-3 (3 m shallow magnetic track, sandy black)
- Gross weight: 0.2 kg
