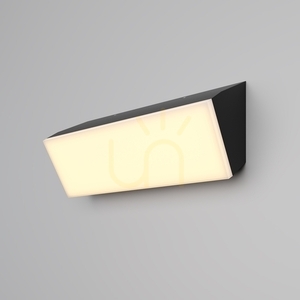

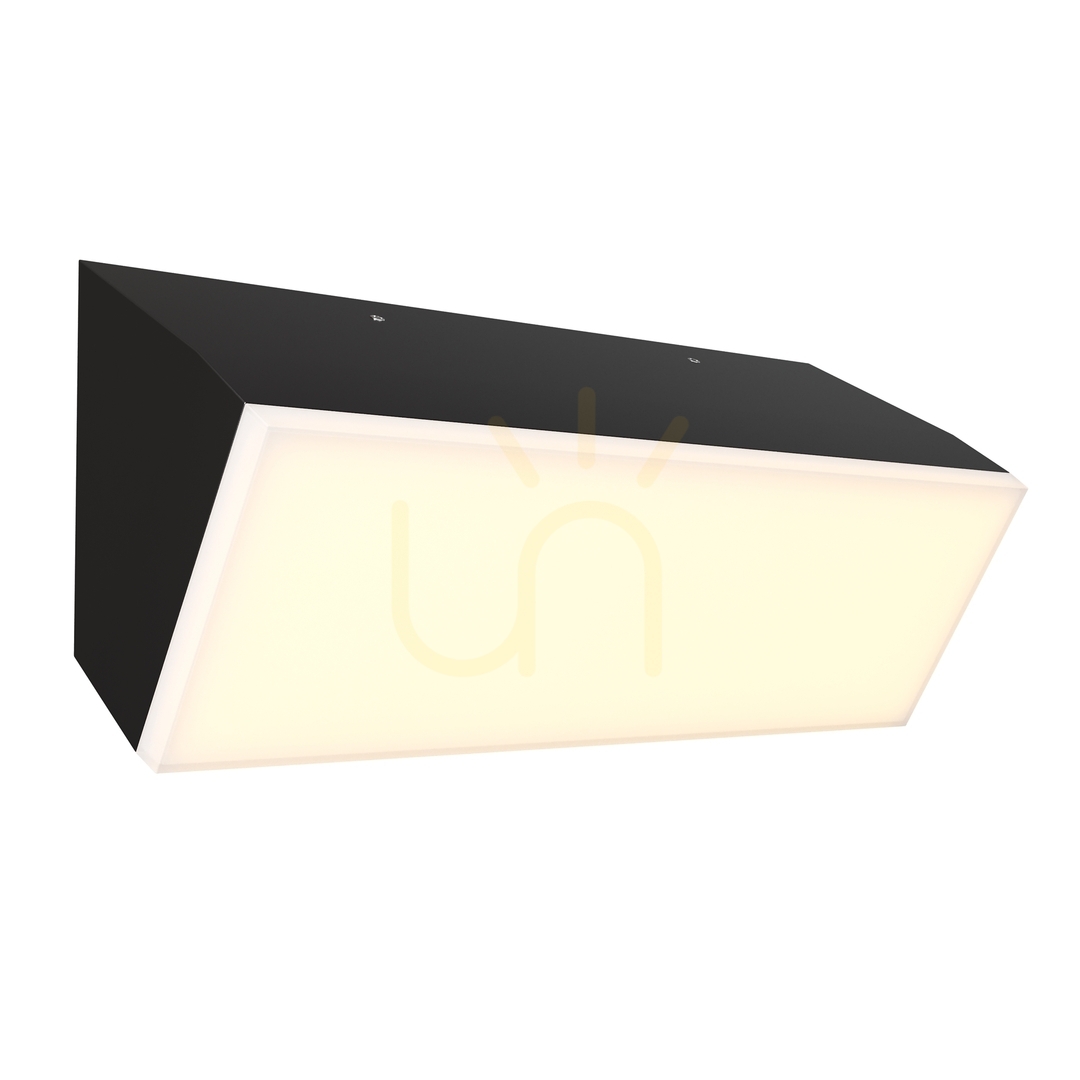

BRICK is a rectangular façade fitting 300 mm long, 100 mm tall and projecting 113 mm from the wall. The name is literal — the shape and proportions match a brick, so the fitting reads as part of the wall rather than as a lamp attached to it.
Horizontal or vertical
The manufacturer allows both orientations: horizontal, to underline the line of a wall or to wash it broadly, and vertical, when the fitting is to mark the edge of an entrance, a pillar or a gatepost. That is one design decision fewer — the same product serves both layouts with no variant to order.
Light
The built-in LED module draws 20 W and delivers 1600 lm at a warm 3000 K, with CRI 80 colour rendering. The beam matters here: 105° is a wide spread meant for lighting surfaces rather than picking out an accent — BRICK lights a stretch of path, driveway or wall instead of drawing a narrow pool on it. The manufacturer rates the series for general lighting, circulation areas and commercial spaces. The fitting is not dimmable. Energy class G.
Durability and installation

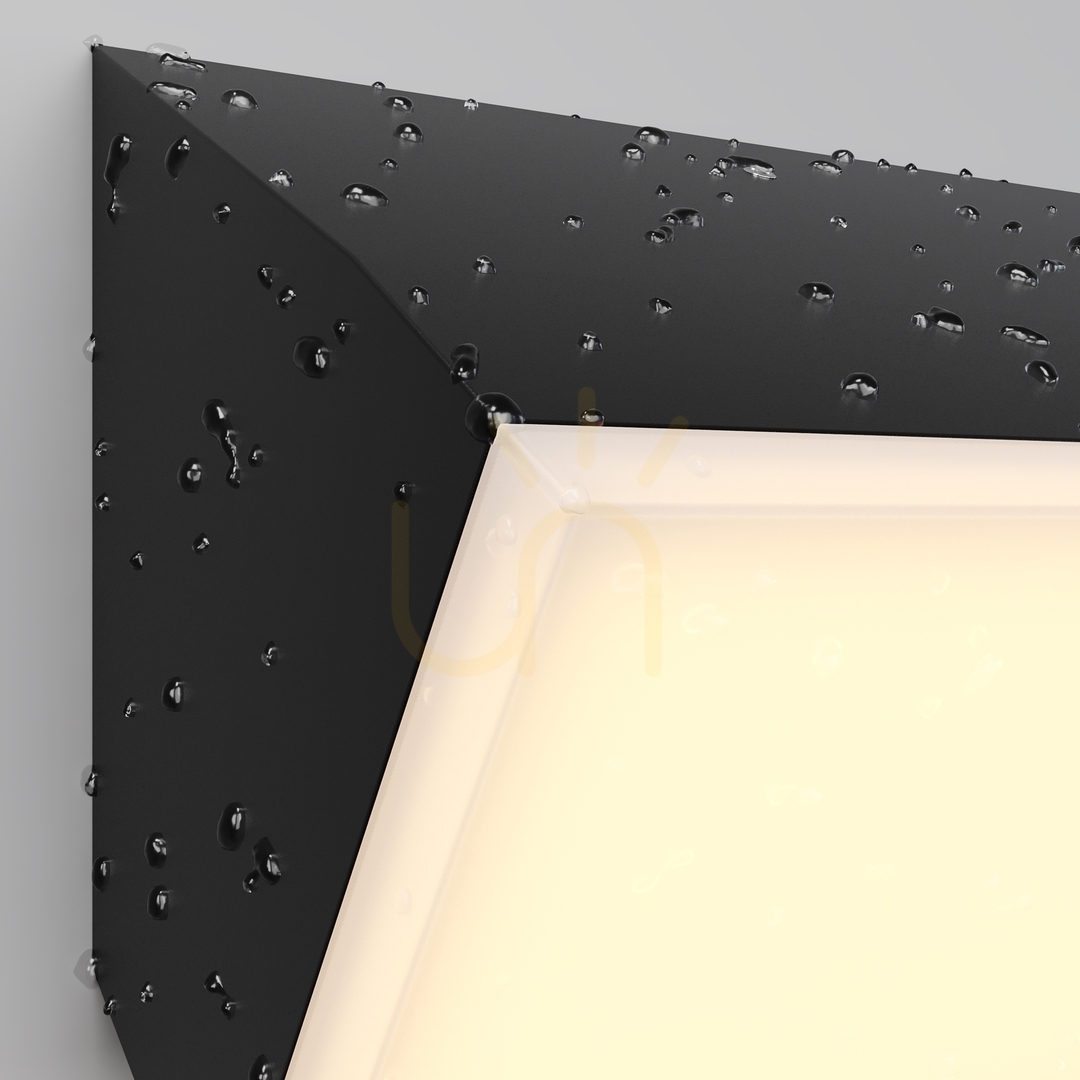

The body is aluminium with plastic elements. IP54 protects against dust and against water splashed from any direction, and an operating range of −40 to +50 °C covers a full year in a Northern European climate. Supply is AC 100–260 V, so a standard 230 V installation is no issue. The luminaire is Class I and requires a protective earth conductor. Net weight 0.88 kg, gross 0.99 kg.
Warranty
Maytoni covers this model with a five-year manufacturer warranty.
Specification
- Manufacturer code: O436WL-L20GF3K
- EAN: 4099776082910
- Series: Brick

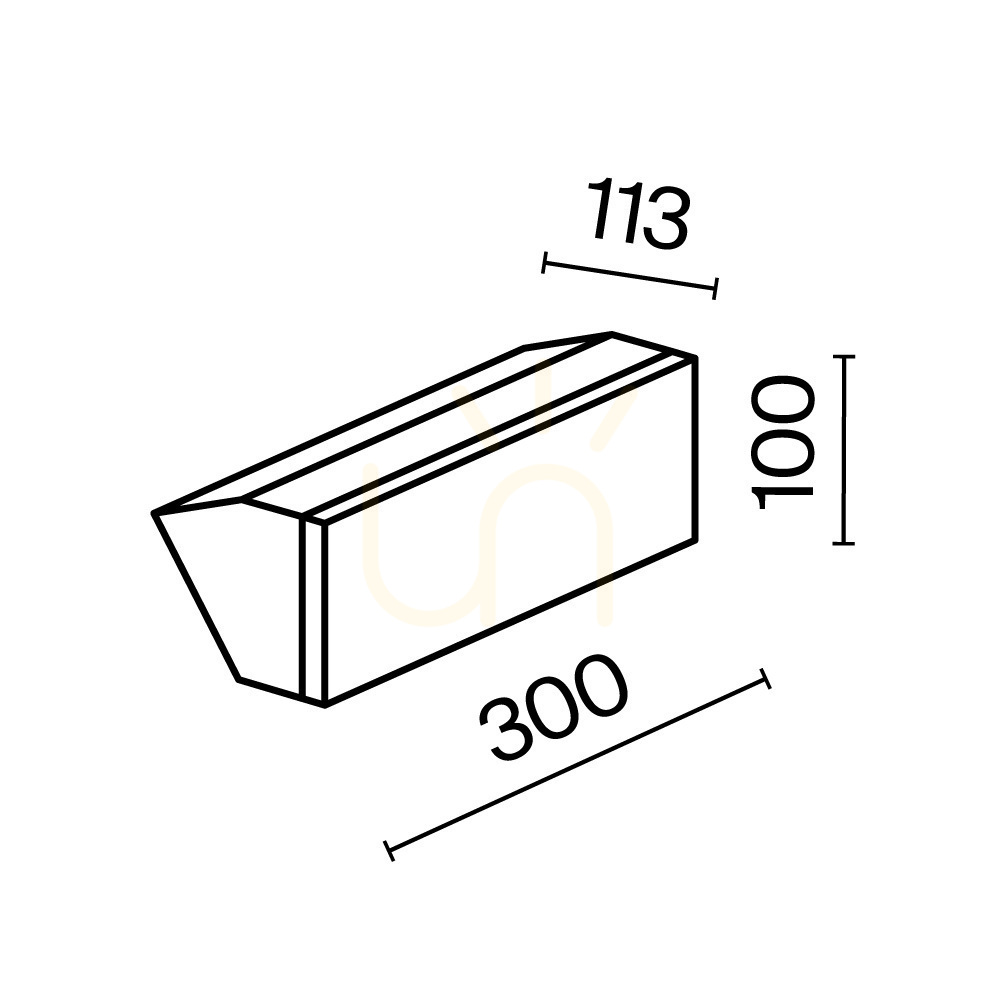

- Dimensions: length 300 mm, height 100 mm, projection 113 mm
- Mounting: surface, horizontal or vertical
- Light source: integrated LED, included
- Power: 20 W
- Luminous flux: 1600 lm
- Colour temperature: 3000 K
- CRI: 80
- Beam angle: 105°
- Dimmable: no
- Voltage: AC 100–260 V
- Ingress protection: IP54
- Protection class: I
- Operating temperature: −40 to +50 °C
- Energy class: G
- Material: aluminium and plastic
- Colour: graphite
- Net weight: 0.88 kg; gross: 0.99 kg
- Warranty: 5 years
