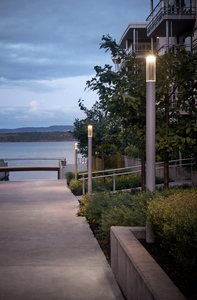

Egersund Park Pro 6113GR is a garden light in the form of a slim 250 cm pole, 120 mm in diameter, finished in graphite (RAL 7016). The body is powder-coated cast aluminium, and the light chamber at the top is closed by a clear PMMA cylinder. The set includes the pole with an inspection door, the light head and a sealed junction box.
What light it gives
The LED module produces 3363 lm, and 2239 lm leaves the fitting at 23.7 W, i.e. 94.5 lm/W. The light is symmetrical and directed downwards — only 1% of the flux escapes upwards (ULOR), so the pole lights the path and lawn around it, not the sky. At 3000 K the light is warm white, with CRI 80.
The driver works on DALI2 with NightDim and leaves the factory set to maximum current. Dimming therefore needs a DALI controller; an ordinary wall dimmer will not work, and other driver settings are programmed by agreement with the maker.
Mounting and wiring
The pole bolts down through three ø9 mm holes set 120° apart on a ø65 mm circle. The concrete-in anchor (6130) and the mounting adapters (6132, 6133) are sold separately. It weighs 13 kg in total, and the parcel is 260 cm long — worth allowing for when taking delivery.
The sealed IP68 box in the pole has terminals up to 5 × 2.5 mm² and lets the supply loop on with cable up to 5 × 1.5 mm²; it accepts round cable of ø8–17 mm. The luminaire is protection class I.
Durability and service
IP65 protects against water jets, the pole is impact-rated IK10 and the light chamber IK05. The operating range is −20 to +45 °C.
The LED module and the driver are replaced only by a professional service (repair kit ZS6113). The L80 lifetime exceeds 102,000 h and the driver's 100,000 h. The plain, minimal form suits parks, gardens and the grounds of hotels and restaurants.
