IR presence and dusk sensor Q HD-2 COM1 DE

Steinel IR Quattro HD-2 24m COM1 Ceiling Sensor IP20 White Product Code 079406

Benefits of using the IR Quattro HD-2 COM1 sensor in building automation

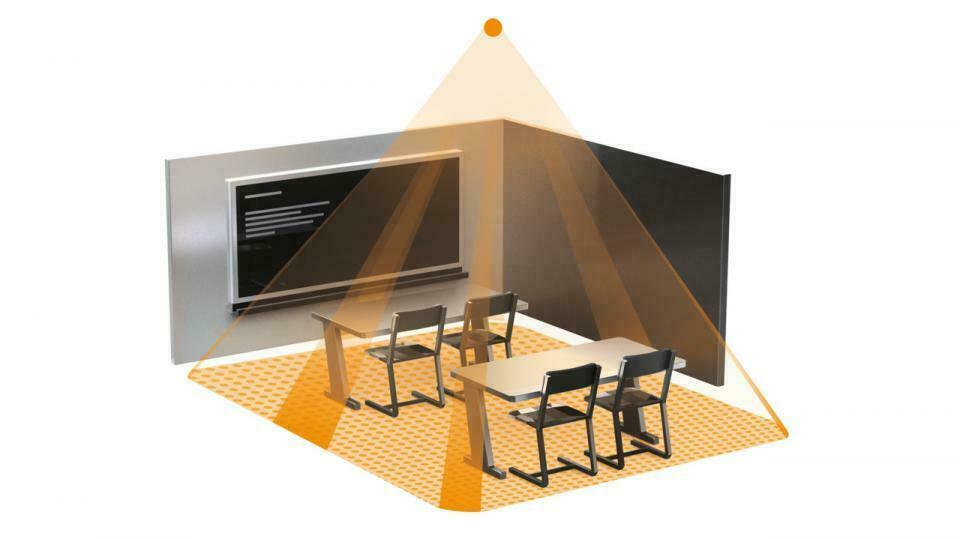

• Largest detection range in Steinel's PIR sensor range - The Quattro HD-2 COM1 IR sensor provides presence detection up to 9 × 9 m (81 m2) and motion detection up to 24 × 24 m (576 m2) in tangent mode, making it ideal for large open plan offices, lecture halls, reception areas, sports halls and warehouses.
• Ceiling mounting with a range of up to 10 m in height - The device can be installed at heights from 2.5 to 10 m, with an optimal mounting height of 2.8 m, allowing for extensive use in a variety of commercial and technical spaces.
• Wireless configuration via Bluetooth Mesh - With a mobile app, potentiometer and Bluetooth Mesh Connect, the sensor enables fast and convenient parameterization, even in distributed installations.
• Pyrometric sensor and 5200 switching zones - High sensitivity detection and the ability to record light, temperature and humidity (in IP, KNX, DALI-2 IPD versions) ensure full environmental control.
• Eco-friendly plastic-free packaging - Sustainably packaged product without the use of plastics, in accordance with Steinel's responsible manufacturing policy.

Quattro HD-2 COM1 IR sensor functions and applications

• 360° presence detection and zone masking
• Operating modes: automatic, semi-automatic, manual ON/OFF, test mode
• Motion sensor, light sensor and TEACH function
• Ceiling mounting for indoor applications
• Ability to group sensors and create lighting scenarios

Technical and logistical data of the product

• Device type: PIR presence sensor with light sensor
• Detection technology: passive infrared + light sensor
• Detection angle: 360°
• Presence range: 9 × 9 m (81 m2)
• Tangential range: 24 × 24 m (576 m2)
• Mounting height: 2.5 - 10 m (optimal: 2.8 m)
• Parameterization: Bluetooth Mesh, app, potentiometer, smartphone
• Power supply: 220-240 V / 50-60 Hz
• Relay output: 1 × 2000 VA
• LED load capacity: < 2 W: 100 W; 2-8 W: 300 W; > 8 W: 600 W
• Fluorescent lamps: without correction: 1000 VA; with series correction: 400 VA; with parallel correction: 1000 VA
• Number of fluorescent lamps supported: up to 8
• TEACH function: yes
• Basic light function: no
• Main light adjustment: no
• Creep protection: yes
• Segment masking: yes (mechanical)
• Electronic adjustment: yes
• Mechanical adjustment: yes
• Interconnection: yes
• Mounting type: ceiling (COM1)
• Protection class: IP20
• Operating temperature: -20°C to +50°C
• Color: white (RAL 9003)
• Housing material: plastic
• Dimensions: 106 × 103 × 103 mm
• Product code: 079406
• EAN: 4007841079406
• Warranty: 5 years
