LED profile LUMINES type APA12 silver anodized 1 m

LUMINES APA12 10-0404-10 is an aluminium LED strip profile with a silver anodised finish. This 1 m section is intended for linear accent lighting within plasterboard construction. Its asymmetric cross-section combines the strip and diffuser channel with an edge incorporated into the finished wall or ceiling surface.

Plan the plasterboard edge detail

APA12 is designed for boards with a nominal thickness of 12 mm. The manufacturer also illustrates a right-angle installation using 12.5 mm plasterboard. The profile fixes at the board edge, with the relevant part of the construction finished by plastering. It should therefore not be treated as a general-purpose strip to screw underneath a cabinet. Allow for the edge detail before the plasterboard construction is closed and its surfaces finished.

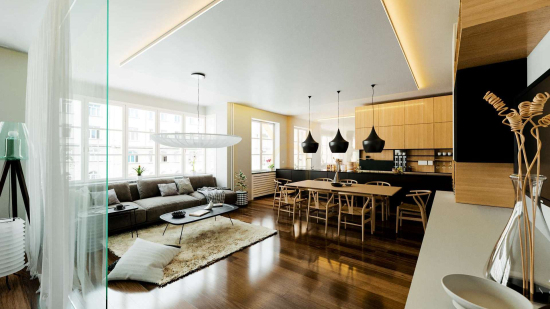

A linear accent can be planned into a living room, bedroom, dining room, kitchen, hallway or office where the wall or ceiling incorporates the appropriate detail. The straight form and flush integration suit modern and minimalist interiors. These applications describe what the profile construction supports, rather than making a claim about the performance of a completed lighting installation.

Check the section and strip width

This variant is 1000 mm long. Its overall cross-section measures 39.4 mm wide and 20.2 mm high; compare these dimensions with the planned construction edge before finishing it. The manufacturer's data sheet specifies LED strips up to 12 mm wide. APA12 identifies the profile system, while article code 10-0404-10 identifies this one-metre silver anodised version.

BASIC diffusers and external power supply

Compatible covers belong to the BASIC range, including transparent, milky and frosted versions. The chosen diffuser and LED strip affect the appearance of the light line. The profile itself determines neither light colour nor luminous flux. The manufacturer places the power supply outside the profile. Assembly diagrams illustrate the system components but do not establish that a strip, diffuser or power supply is included with this section.
