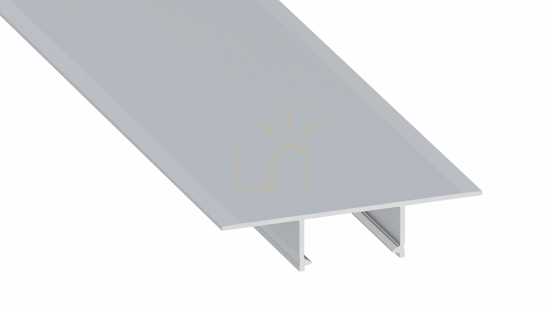

LED profile LUMINES type Plato raw 2 m

Double LED profile for installation between two plasterboards. It allows quick installation with screws and finishing with putty without the need for a mounting grid.

Color varieties:
- raw,
- anodized silver,
- lacquered black (RAL9005),
- lacquered white (RAL9016)

Mounting method:
- recessed between panels

Accessories:
- Double PMMA plastic diffuser - transparent, frosted milky, frosted milky, black
(mounted from the top by pressing)
- Dedicated profile caps in 4 color variations

Profile sold in sections: 1000 mm, 2020 mm, 3000 mm.
It is possible to cut profiles to any size,
maximum 3100 mm - (own collection from the production plant)

Installation instructions for PLATO profile with DOUBLE diffuser recessed between panels using screws

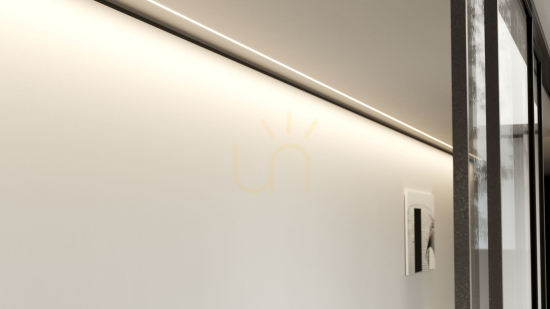

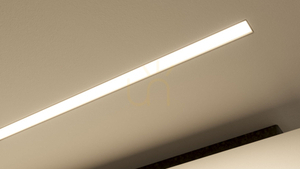

The final result of the assembly of PLATO profile with DOUBLE diffuser recessed between the boards, fixed with screws and then covered with joint compound

Diagram of the assembly of lighting system elements using PLATO profile and (1) DOUBLE diffuser, (2) LED strip, (3) plugs
