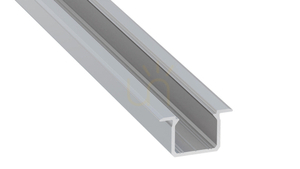

LED profile LUMINES type U raw 1 m

New LED recessed profile with height suitable for standard 12mm plasterboard or furniture board. Allows for quick recessed installation without the necessary finishing with putty.

Color varieties:
- raw,
- anodized silver,
- anodized black
- lacquered white (RAL9016)

Mounting method:
- pressed into a milled hole or with mounting glue

Accessories:
- BASIC PVC plastic diffuser - milky, frosted, transparent
(mounted from the top by pressing)
- PMMA plastic Basic diffuser - transparent, frosted, milky, frosted milky, lens 15, lens 30, black
- PC plastic Basic diffuser - transparent, frosted, milky
- dedicated profile caps in 4 color variants

Additional accessories:
- non-contact switch

Profile sold in sections: 1000 mm, 2020 mm, 3000 mm.
It is possible to cut profiles to any size,
maximum 3100 mm - (own collection from the production plant)

Installation instructions for recessed U profile with BASIC diffuser

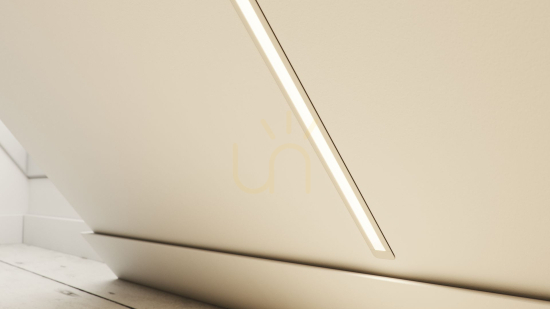

Final result of installation of recessed U profile with BASIC diffuser

Axonometric view before installation of U-profile in 12mm furniture board with BASIC lampshade and side caps

Final result of installation of recessed U-profile with BASIC lampshade in a furniture board

Connection of U-profiles with BASIC lampshade at 90° angle in a furniture board

Schematic of assembling the components of a lighting system using the U-profile and (1) BASIC lampshade, (2) LED strip, (3) end caps
