LUMINES axin recessed LED profile, raw aluminium, 1 m Special Offer

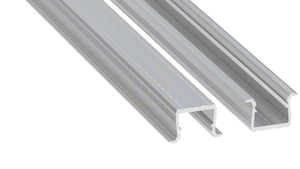

LUMINES axin in the raw finish is an aluminium LED-strip profile designed to be recessed into furniture or an interior fitting. This 1 m length corresponds to manufacturer article 10-1370-10. Narrow side edges frame the opening for the diffuser, creating a straight linear detail rather than a housing projecting beneath the furniture.

Plan the groove around the cross-section

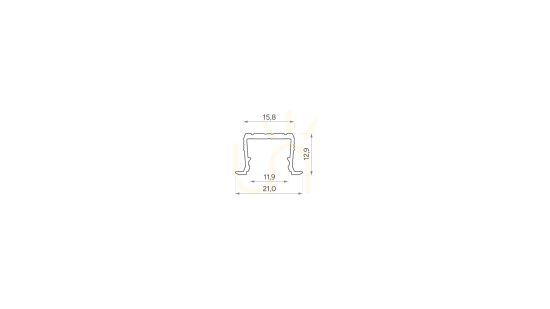

The profile measures 21 mm across its overall width and 12.9 mm in height. The section drawing also gives a body width of 15.8 mm; this is not the same as the total measurement including the side edges. Compare the complete cross-section with the thickness of the material and the space available for the recess before preparing the furniture.

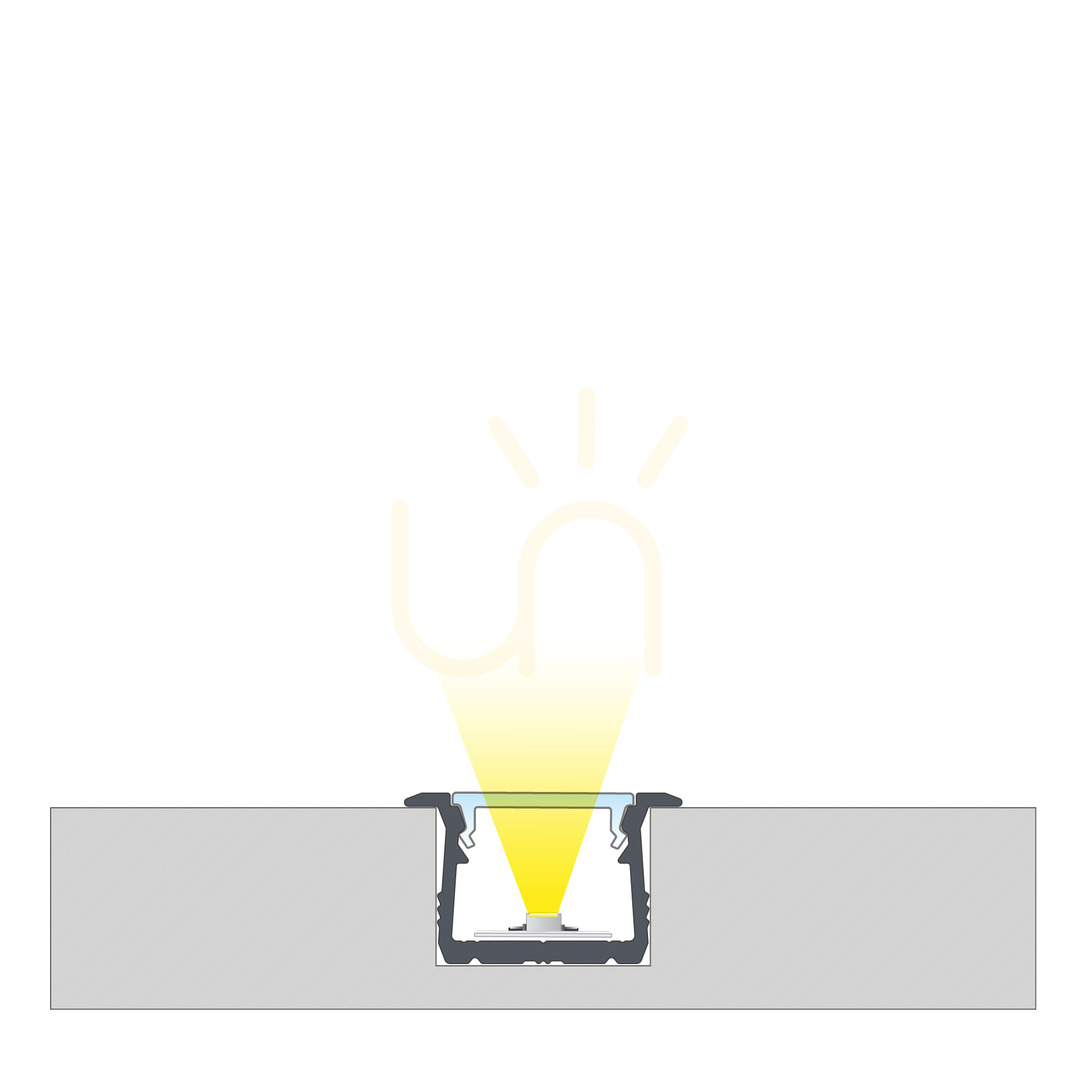

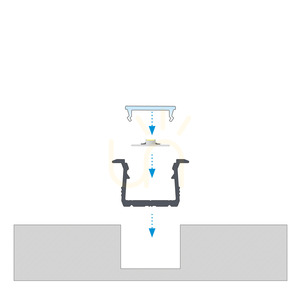

The manufacturer specifies a press-fit installation into a prepared routed groove. This means allowing for a recess within the surface, rather than simply positioning the profile against its underside. The length supplied by this variant is 1000 mm. Other lengths in the axin family are separate variants, not the dimensions of this article.

Choose the strip and nano diffuser together

The product sheet specifies LED strips up to 12 mm wide and nano diffusers. Compatible covers include Fractal Opal, Fractal Clear and black Fractal versions. Selecting the cover is therefore part of the lighting design, alongside choosing the strip. The aluminium profile itself does not determine light colour or brightness: those depend on the light source used.

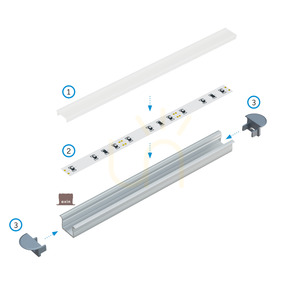

The assembly drawing shows the profile, diffuser, LED strip and end caps with holes as separate components. It does not confirm a package containing every illustrated part. The power supply is positioned outside the profile, so its location needs to be accounted for in the furniture layout.

A restrained detail for furniture lighting

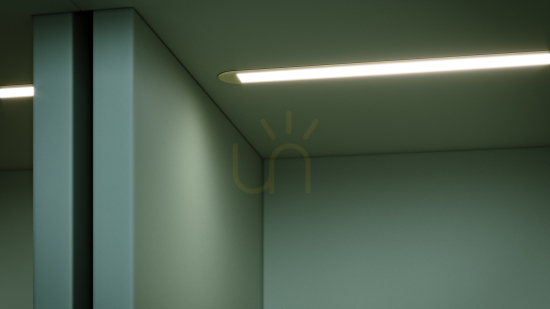

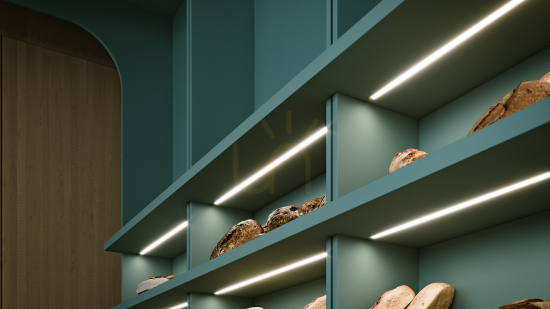

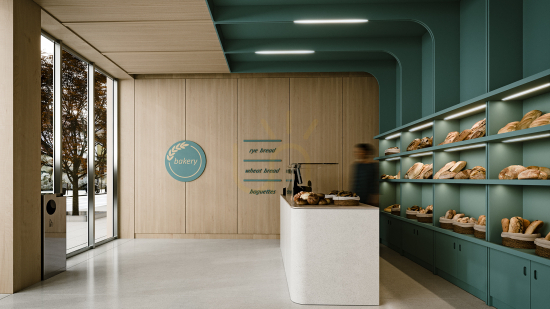

The axin family is intended for decorative lighting in furniture and interior details. Its recessed construction can be incorporated when planning LED lines in shelves, cabinets or kitchen furniture. The straight section and narrow framing suit modern and minimalist designs. This article has a raw aluminium finish, not the silver-anodised finish or a painted coating.
