The black lacquered LUMINES LARGO M4 is a mounting profile for ceiling-mounted linear lighting systems. This version is 1 m long and has manufacturer code 10-0445-10. Its wide side sections distinguish it from the profile that carries the LED strips: M4 provides the structural mounting part within the ceiling assembly.
Working with LARGO and inLARGO

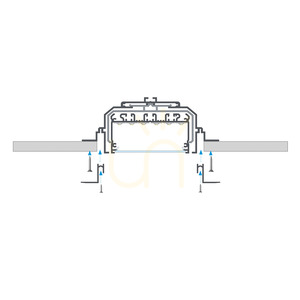

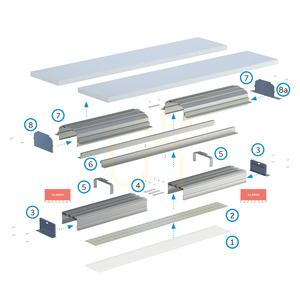

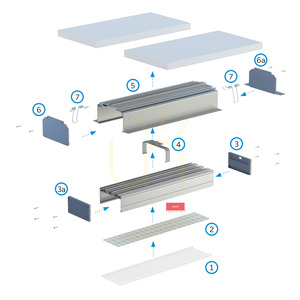

The manufacturer's installation drawings show LARGO M4 used with both LARGO and inLARGO profiles. Installation between ceiling panels uses mounting screws and the ROSET auxiliary profile. The drawings also identify a LARGO inter-profile connector linking parts of the system. When specifying an installation, distinguish this M4 mounting section from the light-bearing profile and choose the components for the intended arrangement.
The drawings additionally show a SUPER WIDE diffuser, LED strips and end caps. These are assembly illustrations, not a list of items supplied with this individual profile. They should not be read as a photograph of a complete, equipped luminaire or as confirmation that the illustrated components are included.
Allowing space in the ceiling

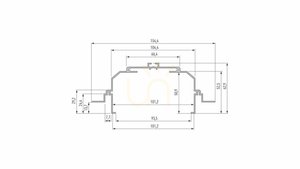

The overall cross-section measures 154.4 mm wide and 62.9 mm high. These dimensions apply to LARGO M4 itself, rather than the complete assembled fitting. Compare them with the space reserved in the ceiling and the cross-section of the selected LARGO or inLARGO configuration before planning the installation. The stated width includes the side mounting sections, not just the central space for the light-bearing profile.
The black lacquered finish can be matched to the other parts of the assembly. This mounting profile does not determine brightness or light colour; those depend on the lighting components selected for the system.
