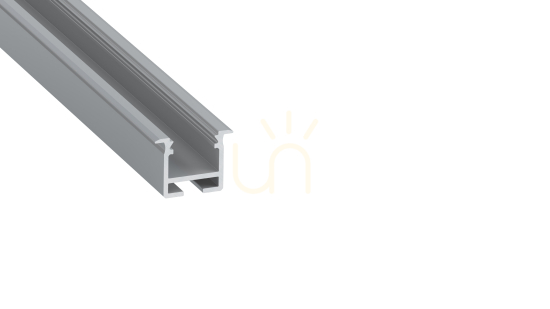

Recessed version of the FLEXA system. Allows the creation of smooth, continuous lines of light, flush with the surface of the ceiling or wall, including curved sections. The system supports connectors, allowing the creation of complex lighting systems, and is particularly well suited for the realization of light arcs in walls and on columns.
Table of minimum bending radii of LUMINES profiles
Type of bending Direction of illumination (position of the lampshade in the luminaire) FLEX diffuser PMMA/PC diffuser horizontal (transverse) downward 475 - vertical inward 350 350 vertical (upright) outward 150 150Minimum bending radii in mm for a given lampshade. The maximum diameter of the circle is 1850 mm (from a 6 m profile).
Tolerance: +/- 5%. Technology tips: 250 mm. The bent profiles are available in lacquered version only.
Bending service available by contacting customer service in advance.
Comparison of inFLEXA profile bent horizontally with inFLEXA profile bent vertically (light direction: inward)
Schematic of the assembly of lighting system components using inFLEXA profile bent vertically (light direction: inward), BASIC lampshade, LED strip and end caps
Assembly instructions for inFLEXA recessed profile with BASIC diffuser

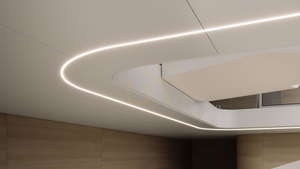

Final result of installation of inFLEXA recessed profile with BASIC diffuser
